DESCRIPTION OF PRODUCT PARTS
Check the delivery parts

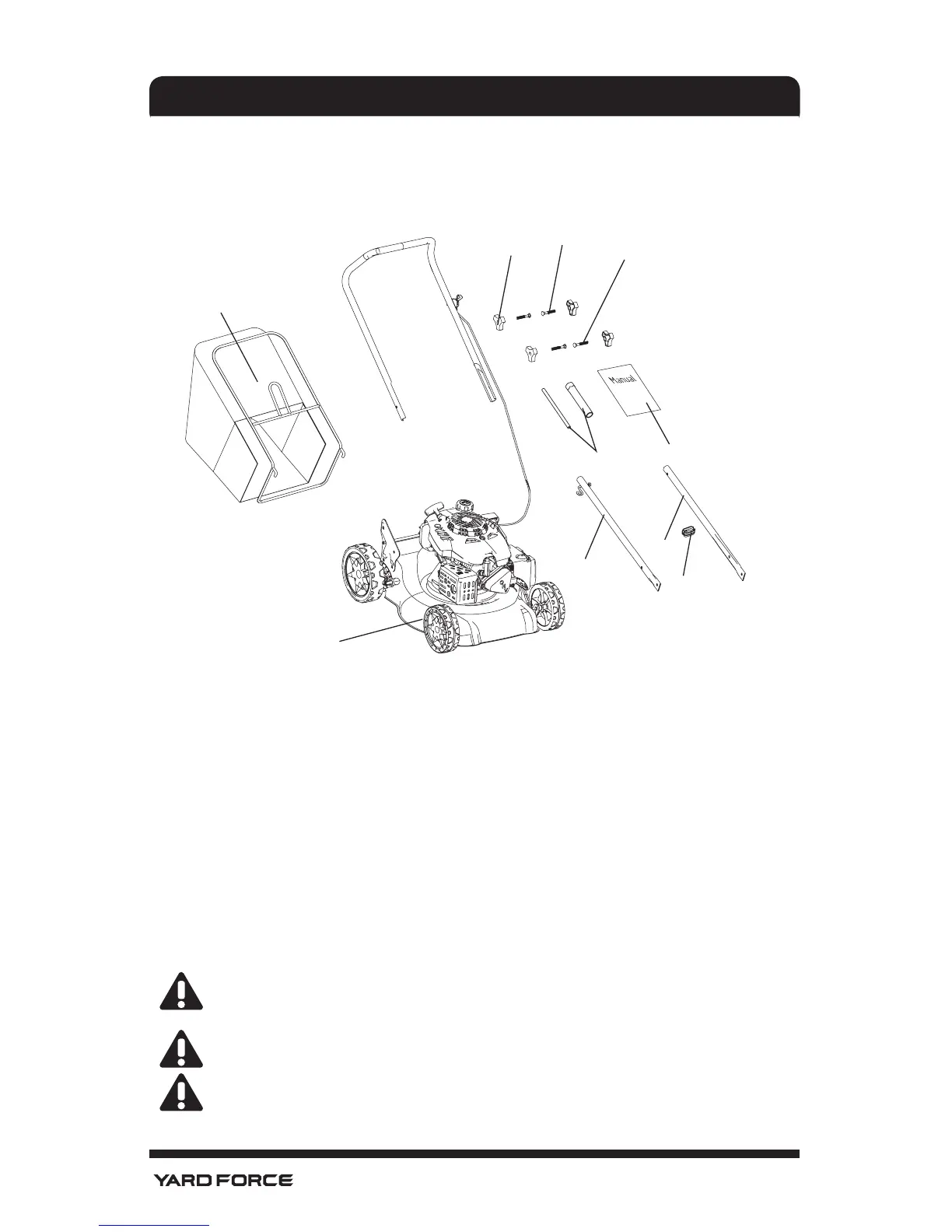

As shown in Fig 2
Carefully remove the machine from its packaging and check as the following parts are
complete:
Fig. 2
B
A
C
D
J
E
I
F
G
H
A. Main mower deck (with upper handle) 1pc
B. Grass bag assembly 1pc
C. Star xing knob with M8 nut 4pcs
D. Cup head square neck bolts M8X45 2pcs
E. spark plug spanner 1set
F. Lower handle with rope guide 1pc
G. Lower handle 1pc
H. Cable clip 1pc
I. Manual 1pc
J. Arc-head blot M8X35
WARNING: If any parts are damaged or missing, do not operate this tool until the
missing parts are replaced. Failure to heed this warning could result in serious
personal injury.
NOTE! Always recycle the packaging in accordance with local recycling schemes.
WARNING! This item requires a two person lift to remove from the packaging.
Make sure that you have sufcient space to put the lawn mower down. Keep your
feet apart so that you have a stable position, bend at the knees and keep your
back straight.
