10
Hotline: 1-866-902-9690

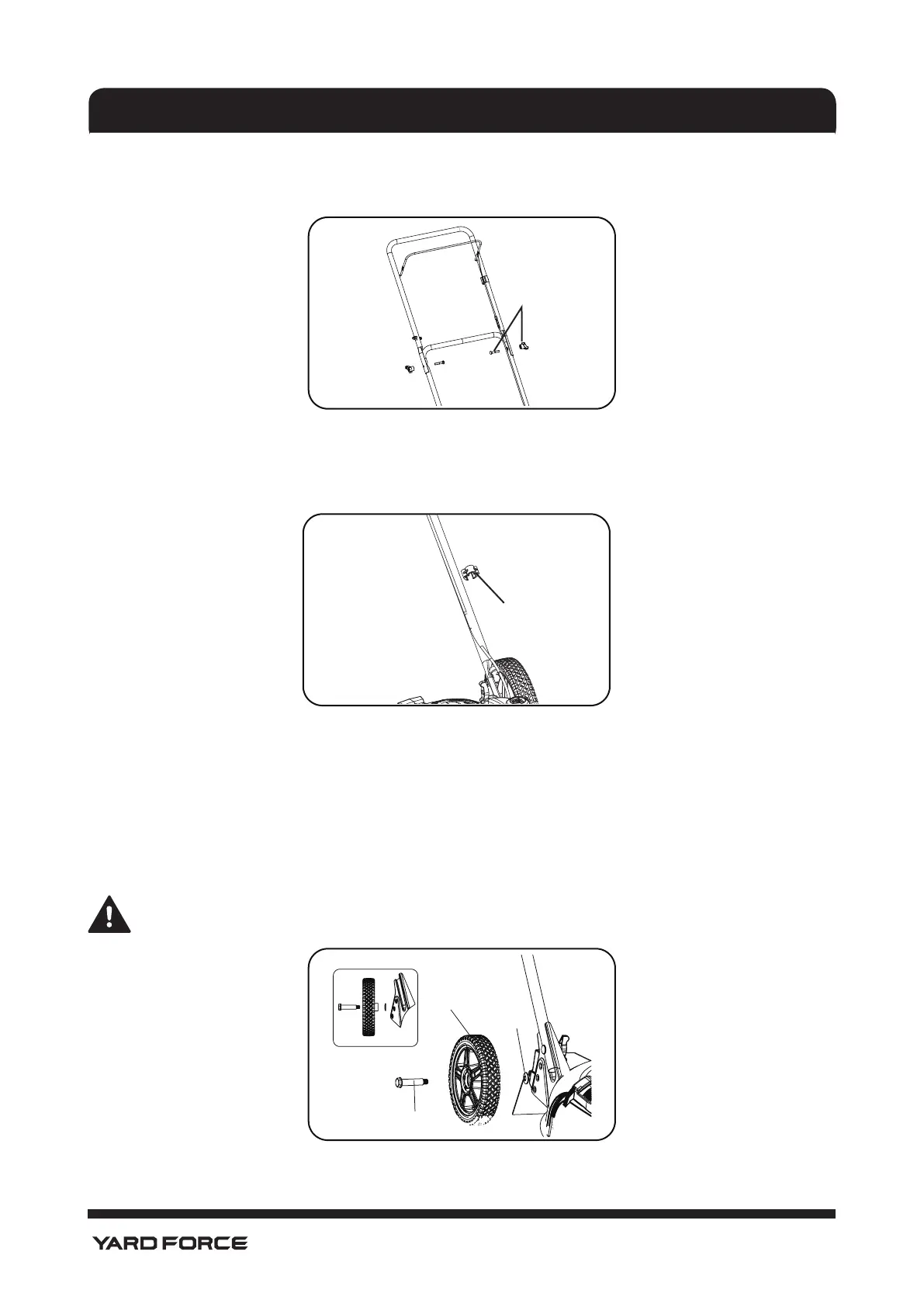

4. Place the upper handle in position over the lower handle, keeping the engine on/off control bar facing
up.
5. Secure the upper handle to the lower handle using the the handle knob and bolt (supplied) see Fig. 4.
TYING DOWN THE BOWDEN CABLE
As shown in Fig. 5
Attach the bowden cable to the handle with the cord clip (supplied).
ASSEMBLING THE WHEELS
1. Use the shoulder screw, washer and the wrench (supplied) to attach the wheels to the deck.
2. The holes in the deck provide three cutting heights. Use equivalent holes to attach all four wheels (i.e.,
for the lowest cutting position, attach each wheel to the highest hole on the deck). Refer to the Cutting
Height Adjustment section for more information.
3. Secure each wheel to the deck as shown in Fig. 6. The chassis has a threaded hole for connecting the
shoulder screws.
NOTE: The cupped side of each washer should be pressed against the deck.
ASSEMBLY
Fig. 4
Fig.5
clip
Handle knob and
bolt
wheel
Fig.6
washer
should screw
