Hotline: 1-866-902-9690 Hotline: 1-866-902-9690
KNOW YOUR LAWN MOWER
PARTS LIST

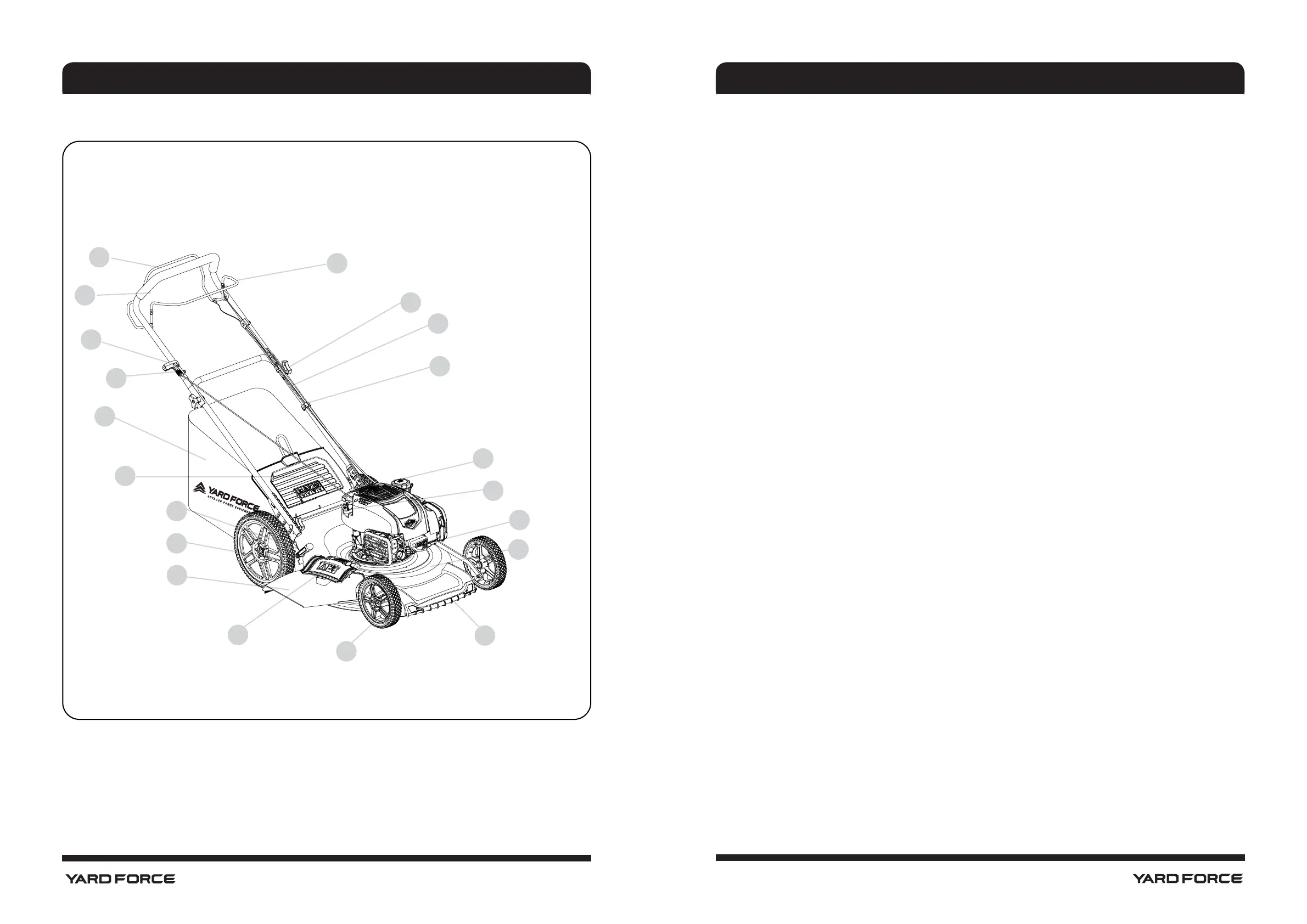

Fig. 1
1 Self-Propel Drive Control Bar
2 Upper handle
3 Engine Start Rope Handle
4 Rope guide
5 Grass bag
6 Rear Chute Flap
7 Height-adjusting handle
8 Rear wheel
9 Side Discharge Chute (removable)
10 Side discharge cover
11 Front wheel
12 Front bumper
13 Cutting deck
14 Spark plug cover
15 Engine oil cap
16 Fuel tank cap
17 Cord clip
18 Lower handle
19 Handle Knob and Bolt
20 Engine On/Off Control Bar
PARTS LIST
Carefully remove the lawn mower from its packaging and check that the following parts are included:
A. Grass bag with holder 1 pc
B. Handle Knob and Bolt 4 sets
C. Side discharge chute 1 pc
D. Manual 1 pc
E. Main mower deck (with upper handle) 1 pc
F. Cord clip 1 pc
G. Plastic mulching plug (inside the mower) 1 pc
H. Lower handle bar 1 pc
I. Engine Oil (SAE 30 15 o.z.) 1 pc
PARTS LIST
1
2
3
4
5
6
7
8
9
20
17
18
19
16
15
14
13
12
11
10
