10
11
Hotline: 1-866-902-9690 Hotline: 1-866-902-9690

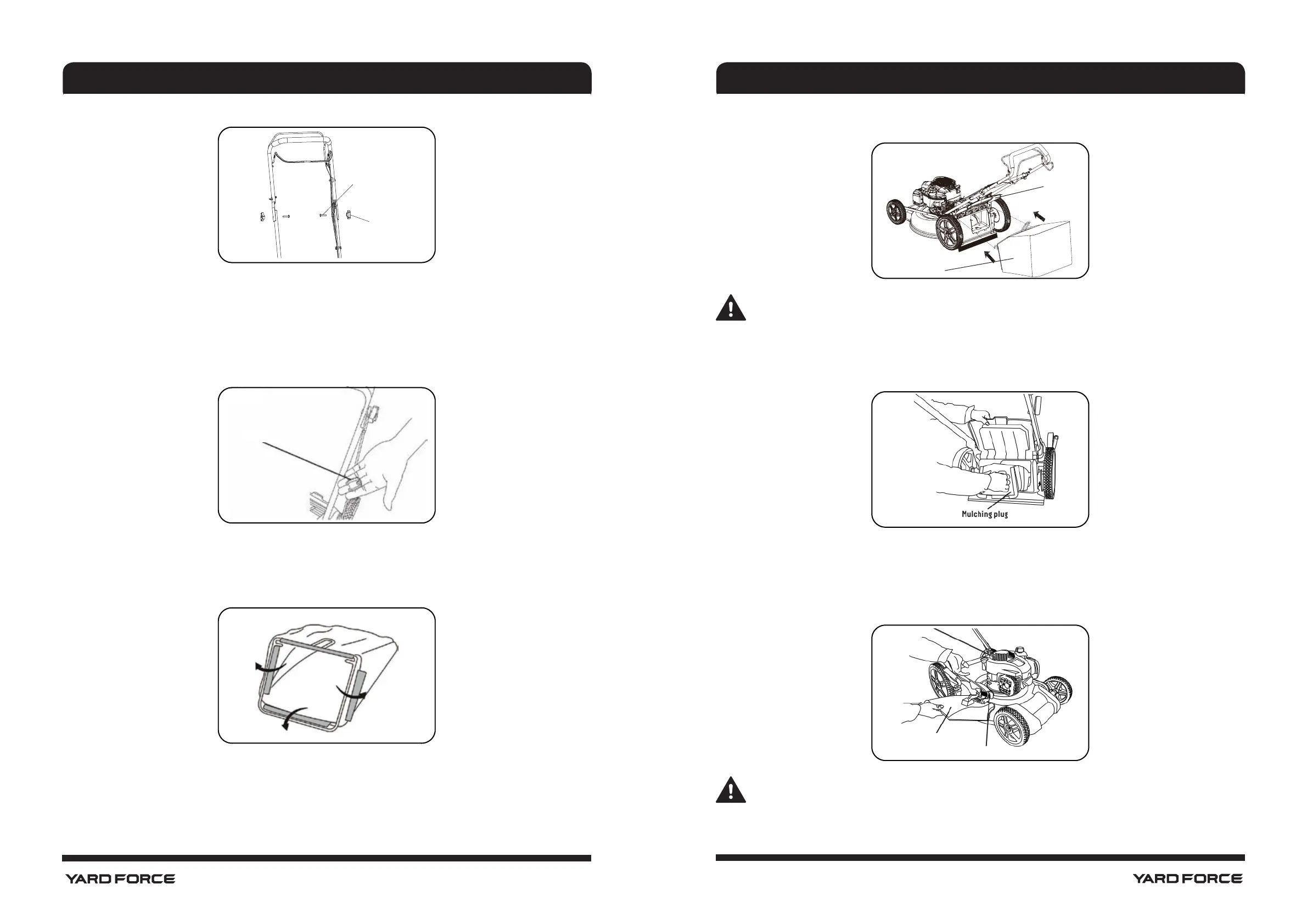

Fig. 4
IMPORTANT: Unfold handle carefully to avoid pinching or damaging the control cables.
1. Fasten the lower handle to the lawn mower deck by using 1 knob and 1 bolt on each side.
2. Fasten the lower handle to the device by using two arc head bolts and two fixing knobs on each side.
3. Unfold the upper handle and attach it to lower handle by using 1 knob and 1 bolt on each side.
CLIP CONTROL CABLES TO THE HANDLE
As shown in Fig. 5
Fig. 5
Attach the control cables to the handle with the clip (supplied).
ASSEMBLING THE GRASS BAG
As shown in Fig. 6
Fig. 6
1. The grass bag already be half assembled. Make sure the frame handle is outside of the bag top.
2. Slip the vinyl bindings over the frame.
ASSEMBLY
ATTACHING THE GRASS BAG TO THE MOWER
As shown in Fig. 7
Fig. 7
Rear chute flap
Grass bag
NOTE: Never install or remove the grass bag, mulch plug or side discharge chute while the engine
is running.
1. Lift the rear chute flap with one hand and hook in the grass bag, make sure the mulch plug be removed.
2. Release the rear chute flap to secure the grass bag in position.
INSTALLING THE MULCHING PLUG
As shown in Fig. 8
Fig. 8
1. Remove the grass bag.
2. Push the plastic mulching plug into the discharge chute until it is locked in position.
3. Release the rear chute flap. It will close back to cover the mulching plug.
INSTALLLING THE SIDE DISCHARGE CHUTE
As shown in Fig. 9
Fig. 9
NOTE: When changing to the side discharge, remove the grass bag and insert the mulching plug.
1. Lift the side discharge cover with one hand and hook in the side discharge chute with the other hand.
2. Release the side discharge cover to secure the chute in position.
ASSEMBLY
Bolt
Clip
Knob
Side discharge chute
Side discharge cover
