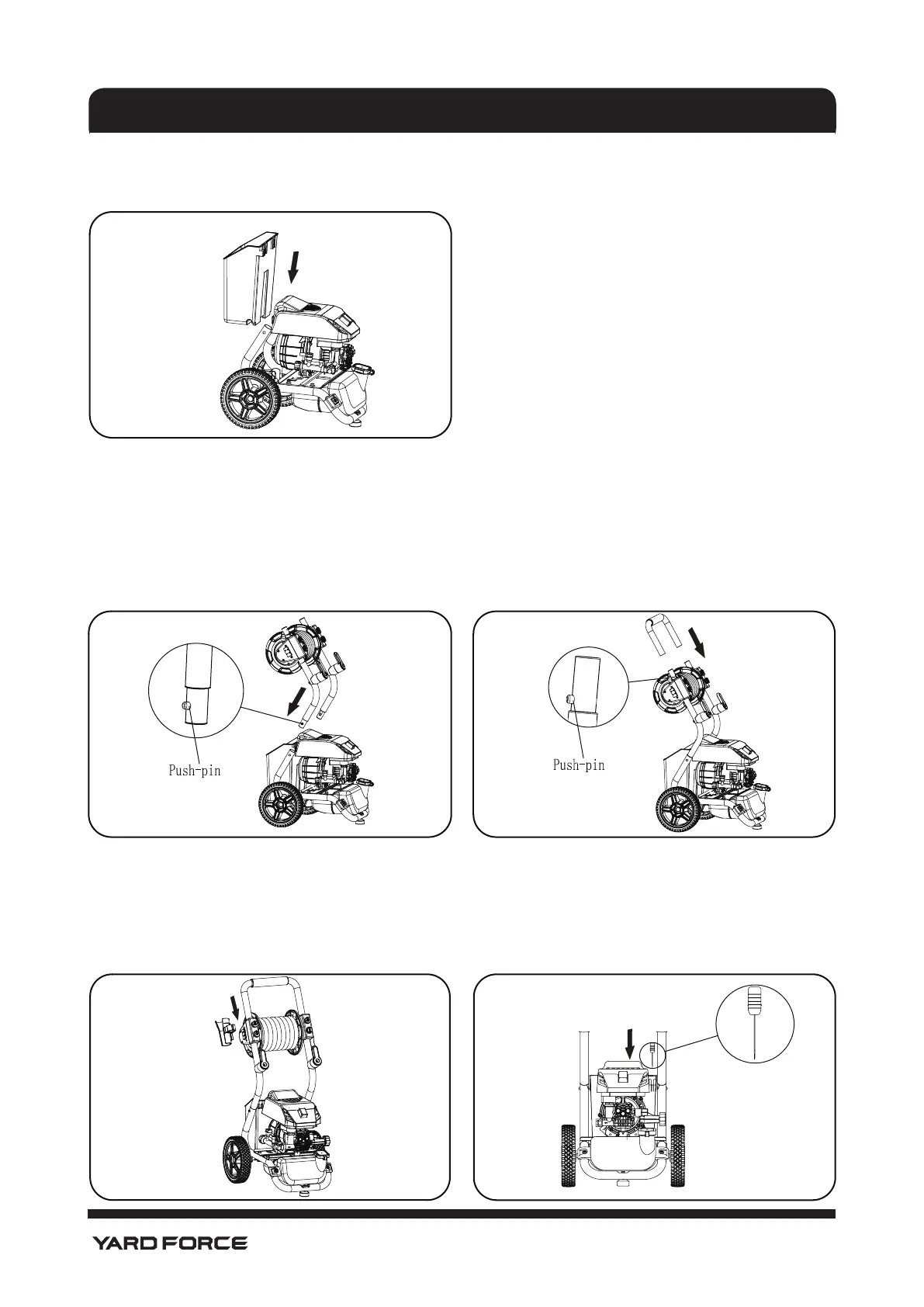

2. Attach storage bucket. (Fig. 3)
Attach the storage bucket onto pressure washer main unit by sliding open slot over tab.
ASSEMBLY AND OPERATION INSTRUCTIONS
Fig. 3
3. Assemble middle handle. (Fig. 4)
Push and hold the push-pin buttons on the sides of the middle handle as sliding the middle handle onto the
frame.
4. Assemble upper handle. (Fig. 5)
Push and hold the push-pin buttons on the upper sides of the middle handle as sliding the upper handle
onto the middle handle.
Fig. 4 Fig. 5
5. Assemble gun holder. (Fig. 6)
Assemble the gun holder onto pressure washer.
6. Assemble the nozzle cleaning needle. (Fig. 7)
Take out the nozzle cleaning needle and put into the slot on the base of the bucket.
Fig. 6 Fig. 7
To Next Page
