7. Insert the turbo nozzle. (Fig. 8)
Put the turbo nozzle into the nozzle holder together with the gun holder.
8. Connect high-pressure hose to pressure washer main unit. (Fig. 9)
Tighten the high-pressure hose to the water outlet of the pressure washer main unit.
ASSEMBLY AND OPERATION INSTRUCTIONS

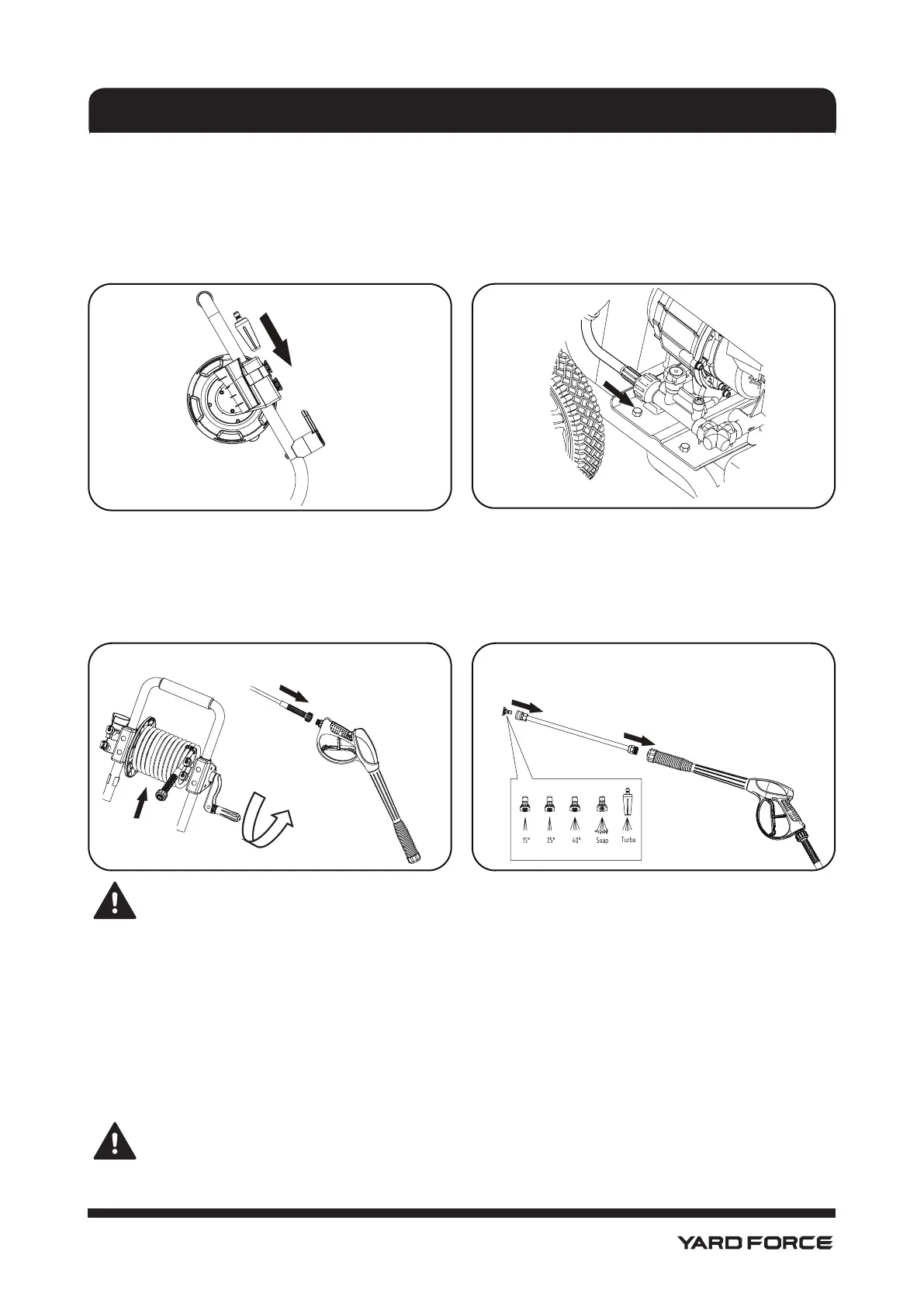

Fig. 8 Fig. 9
9. Connect the high-pressure hose to spray gun. (Fig. 10)
Roll down the high pressure hose and then tighten to the spray gun.
10. Connect spray wand to spray gun and attach the nozzles. (Fig. 11)
Connect the spray wand to the spray gun, and then attach the nozzles you wanted.
Fig. 10 Fig. 11
CAUTION
Placing any spray tip too close to a surface can result in permanent damage to the
surface being sprayed. Maintain at least a 24” distance between the tip and the surface being
sprayed until you have determined it is safe to move the tip closer to the surface.
11. Connect garden hose (Fig. 12)
Attach the garden hose to water inlet of the pressure washer, tighten by hand.
12. Connect to water supply (Fig. 13)
Attach garden hose to water supply and turn water valve on to the fall on position.
CAUTION! The water temperature must not exceed 104
o
F and the supply pressure must be
between 40 to 80 PSI.
