9. To test if the line is advancing properly, push the but-
ton with your thumb while pulling the line with your
fingers. The line should advance freely. (Fig. 30).
10. In the event of the line breaking inside the spool,
r
epeat the replacement operation.
11. Start the grass trimmer following the instructions in
the “STARTING” section.
MAINTENANCE
1. Regular cleaning and maintenance of your string
trimmer will ensure efficiency and prolong the life of
your machine.
2. After each cutting operation, take apart and clean out
the grass and soil from: the spool and its slot and in
particular the debris shield.
3. During operation, keep the air slots clean and free of
grass.
4. Only use a cloth soaked with hot water and a soft
brush to clean the string trimmer.
5. Do not spray or wet the appliance with water.
6. Do not use detergents or solvents as these could ruin
the trimmer. The parts made of plastic can easily be
damaged by chemical agents.
7. If the line cutting blade no longer cuts or breaks, have
this replaced by contacting an authorized service
center.
MAINTENANCE INSTRUCTIONS
Fig. 30
Bef
ore carrying out
any maintenance
operations, cut off the electric power supply by
disconnecting the plug from the extension
cord.
CAUTION:
Input
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120V~, 60Hz, 3.7Amp
No Load Speed
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8,000/min.
Cutting width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12” (300mm)
Line Diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ø0.065” (1.65mm)
Net Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.4 Lbs (2.0 Kg)
SPECIFICATION

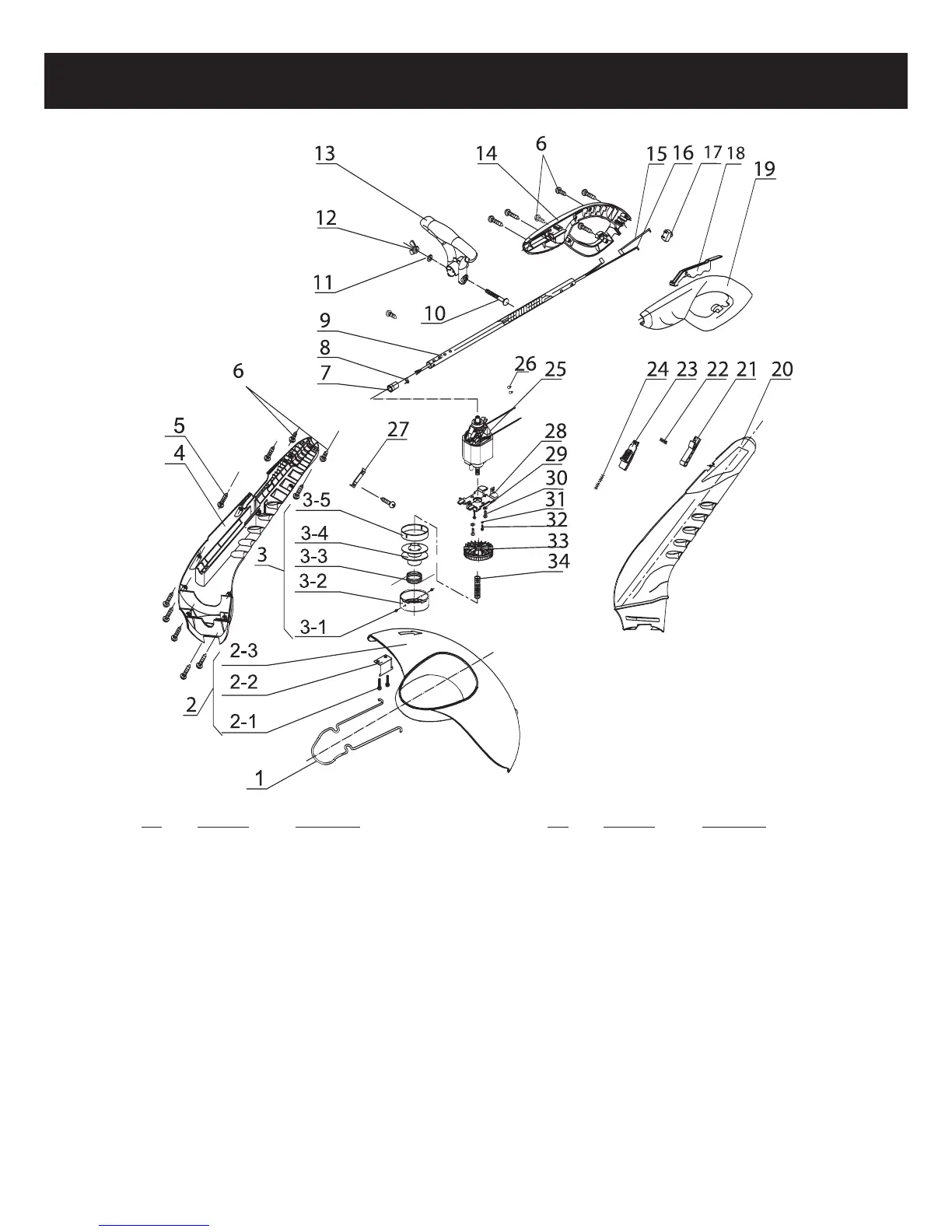

PARTS LIST
1 6036-230201 PROJECTIVE GUARD 14 6068-202606 UPPER HANDGRIP (R)
2 6228-202701 GUARD ASS'Y 15 6010-202602 WIRE
2-1 6SDABB04-10 SCREW 16 6010-202601 WIRE
2-2 6250-202503 WIRE CUTTING BLADE 17 6022-230001 SWITCH
2-3 6262-202701 GUARD 18 6028-230003 TRIGGER
3 6228-202004A SPOOL CARRIER ASS'Y 19 6068-202605 UPPER HANDGRIP (L)
3-1 6140-B23101 PILOT 20 6038-202605 HOUSING (L)
3-2 6059-202005A SPOOL COVER 21 6021-202602 DETENT
3-3 6194-202001 WIRE-CUTTING 22 6024-202605 SPRING
3-4 6008-202001A SPOOL CARRIER 23 6056-202607 BUTTON
3-5 6059-202004 SPOOL COVER 24 6024-202603 SPRING
4 6038-202606 HOUSING (R) 25
26
6099-202702 MOTOR 120V
5 6SDABB04-18 SCREW 6154-840001 TERMINAL BLOCK
6 6SDABB04-14 SCREW 27 6024-202601 SPRING
7 6017-230101 JACKET 28 6072-202601 MOTOR PLATE
8 6056-202603 SNAP BUTTON 29 6WSB-04 WASHER
9 6114-202602 ADJUSTABLE ROD 30 6SDAE-03-08 SCREW
10 6SHDB-06-52 SCREW 31 6WSB-03 WASHER
11 6WFB-06 WASHER 32 6SDAB-04-10 SCREEW
12 6NBB-06 NUT 33 6270-202003 CUTTER ASS'Y
13 6196-202601 CENTRAL HANDGRIP  34 6024-202604 SPRING
No.  Parts No. Description No.  Parts No. Description

Yard Machines MTD27P Specifications

General

Brand	Yard Machines
Model	MTD27P
Category	Trimmer
Language	English
