Avery Inst 1 - Post Assembly
Avery Inst 1 - Post Assembly
Avery Inst 1 - Post Assembly

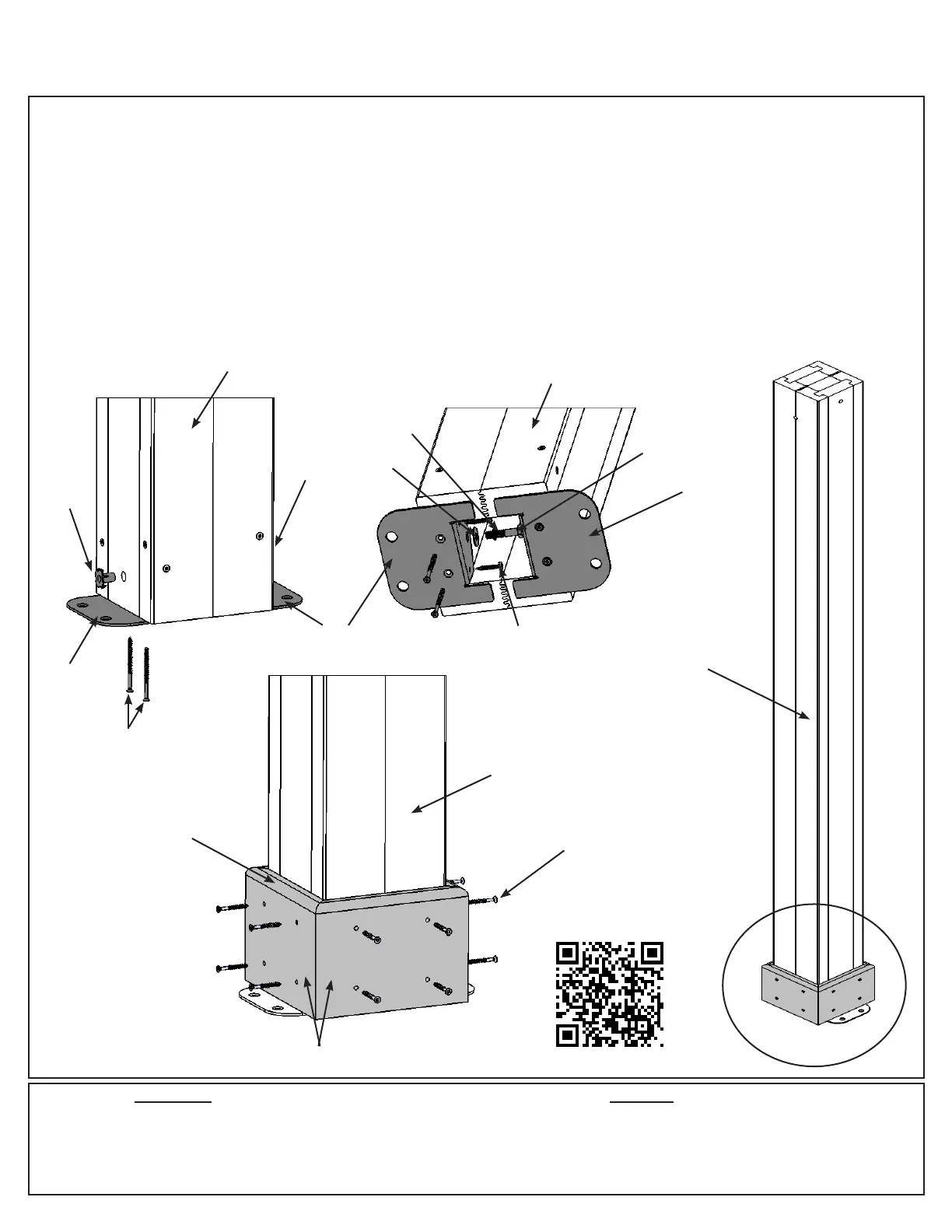

A: At the bottom of one (423) 6 x 6 Post insert two 5/16” T-Nuts as shown in g. 2.1.
B: At the bottom of the same (423) 6 x 6 Post place two Post Mounts tight to the bottom and inside faces as
shown in g. 2.1 and 2.2. Loosely attach with one 5/16 x 1-1/2” Hex Bolt (with 5/16” lock washer and 5/16” at
washer) per mount so they connect to the T-Nuts. From the bottom attach with two #8 x 2-1/2” Wood Screws per
mount and then from the inside with two #10 x 1-1/4” Pan Screws per mount. Tighten bolts.
C: Place one (422) Plinth ush to the bottom and tight to the Post Mounts on each side of the (423) 6 x 6 Post
and attach with four #8 x 1-1/2” Wood Screws per plinth. Rounded edges on top. (g. 2.3 and 2.4)
D: Repeat Steps A - C three more times to make four Post Assemblies.
Step 2: Post Assemblies
HardwareWood Parts
Fig. 2.1
(422) Plinth
4 x (423) 6 x 6 Post 152.4 x 152.4 x 2336.8 mm (6 x 6 x 92”)
16 x (422) Plinth 19.1 x 133.4 x 190.5 mm (3/4 x 5-1/4 x 7-1/2”)
Top
Bottom
#8 x 2-1/2” Wood Screws
(x 2 per Post Mount, from
bottom)
#8 x 1-1/2”
Wood Screws
(x 4 per Plinth)
(423) 6 x 6 Post
Post
Mount
Fig. 2.2
16 x #10 x 1-1/4” Pan Screw
16 x #8 x 2-1/2” Wood Screw
64 x #8 x 1-1/2” Wood Screw
8 x 5/16” T-Nut
8 x 5/16 x 1-1/2” Hex Bolt
(with 5/16” lock washer, 5/16” at washer)
8 x Post Mount
Avery Inst 1 - Post Assembly
Fig. 2.4
Post
Mount
(423) 6 x 6 Post
5/16” T-Nut
(x 2 per
Post)
(423) 6 x 6
Post
Rounded
Edge on Top
Fig. 2.3
Post
Mount
#10 x 1-1/4” Pan Screws
(x 2 per Post Mount, from
inside)
5/16” Flat
Washer
5/16” Lock
Washer
5/16 x 1-1/2”
Hex Bolt
5/16” T-Nut
(x 2 per
Post)
(423) 6 x 6
Post
http://bit.ly/avery2-4
