Yardistry YM12705X - Page 10

10 support@yardistrystructures.com
(7 x 7 x 94")
Y70219-324
7 x 7 Post FSC
4pc. (324) -
177.8 x 177.8 x 2387.6mm
(5/4 x 6 x 8-7/8")
Plinth FSC
Y50219-329
16pc. (329) -
23.8 x 133.4 x 225.4mm

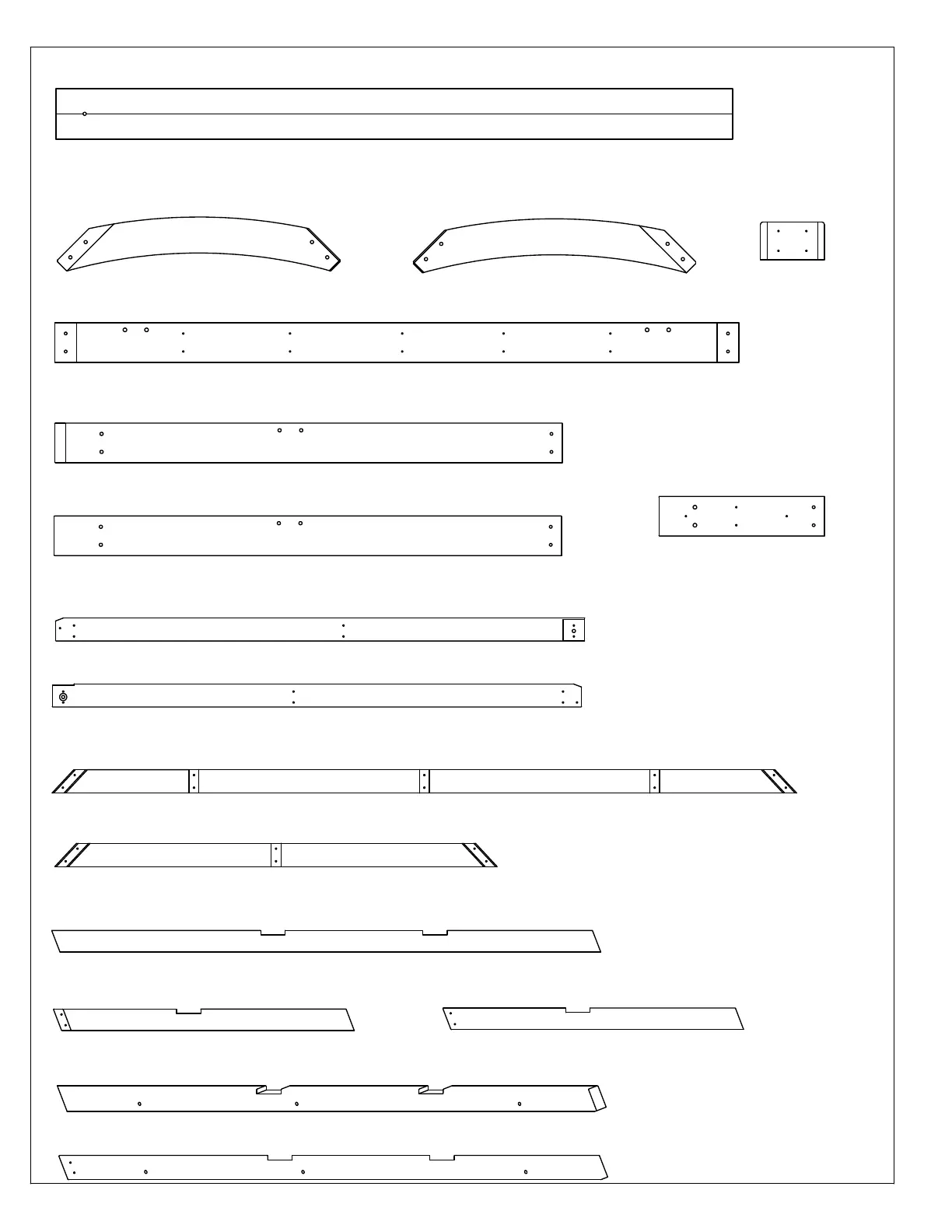

Part Identification ( )
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.
(1-1/4 x 3 x 41-13/16")
31.8 x 76.2 x 1062mm
Rafter Short Left FSC
4pc. (339) -
Y50219-339
(1-1/4 x 3 x 41-13/16")
31.8 x 76.2 x 1062mm
Rafter Short Right FSC
4pc. (338) -
Y50219-338
(1 x 3-1/2 x 103-13/16")
Y50219-334
Rafter Corner Right FSC
4pc. (334) -
25.4 x 88.9 x 2631.5mm
Y50219-333
Rafter Corner Left FSC
4pc. (333) -
25.4 x 88.9 x 2631.5mm
(1 x 3-1/2 x 103-13/16")
(1-1/4 x 3 x 76-1/4")
31.8 x 76.2 x 1937.1mm
Rafter FSC
4pc. (340) -
Y50219-340
Y50219-337
Strap Short FSC
4pc. (337) -
31.8 x 82.6 x 1561.3mm
(1-1/4 x 3-1/4 x 61-7/16")
(1-1/4 x 3-1/4 x 103-7/16")
Y50219-336
Strap FSC
4pc. (336) -
31.8 x 82.6 x 2628.1mm
(1-1/4 x 3-1/4 x 73-1/2")
Y50219-342
Fascia Right FSC
4pc. (342) -
31.8 x 82.6 x 1866.9mm
(1-1/2 x 7-1/2 x 39-1/2")
38.1 x 190.5 x 1003.3mm
Gusset Right FSC
4pc. (330) -
Y70219-330
(1-1/4 x 3-1/4 x 73-1/2")
Y50219-341
Fascia Left FSC
4pc. (341) -
31.8 x 82.6 x 1866.9mm
(1-1/2 x 5-1/2 x 70-1/2")
Beam End Right FSC
Y50219-345
4pc. (345) -
38.1 x 139.7 x 1790.7mm
(1-1/2 x 5-1/2 x 70-1/2")
Beam End Left FSC
Y50219-344
4pc. (344) -
38.1 x 139.7 x 1790.7mm
(1-1/2 x 5-1/2 x 23")
Beam End Short FSC
Y50219-346
8pc. (346) -
38.1 x 139.7 x 584.2mm
(1-1/2 x 5-1/2 x 95")
Beam FSC
Y50219-343
4pc. (343) -
38.1 x 139.7 x 2413mm
(1-1/2 x 7-1/2 x 39-1/2")
38.1 x 190.5 x 1003.3mm
Gusset Left FSC
4pc. (331) -
Y70219-331
