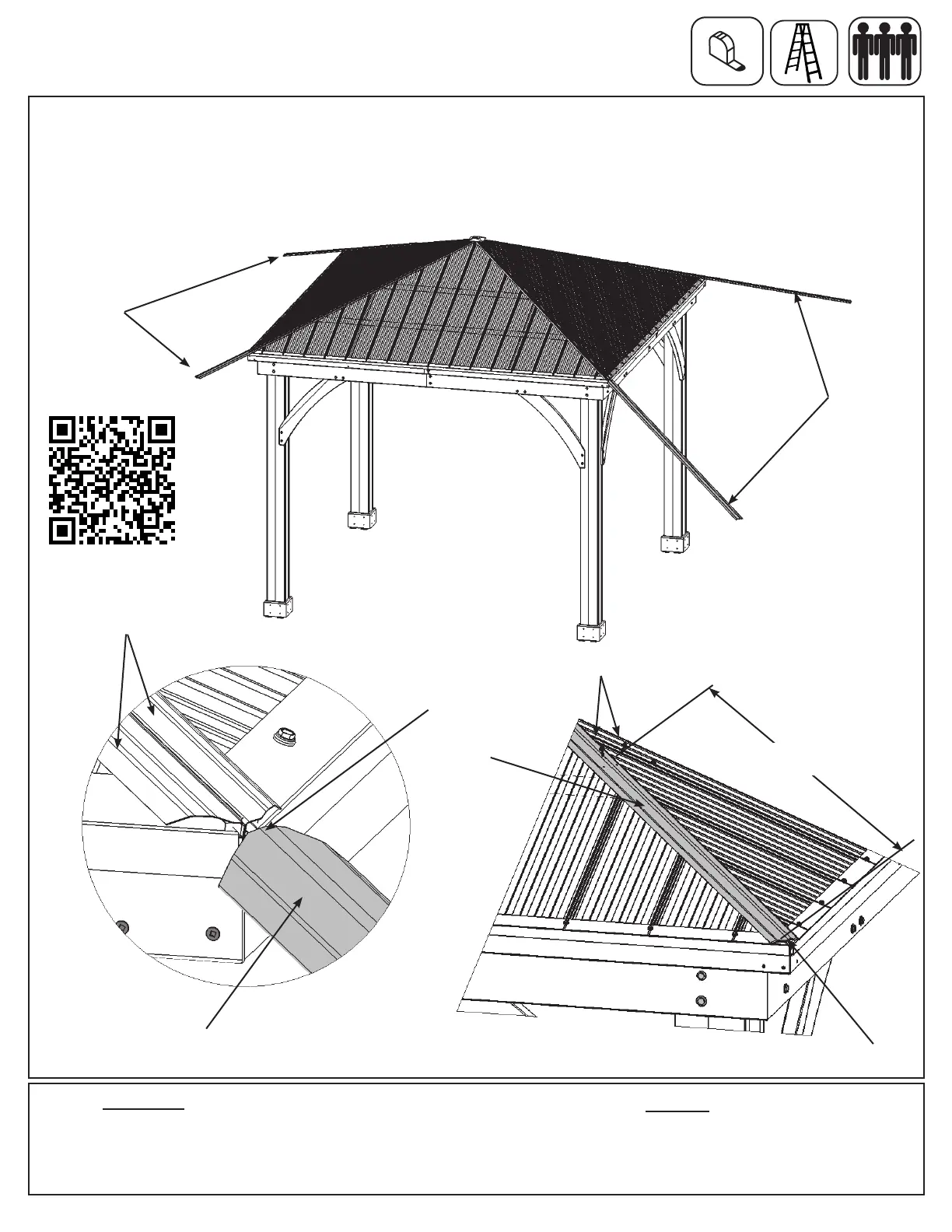

Step 19: Attach Ridge Caps to Roof Panels
A: Slide one Ridge Cap over the Ridge Clips, with cut end leading, on each corner of the assembly from the
bottom up, lifting Peak Cap by pushing up the Peak Loop so Ridge Caps t under Peak Cap then attach with two
#8 x 3/4” Sheet Metal Screws per Ridge Cap. (g. 19.1, 19.2 and 19.3)
B: Tighten Loop to secure Roof Peak Set.
Hardware
8 x #8 x 3/4” Sheet Metal Screw
Componets:
4 x Ridge Cap
Ridge
Cap
Ridge
Cap
Ridge Cap
Ridge Clip
#8 x 3/4” Sheet Metal Screw
Ridge
Cap
Fig. 19.1
Fig. 19.2
Fig. 19.3
x 3
Cut End
Folded End
35-1/2”
