Step 12: Attach Roof Panels - Small Roof
Part 1
A: Place one Long Panel Left on the front of one Small Roof Rafter Assembly so it is ush to the side of (2203)
and has a slight overhang at the bottom of the Fascia Beam Assembly. Holes should line up with (2206).
(F12.1 and F12.2)
B: Place one Long Panel Right on Small Roof Rafter Assembly so it overlaps the Long Panel Left and is ush
to the side of (2204) and has a slight overhang at the bottom of the Fascia Beam Assembly. (F12.1 and F12.2)
C: Attach both Left and Right Long Panels to Small Roof Rafter Assembly with four R0 in locations shown in
F12.1. Be sure not to overtighten screws.
D: Repeat Steps A - C for both Small Roof Rafter Assemblies.

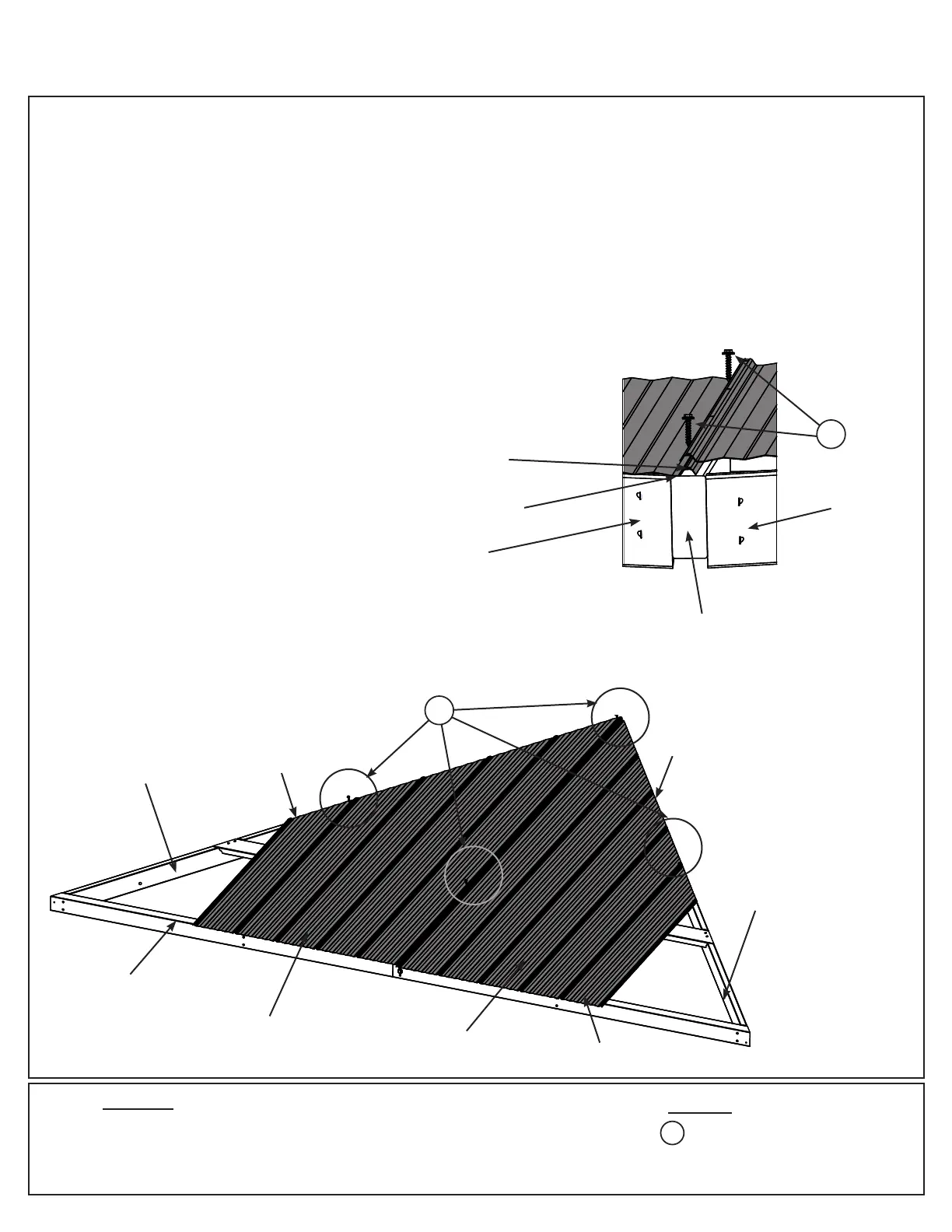

F12.1
F12.2
8 x #8 x 1” Roong Screw
Roof Parts
2 x Long Panel Left
2 x Long Panel Right
Front View
Fascia Beam
Assembly
(2203)
(2204)
Top, Side View
Panels overlap
at the seams
(2206)
(2204)
(2203)
Long Panel
Left
Long Panel
Right
DO NOT overtighten
screws, could cause
damage to roong
material
Flush
Flush
Slight overhang
Lower 3 screws may have
to be removed in next step
to properly place Left and
Right Short Panels
Flush
R0
R0
R0
