44 support@yardistrystructures.com
Peak Cap
Long
Carriage Bolt
F18.3
Peak
Loop

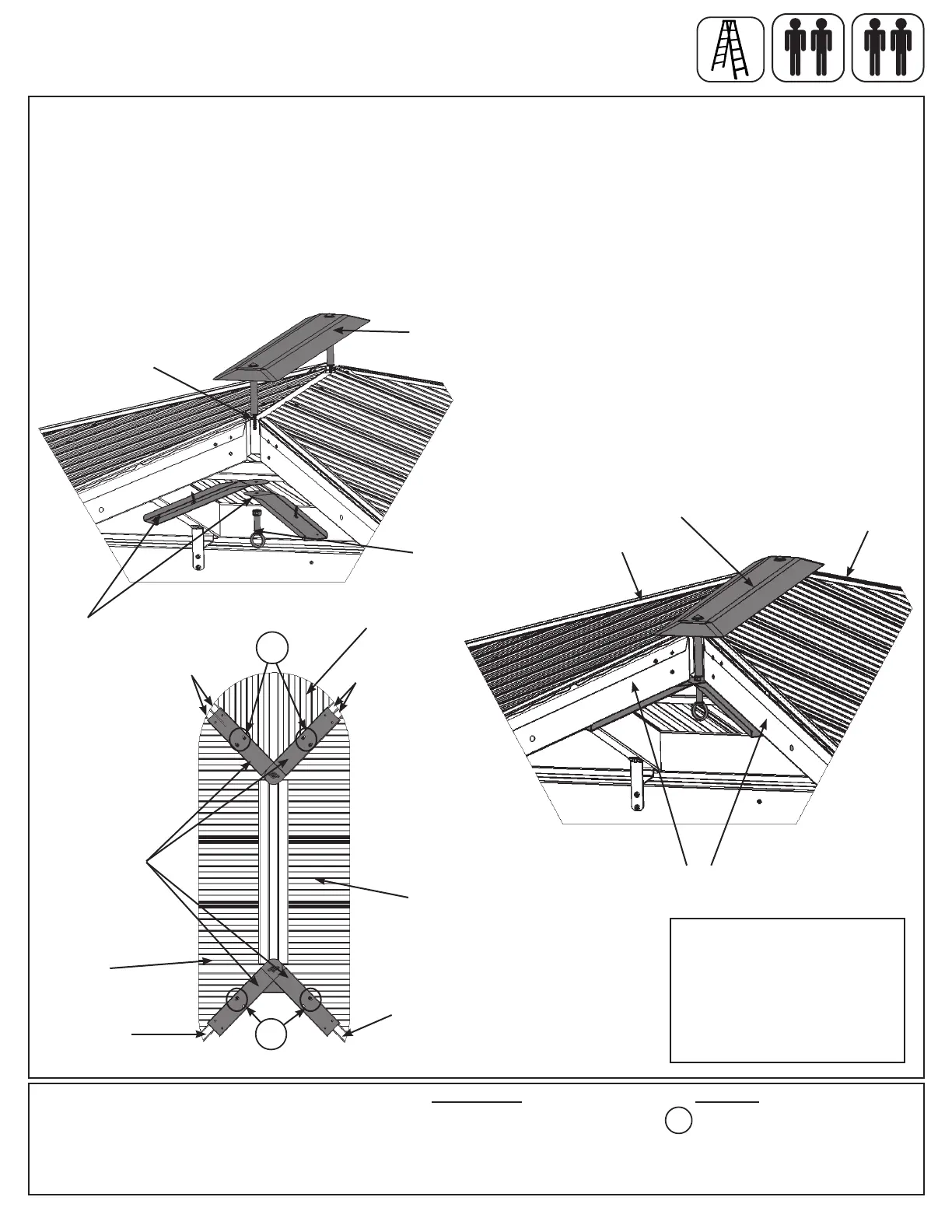

A: Insert Roof Peak Assembly in gap between Large and Small Roof Panels. Peak Cap Long to be lined up with
Corner Rafters. (F18.1 and F18.2)
B: Insert two Roof Peak Brackets through each Carriage Bolt and attach Peak Loop to Carriage Bolts then twist
to tighten loosely.
C: Loosely attach one set of Roof Peak Brackets to the Corner Rafters of the connected Large and Small Roof
Panels in the slotted holes with four S12. On the second set of Roof Peak Brackets loosely attach to the Corner
Rafters of Large Roof Panels with two S12. (F18.3)
F18.1
Roof
Peak
Bracket
Roof Peak
Assembly
Components:
4 x Roof Peak Brackets
Step 18: Attach Roof Peak to Roof Panels
x 3
Rafter
Corners
Corner
Rafters
Corner
Rafters
F18.2
Corner
Rafter
Roof
Peak
Bracket
Corner
Rafter
Corner
Rafter
Hardware
Corner
Rafter
Large Roof
Panel Assembly
Small Roof
Panel Assembly
Large Roof
Panel Assembly
S12
S12
6 x #10 x 1-1/4” Pan Screw
S12
Note: DO NOT ATTACH
ANY PRODUCT WHICH
WEIGHS GREATER
THAN 22 LBS (10 KG)
TO EACH OF THE PEAK
LOOPS
To Next Page
