Step 10: Attach Roof Panels - Small Roof Assembly
Part 1
A: Place one Long Panel Left on the front of one Small Roof Assembly so it is ush to the side of (624) Rafter
Corner Left and a slight overhang at the bottom of the Fascia Beam Assembly. Centre holes should line up with
(634) Rafter. (F10.1 and F10.2)
B: Place one Long Panel Right on Small Roof Assembly so it overlaps the Long Panel Left and it is ush to the
side of (623) Rafter Corner Right and a slight overhang at the bottom of the Fascia Beam Assembly. (F10.1,
F10.2 and F10.3)
C: Attach both Left and Right Long Panels to Small Roof Assembly with four #8 x 1” Roong Screws in locations
shown in F10.1 and F10.2. Be sure not to overtighten screws.
D: Repeat Steps A - C for both Small Roof Assemblies.

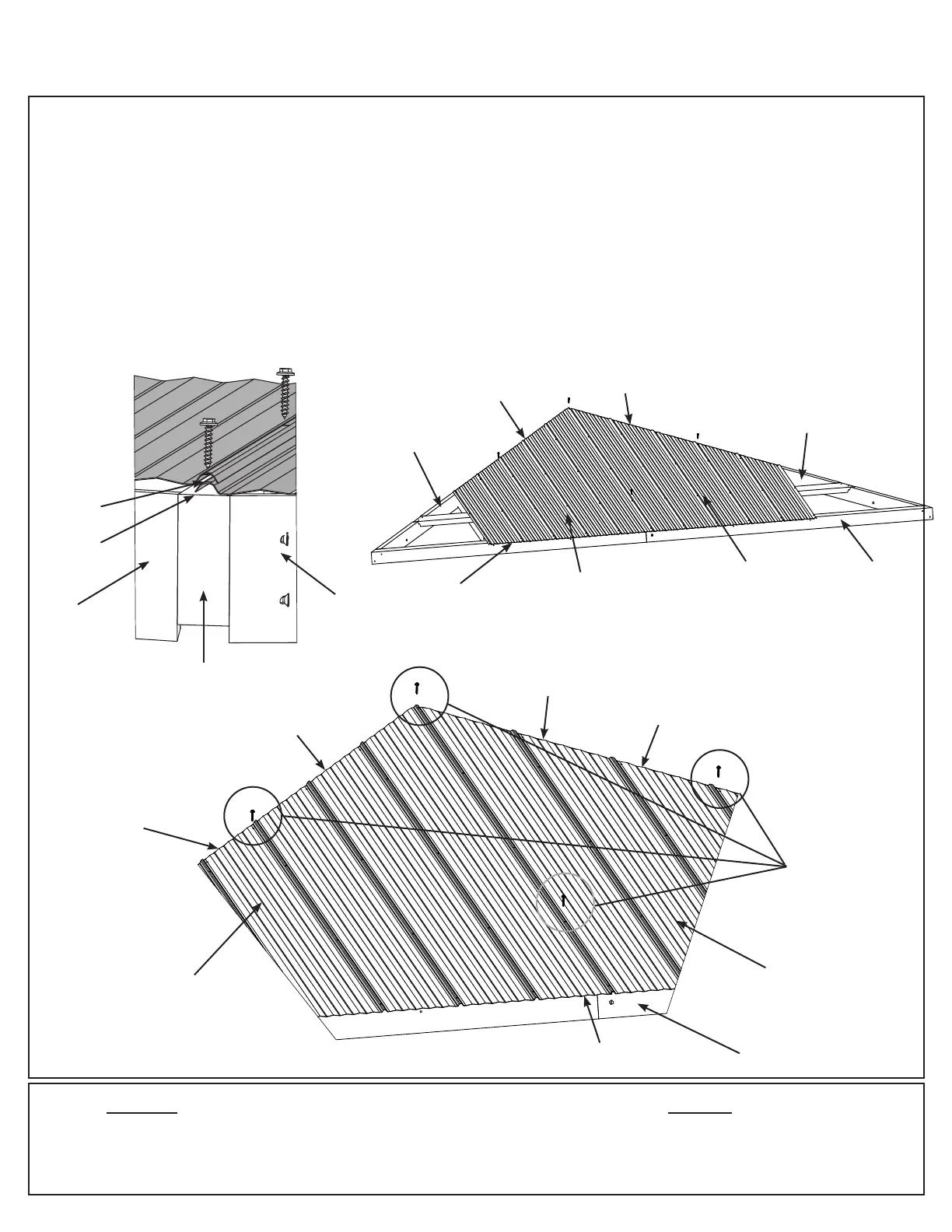

F10.1
F10.2
8 x #8 x 1” Roong Screw
Roof Parts
2 x Long Panel Left
2 x Long Panel Right
Front View
Fascia Beam
Assembly
(624) Rafter
Corner Left
(623) Rafter
Corner Right
Top, Side View
Panels
overlap at
the seams
(623) Rafter
Corner Right
(624) Rafter
Corner Left
#8 x 1”
Roong
Screws
Long Panel
Left
DO NOT overtighten
screws, could cause
damage to roong
material
Flush
Flush
Slight overhang
Flush
F10.3
Front View
Long Panel
Left
Long Panel
Right
Long Panel
Right
Fascia Beam
Assembly
Flush
Slight overhang
(624) Rafter
Corner Left
(623) Rafter
Corner Right
Flush
(634) Rafter
