Yardistry YM12784 - Step 12: Corner Roof Assemblies - Part 2; Attaching Rafters to Corner Roof Assemblies

41 support@yardistrystructures.com
#8 x 2½ Wood Screw X4
Rafter Centre RT
Y50000-632Y50000-630
Rafter Short LT
Y50000-629
Rafter Short RTRafter Corner Left
Y50000-
#8 x 2½ Wood Screw X4
Rafter Centre RT
Y50000-632Y50000-630
Rafter Short LT
Y50000-629
Rafter Short RTRafter Corner Left
Y50000-
#8 x 2½ Wood Screw X4
Rafter Centre RT
Y50000-632Y50000-630
Rafter Short LT
Y50000-629
Rafter Short RTRafter Corner Left
Y50000-
of Fascias slope down
to install
Y50000-675
Notice Angled end
Middle Rafter
Y50000-676
Left End Fascia
Y50000-623
Rafter Corner Right
Right End Fascia
Y50000-677
Rafter Corner Left
Y50000-
#8 x 2½ Wood Screw
HardwareWood Parts
F12.6
8 x #8 x 2-1/2” Wood Screw
2 x (629) Rafter Short RT
2 x (630) Rafter Short LT
2 x (631) Rafter Centre LT
2 x (632) Rafter Centre RT

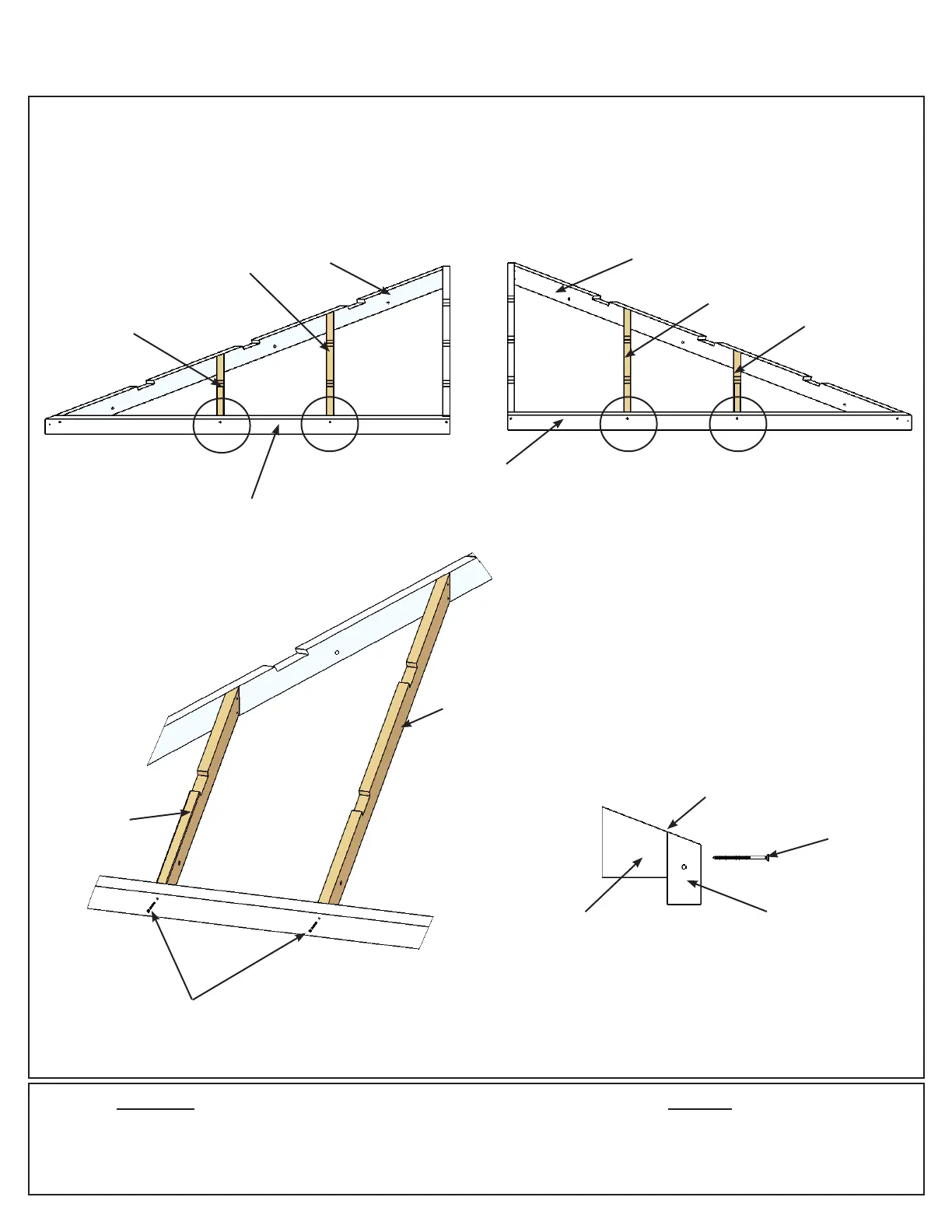

D: For each Right Corner Roof Assembly and each Left Corner Roof Assembly, place one (629) Rafter Short
RT, one (632) Rafter Centre RT, one (631) Rafter Centre LT and one (630) Rafter Short LT over the pilot holes
in the (677) Right End Fascia and (676) Left End Fascia so they are ush to the top of the assembly and tight
to both (623) Rafter Corner Right and (624) Rafter Corner Left, as shown in F12.6 and F12.7. Attach each End
Fascia to each rafter with one #8 x 2-1/2” Wood Screw per rafter. (F12.6, F12.7, F12.8 and F12.9)
(624) Rafter
Corner Left
(623) Rafter
Corner Right
Flush
(629) Rafter
Short RT
#8 x 2-1/2”
Wood Screws
(632) Rafter
Centre RT
(630) Rafter
Short LT
(631) Rafter
Centre LT
F12.7
Rafter Short
LT / RT
Rafter Centre
LT / RT
Fascia
F12.9
#8 x 2-1/2”
Wood Screws
Rafter
F12.8
(676) Left
End Fascia
(677) Right
End Fascia
Left Corner
Roof Assembly
Right Corner
Roof Assembly
Step 12: Corner Roof Assemblies
Part 2
