Yardistry YM12784 - Step 15: Attach Roof Panels - Corner Roof Assemblies; Installing Corner Roof Panels

46 support@yardistrystructures.com
(2)Short Panel Right -Y010XX-199 #8 x 1 Roofing Screw x23(2)Long Panel Right -Y010XX-197
Assembly x2
(2)Short Panel Right -Y010XX-199 #8 x 1 Roofing Screw x23(2)Long Panel Right -Y010XX-197
Assembly x2
(2)Short Panel Right -Y010XX-199 #8 x 1 Roofing Screw x23(2)Long Panel Right -Y010XX-197
Assembly x2
(2)Short Panel Right -Y010XX-199 #8 x 1 Roofing Screw x23(2)Long Panel Right -Y010XX-197
Assembly x2
Hardware

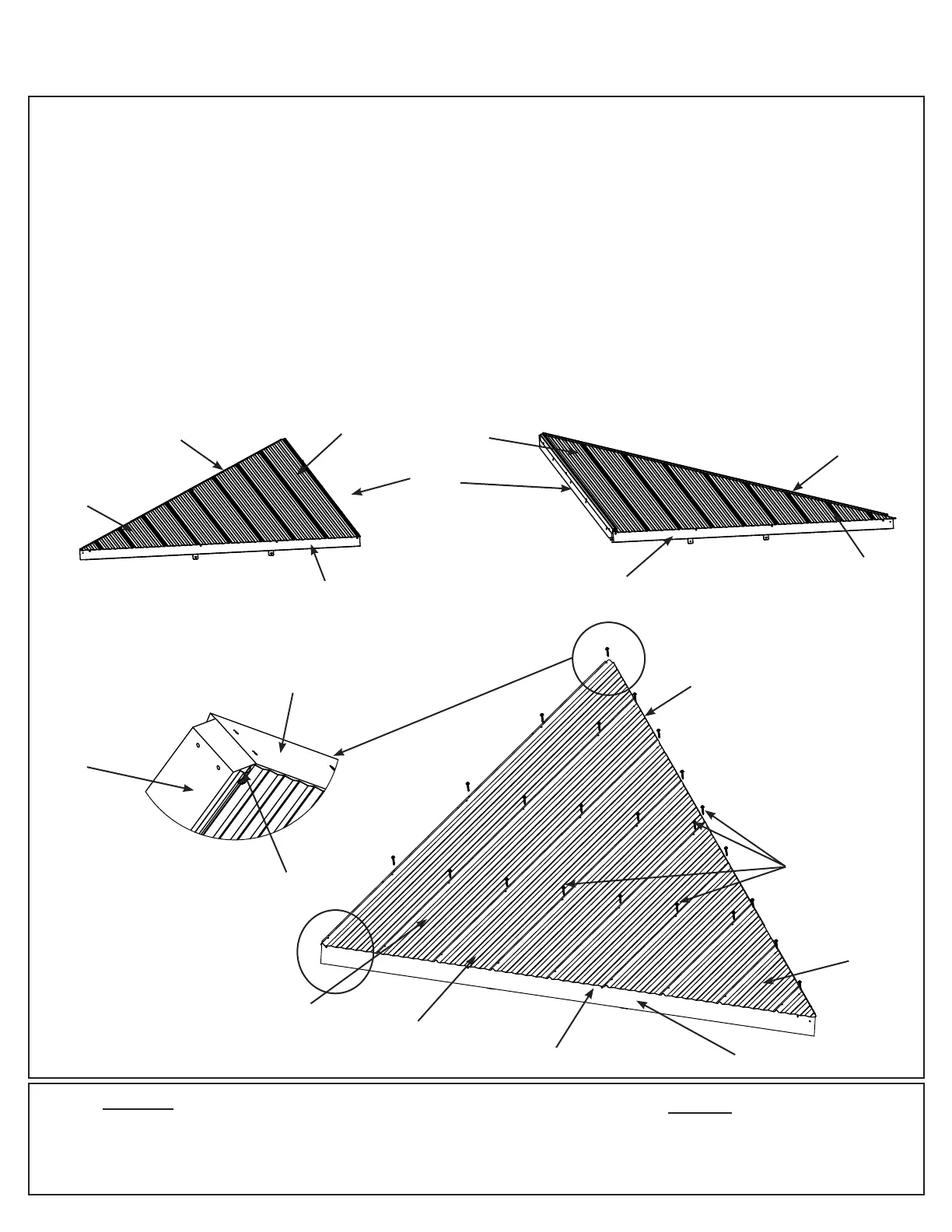

Step 15: Attach Roof Panels - Corner Roof Assemblies
A: On the front of each Left Corner Roof Assembly place one Long Panel Left and one Short Panel Left so they are
ush to the side of (624) Rafter Corner Left and the rib of Long Panel Left is centre on (675) Middle Rafter. There
will be a slight overhang at the bottom of the (676) End Fascia Left. Short Panel Left should overlap Long Panel
Left. There should be no overhang at the corners. (F15.1, F15.3 and F15.4)
B: On the front of each Right Corner Roof Assembly place one Long Panel Right and one Short Panel Right so
they are ush to the sides of (623) Rafter Corner Right and the rib of Long Panel Right is centre on (675) Middle
Rafter. There will be a slight overhang at the bottom of the (677) End Fascia Right. Short Panel Left should overlap
Long Panel Left. There should be no overhang at the corners. (F15.2, F15.3 and F15.4)
C: Attach Long and Short Panels to each Corner Roof Assembly with 24 #8 x 1” Roong Screws in locations shown
in F15.3. Do not place any screws along the bottom row. Be sure not to overtighten screws.
F15.1
F15.2
96 x #8 x 1” Roong Screw
Roof Parts
2 x Long Panel Left
2 x Long Panel Right
2 x Short Panel Left
2 x Short Panel Right
Front View
(623) Rafter
Corner Right
(624) Rafter
Corner Left
#8 x 1”
Roong
Screws
DO NOT overtighten
screws, could cause
damage to roong
material
Centre
Slight overhang
Flush
F15.3
Front View
Long Panel
Left
Long Panel
Right
Long Panel
(Left/Right)
(677) End
Fascia Right
Short
Panel
Left
Short Panel Right
No screws along
bottom row
IMPORTANT!: Before starting this step, be sure to refer back to pages
35 & 36 regarding correct installation and handling of the roong.
(675) Middle
Rafter
(676) End
Fascia Left
Short Panel
(Left/Right)
End Fascia (Left/Right)
End Fascia
(Left/Right)
(675) Middle
Rafter
F15.4
Left Corner
Roof Assembly
Right Corner
Roof Assembly
