76 support@yardistrystructures.com
D: Attach one Double Tie Wrap Bracket
RT and one Double Tie Wrap Bracket LT
tight to each end of two (646) Ties with
one #10 x 1-1/4” Pan Screw per bracket
using the inside holes. Make sure at side
of each bracket is on the same side of the
(646) Ties. (F32.5, F32.6 and F32.7)
E: With a helper place one (646) Tie
against each (675) Middle Rafter on
Corner Roof Assemblies so (646) Tie
is tight to the rafters and are level. Flat
side of each bracket must face out, bent
side will be tight to (675) Middle Rafter on
Large Roof Assemblies. Attach Double
Tie Wrap Bracket to (675) Middle Rafters
with four #10 x 1-1/4” Pan Screws. (F32.4,
F32.5, F32.6 and F32.7)
F: Pre-drill with a 1/8” drill bit and secure
Double Tie Wrap Brackets to (646) Ties
and (675) Middle Rafters with one #10 x
2-1/2” Pan Screw per bracket. (F32.4,
F32.5 and F32.6)
Wood Parts
2 x (646) Tie
F32.4
#10 x 1-1/4”
Pan Screw
#10 x 2-1/2” Pan Screw
(pre-drill before installing)
#10 x 1-1/4”
Pan Screw
#10 x 1-1/4”
Pan Screw
(646) Tie
(675) Middle
Rafter
Double Tie
Wrap Bracket
(LT / RT)

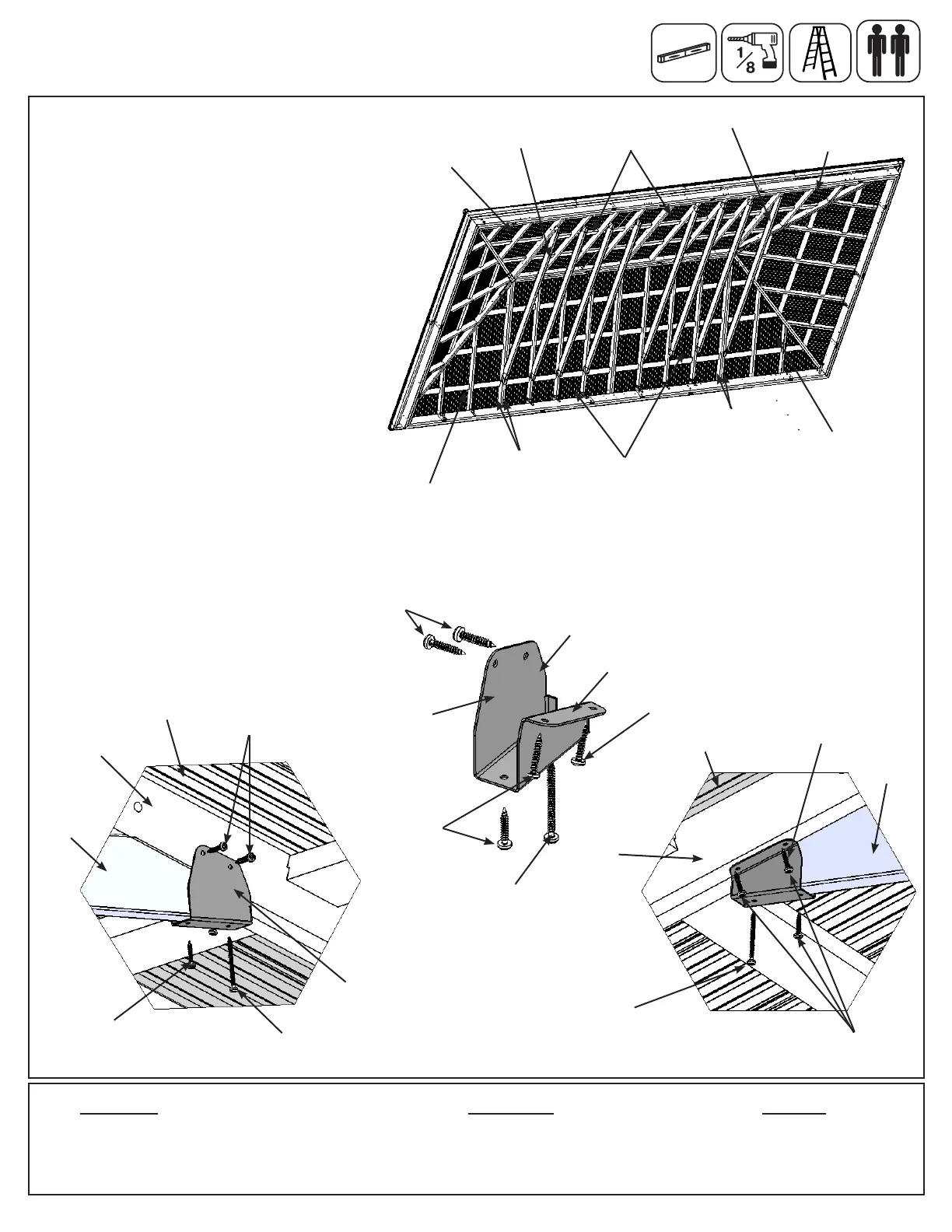

Step 32: Attach Tie Wrap Brackets and Ties
Part 2
F32.7
F32.5
#10 x 1-1/4”
Pan Screw
#10 x 1-1/4”
Pan Screw
#10 x 1-1/4”
Pan Screw
Large Roof
Assembly
Large Roof
Assembly
(646) Tie
(675) Middle
Rafter
Corner Roof
Assembly
Corner Roof
Assembly
Corner Roof
Assembly
Corner Roof
Assembly
Components
2 x Double Tie Wrap Bracket RT
2 x Double Tie Wrap Bracket LT
Hardware
20 x #10 x 1-1/4” Pan Screw
4 x #10 x 2-1/2” Pan Screw
(646) Tie
(675) Middle
Rafter
#10 x 2-1/2” Pan Screw
(pre-drill before installing)
Double Tie
Wrap Bracket
(LT / RT)
Double Tie Wrap
Bracket (LT / RT)
Corner Roof
Assembly
(646) Tie
#10 x 2-1/2”
Pan Screw
Bent Side
Flat
Side
F32.6
Large Roof
Assembly
(675) Middle
Rafter
To Next Page
