Fig. 14.2
Fig. 14.1

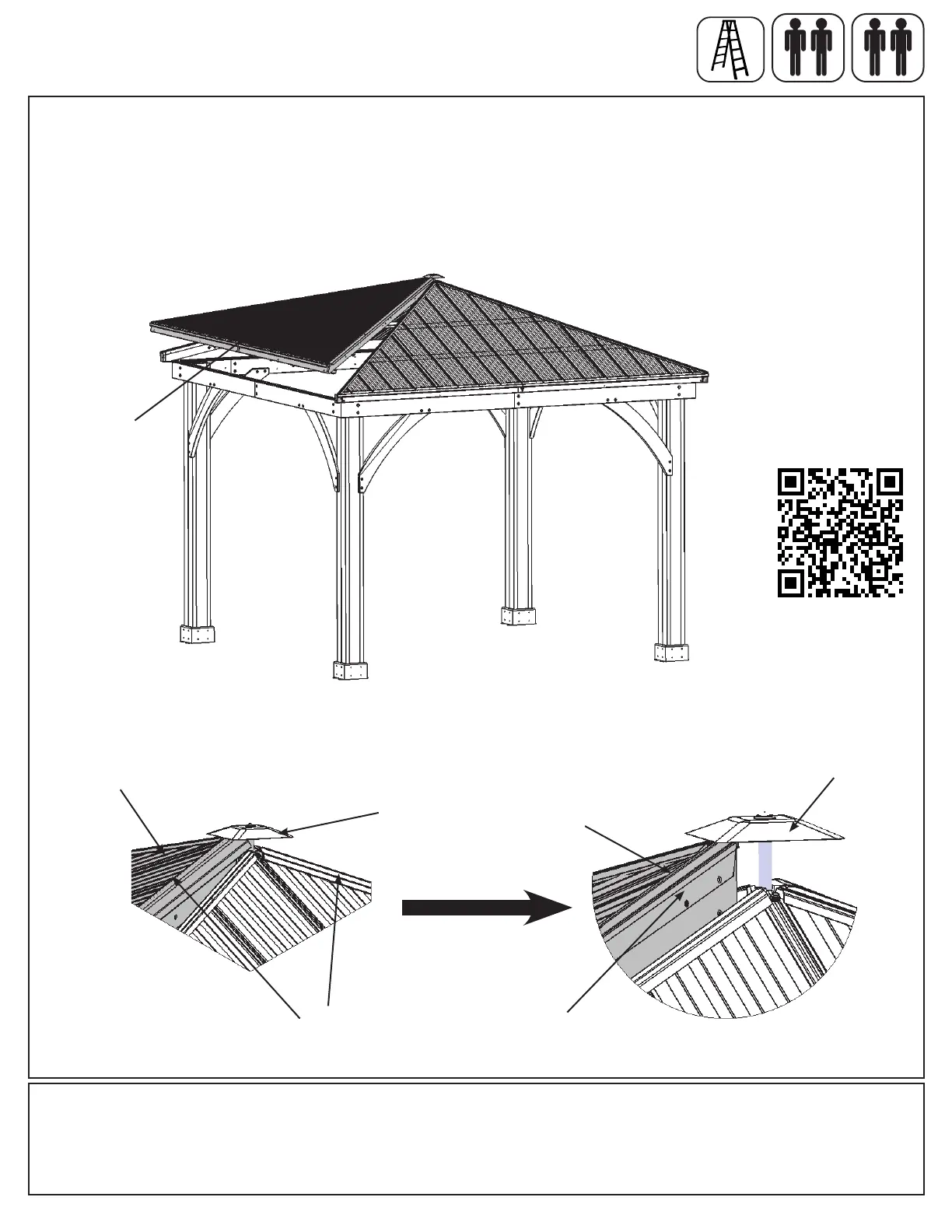

A: Lift last Roof Panel Assembly (without Roof to Beam Brackets) over Beam Assembly taking care not to drag
the panel on the beams. Panel ts under the Peak Cap, push up on Peak Loop to lift Peak Cap. The centre of
the other panels may have to be pushed up to t fourth panel. (g. 14.1 and 14.2)
B: Check again that Peak Cap is lined up with Rafter Corners. (g. 14.3)
Roof Panel
Assembly
Peak
Cap
Roof Panel
Assembly
Step 14: Attach Final Roof Panel
Part 1
x 3
Rafter
Corners
Peak
Cap
Roof Panel
Assembly
Rafter
Corners
Fig. 14.3
