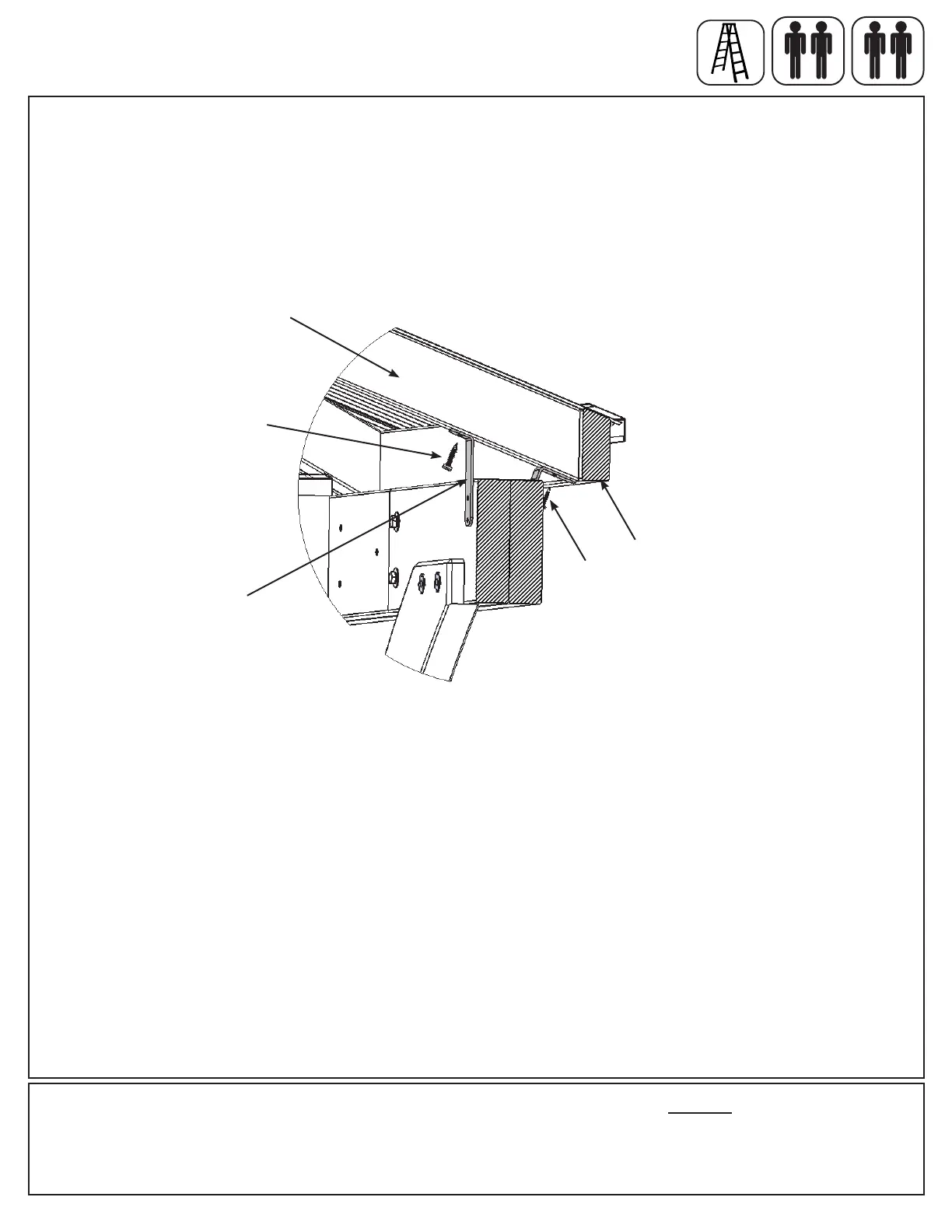

D: On the fourth Roof Rafter Assembly, centred and ush to the bottom of (338) Rafter Short Right, (339) Rafter
Short Left and (340) Rafter attach one Roof to Beam Bracket per board with one #8 x 1” Pan Screw in the bottom
hole and one #12 x 1-1/4” Pan Screw in the top hole per bracket. (g. 14.6)
x 3
Fig. 14.6
Parts removed
for clarity
Roof to
Beam
Bracket
#12 x 1-1/4”
Pan Screw
Flush
Attach to Rafter Short Right,
Rafter Short Left and Rafter
#8 x 1”
Pan Screw
Hardware
3 x #8 x 1” Pan Screw
3 x #12 x 1-1/4” Pan Screw
3 x Roof to Beam Bracket
Step 14: Attach Final Roof Panel
Part 3
