Yardistry YM12810X - Attach Roof Panels to Frame Part 3; Secure Additional Roof Panel Assemblies

31 support@yardistrystructures.com
Fig. 11.6
E: Lift third Roof Panel Assembly with Roof to Beam Brackets over Beam Assembly taking care not to drag the
panel on the beams then set in place beside the second panel. Make sure the middle Roof to Beam Bracket lines
up to the centre mark. (g. 11.6)

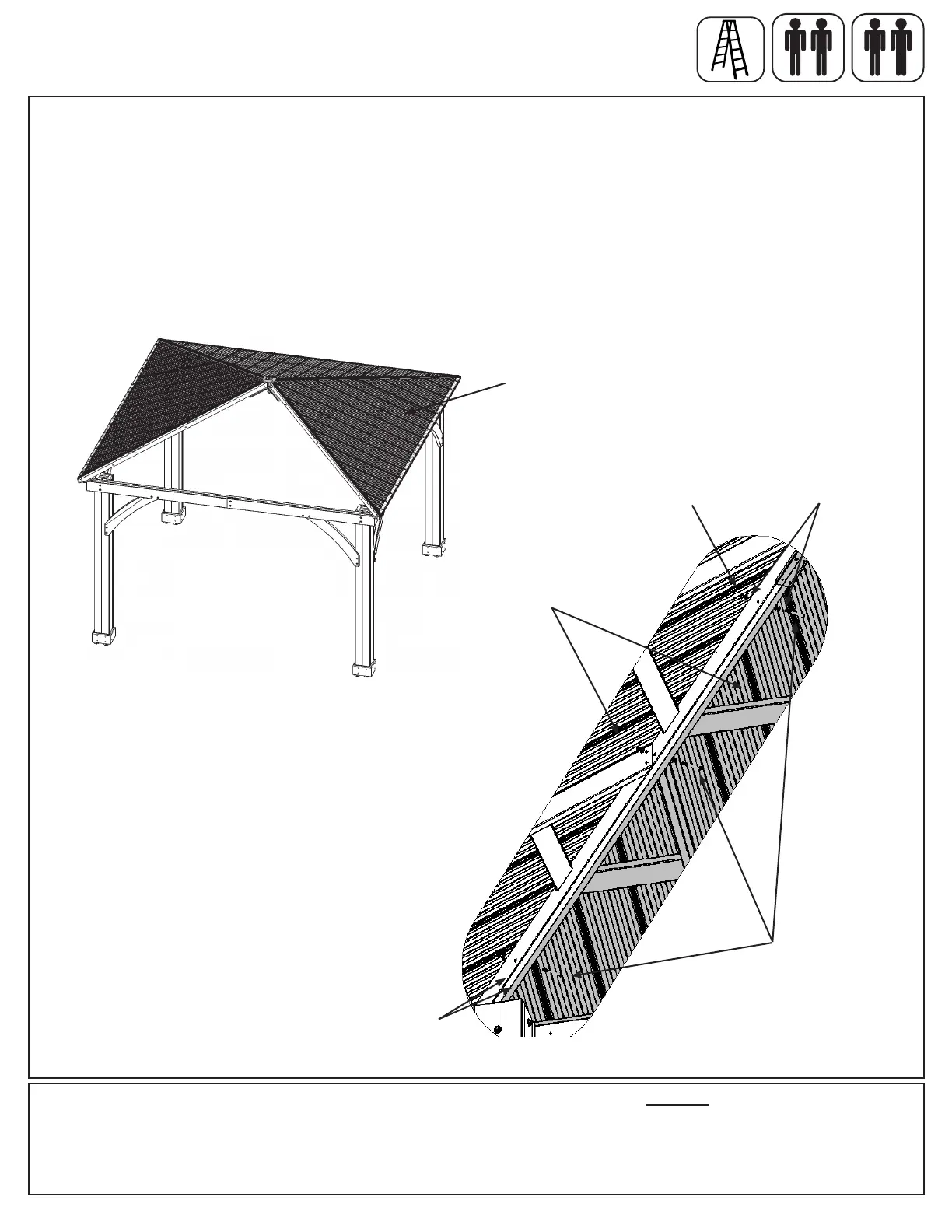

F: Starting at the bottom and working up connect Roof Panel Assemblies through the Rafter Corners with three
1/4 x 2-3/4” Hex Bolts (with two 1/4-5/16” large washers and one 1/4” lock nut). To align bolt holes helper on the
centre ladder may have to push up in the centre of the panels and others make sure corners are aligned. Make
sure all bolts are tight. (g. 11.7)
Roof Panel
Assembly
Fig. 11.7
Hardware
3 x 1/4 x 2-3/4” Hex Bolt
(1/4-5/16” large washer x 2, 1/4” lock nut)
Step 11: Attach Roof Panels to Frame
Part 3
x 3
Rafter
Corner
Roof Panel
Assembly
1/4-5/16”
Large Washer
1/4” Lock
Nut
1/4 x 2-3/4”
Hex Bolt
