Yardistry YM12810X - Secure Roof Corners; Fasten Roof Panel Assemblies

37 support@yardistrystructures.com
Hardware
8 x #8 x 2-1/2” Wood Screw
8 x #8 x 1” Pan Screw
A: Make sure middle Roof to Beam Brackets are lined up over centre mark and all are ush and tight to the
Beam Assemblies. Lift in centre if needed.
B: From outside the assembly attach Roof Panel Assemblies together at the Fascia Beam Assembly Ends with
two #8 x 2-1/2” Wood Screws per corner. A helper may need to lift the centre of the roof to bring the corners tight
together. (g. 15.1 and 15.2)
C: Align Roof Panel Assemblies to sit centred on Roof to Post Brackets then attach with two #8 x 1” Pan Screws
per bracket. (g. 15.3)
#8 x 1” Pan
Screw

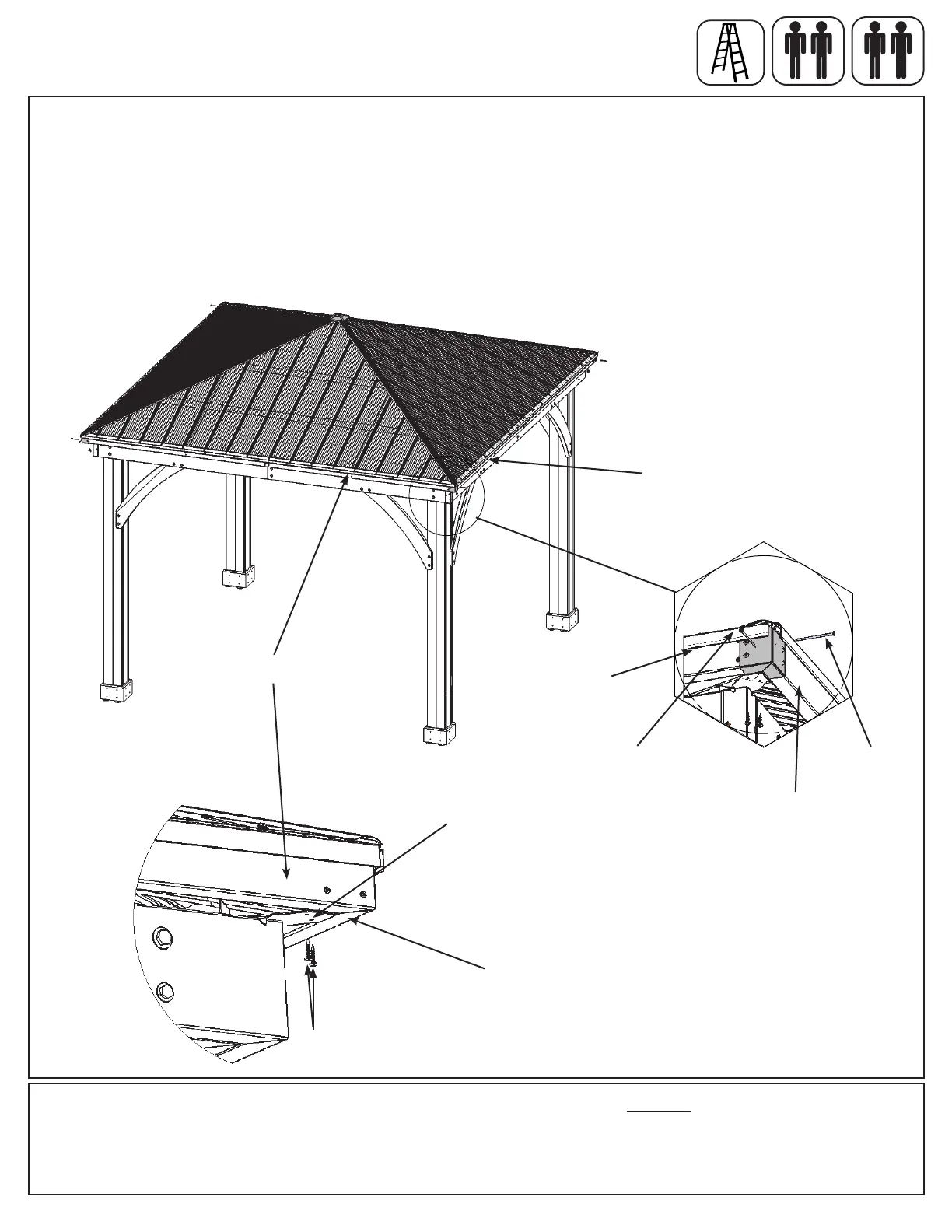

Fig. 15.1
Fig. 15.2
Fascia Beam
Assembly
Fascia Beam
Assembly
Fascia Beam
Assembly
Fascia Beam
Assembly
Roof to Post
Bracket
#8 x2-1/2” Wood
Screw
#8 x2-1/2”
Wood Screw
Fascia Beam
Assembly
Fig. 15.3
Step 15: Secure Roof Corners
x 3
