Step 14: Attach Roof Panels - Large Roof
Part 3
#8 x 2-1/4”
Wood Screws
Flush
(434) Top
(463)
Spacer Top
Fig. 14.6

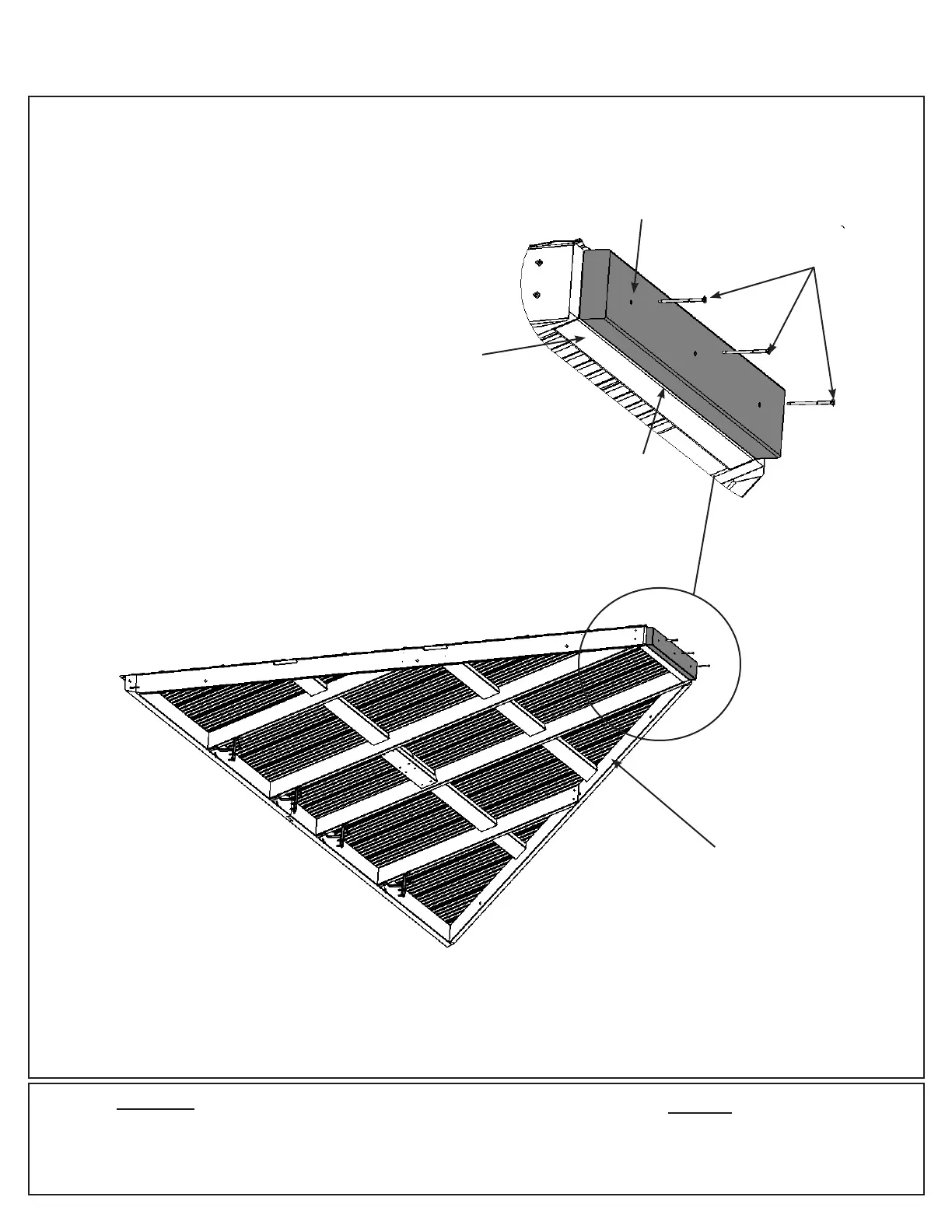

F: On one Large Roof Rafter Assembly place one (463) Spacer Top ush to the outside edges and centred on
(434) Top then attach with three #8 x 2-1/4” Wood Screws. (g. 14.5 and 14.6)
1 x (463) Spacer Top 31.8 x 81.6 x 574.7 mm (1-1/4 x 3-3/16 x 22-5/8”)
Wood Parts
Hardware
3 x #8 x 2-1/4” Wood Screws
Fig. 14.5
Large Roof Rafter
Assembly
