Yardistry YM12952 - Part 2 - Mid Posts

16 support@yardistrystructures.com

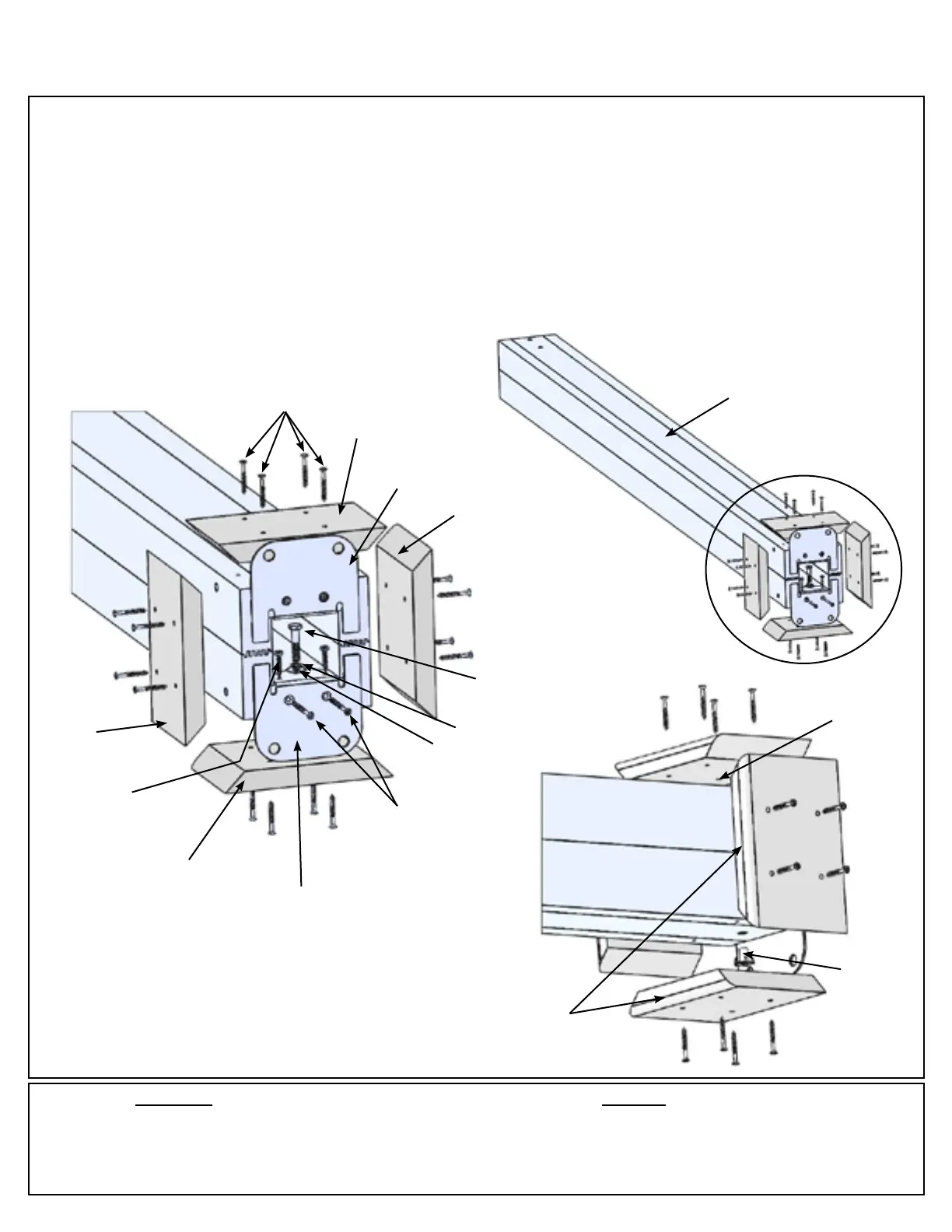

E: At the bottom of one (696) 6 x 6 Post insert one 5/16” T-Nut on the outside of two sides, as shown in F2.6.
F: At the bottom of the same (696) 6 x 6 Post place two Post Mounts tight to the bottom and inside faces on the
sides as shown in F2.4 and F2.5. Loosely attach with one 5/16 x 1-1/4” Hex Bolt (with 5/16” lock washer and 1/4-
5/16” large washer) per mount so they connect to the T-Nuts. From the bottom attach with two #8 x 1-1/2” Wood
Screws and two #10 x 1-1/4” Pan Screws per mount. Tighten bolts.
G: Flush to the bottom of (696) 6 x 6 Post place one (459) Plinth on each side, attach with four #8 x 1-1/2” Wood
Screws per plinth. Rounded edges on top. (F2.4, F2.5 and F2.6)
H: Repeat Steps E - G one more time to make two Mid Post Assemblies.
Wood Parts
F2.4
(459)
Plinth
2 x (696) 6 x 6 Post
8 x (459) Plinth
Top
Bottom
#8 x 1-1/2” Wood
Screws (x 2 per Post
Mount, from outside)
#8 x 1-1/2”
Wood Screws
(x 4 per Plinth)
(696) 6 x 6 Post
Post Mount
F2.5
F2.6
Rounded
Edge on Top
Hardware
40 x #8 x 1-1/2” Wood Screw
8 x #10 x 1-1/4” Pan Screw
4 x Post Mount
4 x 5/16” T-Nut
4 x 5/16 x 1-1/4” Hex Bolt
(with 5/16” lock washer, 1/4 - 5/16” large washer)
Post Mount
5/16” T-Nut
(x 2 per Post,
second T-Nut
on opposite
side)
1/4 - 5/16”
Large Washer
5/16” Lock
Washer
5/16 x 1-1/2” Hex Bolt
(x2 per Post Mount,
from inside)
(459)
Plinth
#10 x 1-1/4”
Pan Screws
(x 2 per Post
Mount, from
inside)
Step 2: Post Assemblies
Part 2 - Mid Posts
5/16” T-Nut
(not seen on
this side)
(459) Plinth
(459) Plinth
