Step 5: Frame Assembly and Anchoring
Part 6

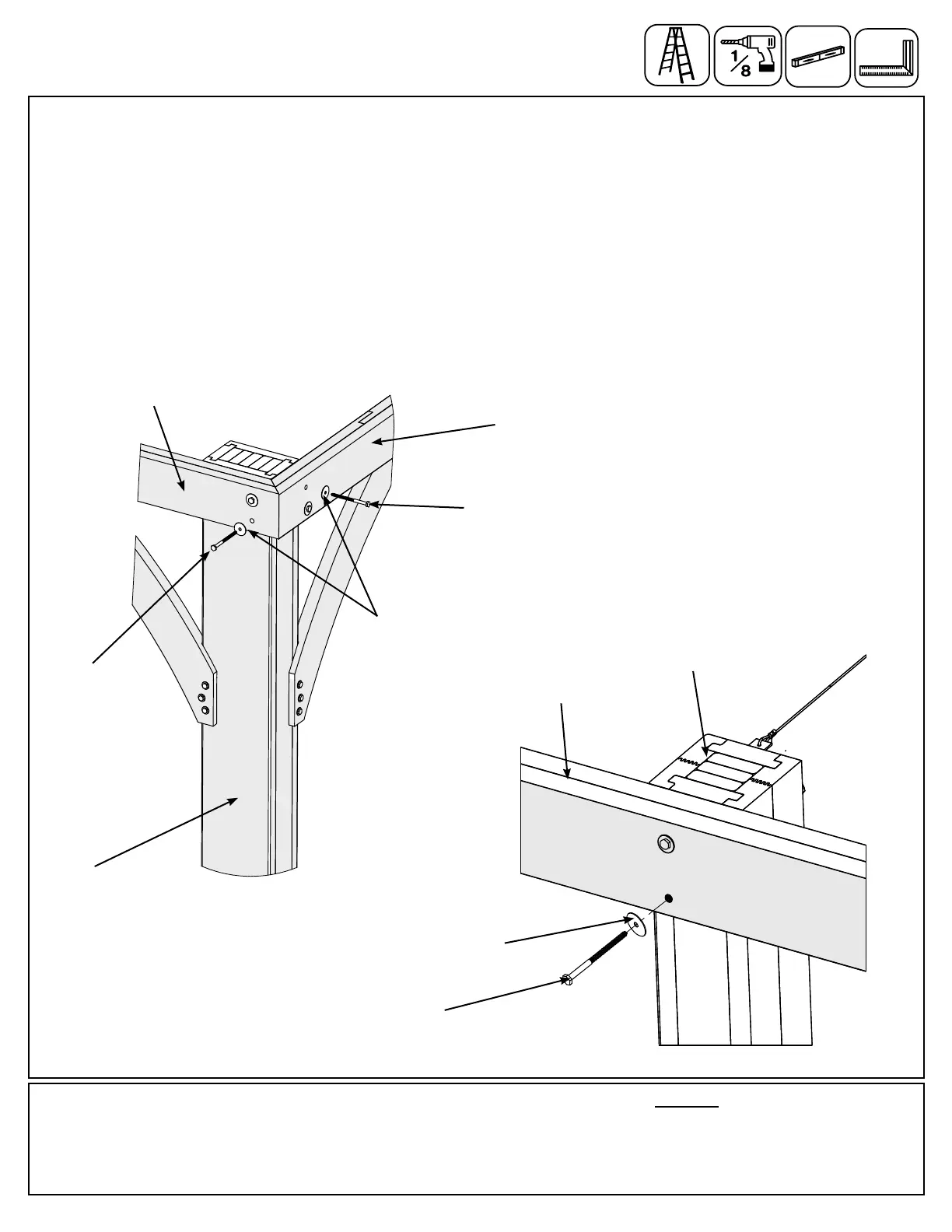

L: Attach Long and Short Beam Assemblies to Main Posts with two 5/16 x 4-3/4” Lag Screws (with 1/4-5/16” large
washer) per corner in the remaining holes. (F5.13)
M: Attach Long Beam Assembly to both Mid Posts through the bottom holes with one 5/16 x 4-3/4” Lag Screw (with
1/4-5/16” large washer) per post. (F5.14)
N: Depending on what you are placing the Gazebo on will determine how you anchor it to that surface. Please
refer to pages 6 and 7 for installation examples.
Any hardware or extra materials for
mounting will have to be purchased in advance.
Hardware
10 x 5/16 x 4-3/4” Lag Screw (1/4-5/16” large washer)
1/4-5/16”
Large Washer
5/16 x 4-3/4”
Lag Screw
5/16 x 4-3/4”
Lag Screw
Long Beam
Assembly
Short Beam
Assembly
Main
Post
1/4-5/16”
Large Washer
F5.13
Mid Post
Long Beam
Assembly
5/16 x 4-3/4”
Lag Screw
F5.14
