Yardistry YM12952 - Step 11: Attach Ridge Clips and Roof Edges - Small Roof; Roof Edge Attachment to Small Roof; Ridge Clip and Weather Seal Installation

38 support@yardistrystructures.com
20 x #7 x 18 mm Wood Screw
2 x Roof Edge Left 72.2 2 x Roof Edge Right 72.2
20 x #7 x 18 mm Wood Screw
2 x Roof Edge Left 72.2 2 x Roof Edge Right 72.2
20 x #7 x 18 mm Wood Screw
2 x Roof Edge Left 72.2 2 x Roof Edge Right 72.2
Tight at centre

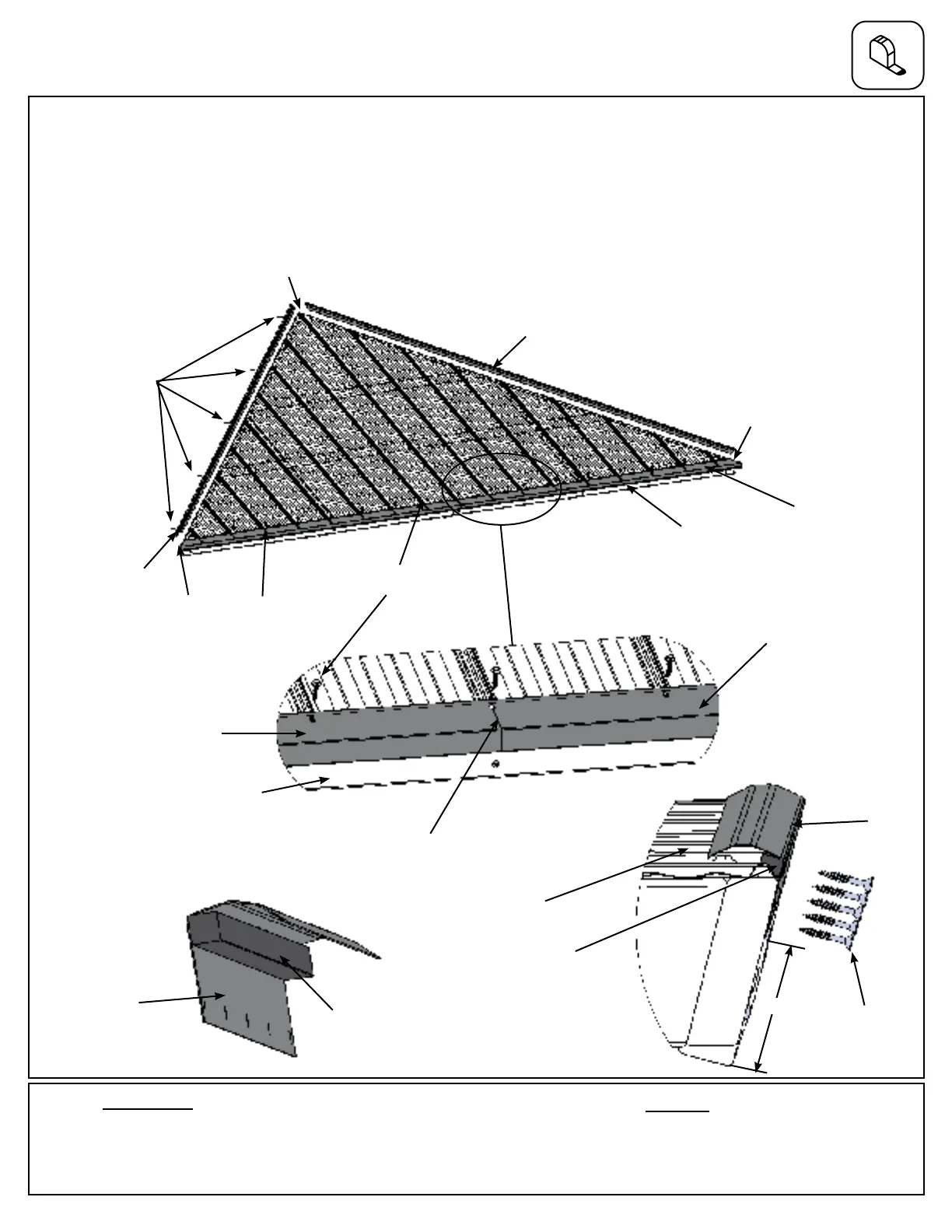

Step 11: Attach Ridge Clips and Roof Edges - Small Roof
Hardware
F11.1
34 x #8 x 1” Roong Screw
20 x #7 x 3/4” Wood Screw
A: Place one Roof Edge Left 72.2 and one Roof Edge Right 72.2 on the bottom of each Small Roof Rafter
Assembly so the ends are ush with the outside ends of the Fascia Beam Assembly and meet tight in the centre.
Attach both Roof Edges with 17 #8 x 1” Roong Screws per Small Roof Rafter assembly. (F11.1 and F11.2)
B: Place one Weather Seal on the inside of four Ridge Clip 102.5 then place one Ridge Clip 102.5 on each side
of each Small Roof Rafter Assembly so they cover the panels and bottom edge is 2-1/4” up from the bottom of the
Corner Rafters then attach with ve #7 x 3/4” Wood Screws per Ridge Clip 102.5. (F11.1, F11.3 and F11.4)
Weather
Seal
F11.2
#7 x 18 mm Wood
Screws (x 5 per side)
Panels
Components:
2 x Roof Edge Left 72.2
2 x Roof Edge Right 72.2
4 x Ridge Clip 102.5
4 x Weather Seal
Fascia Beam
Assembly
Flush
Flush
#8x 1” Roong
Screws (x 17)
Fascia Beam
Assembly
F11.3
Weather
Seal
Underneath,
Side View
F11.4
Side View
#7 x 3/4” Wood
Screws (x 5 per side)
Flush
Roof Edge
Left 72.2
Roof Edge
Right 72.2
Roof Edge
Left 72.2
Roof Edge
Right 72.2
Ridge Clip
102.5
Ridge Clip
102.5
Ridge Clip
102.5
Ridge
Clip
102.5
2-1/4”
