Yardistry YM12952 - Step 13: Attach Soffits - Corner Roof Assemblies; Soffit Installation on Corner Roofs

43 support@yardistrystructures.com
Important!.
Must be flush
to this end.
#8 x 1-1/2" Wood Screw x8
Soffit End x2
Y50000-690
Important!.
Must be flush
to this end.
#8 x 1-1/2" Wood Screw x8
Soffit End x2
Y50000-690
Important!.
Must be flush
to this end.
#8 x 1-1/2" Wood Screw x8
Soffit End x2
Y50000-690

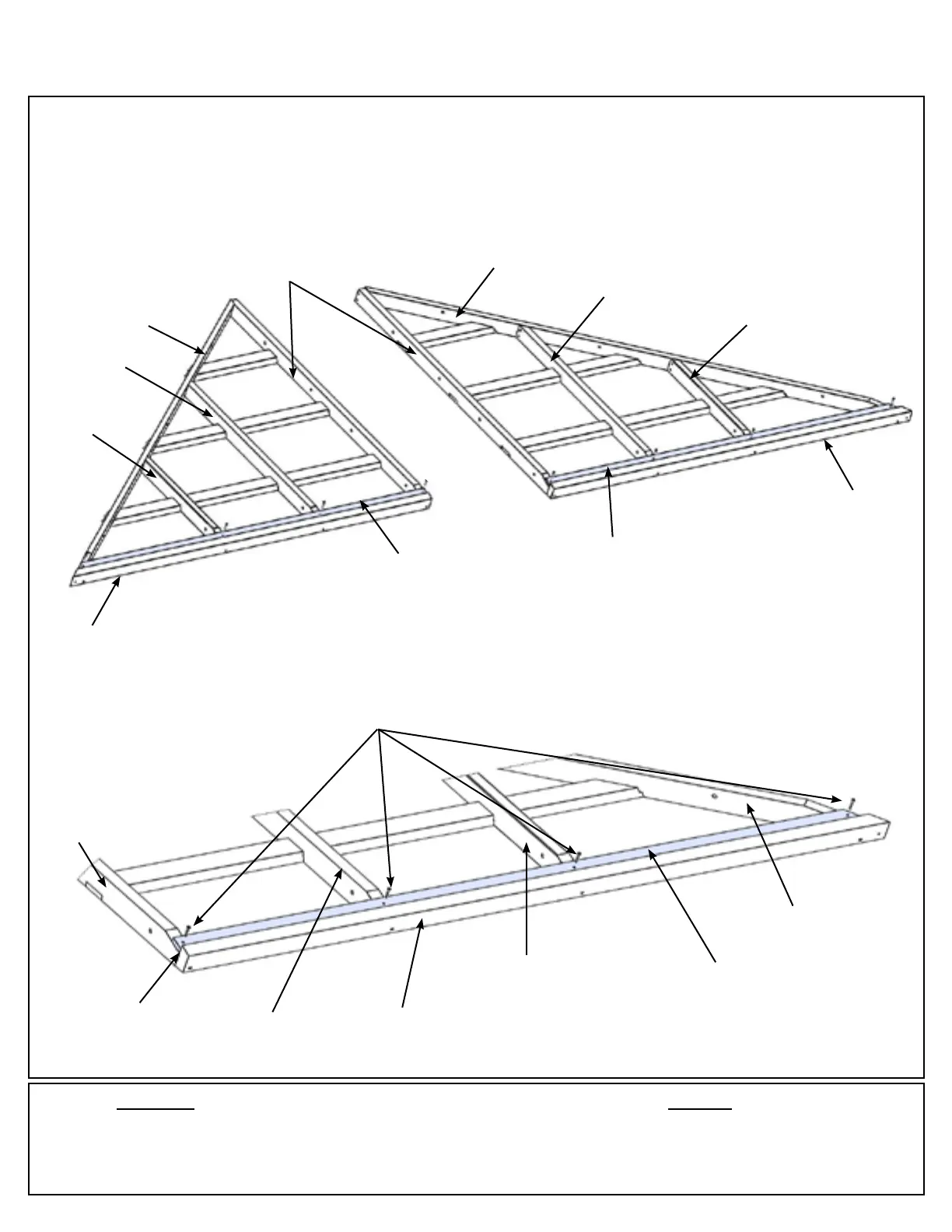

A: Turn over each Corner Roof Assembly then place one (690) Soft End tight to the top of each (676) Left End
Fascia and each (677) Right End Fascia. Each (690) Soft End must be ush with the outside edge of (675)
Middle Rafter. Attach (690) Soft Ends to each (675) Middle Rafter, (623) Rafter Corner Right, (624) Rafter
Corner Left, (629) Rafter Short RT, (630) Rafter Short LT, (632) Rafter Centre RT and (631) Rafter Centre LT with
four #8 x 1” Pan Screws per soft. (F13.1, F13.2 and F13.3)
Step 13: Attach Softs - Corner Roof Assemblies
HardwareWood Parts
F13.1
16 x #8 x 1” Pan Screw
4 x (690) Soft End
F13.3
(624) Rafter
Corner Left
(623) Rafter
Corner Right
(629) Rafter
Short RT
(632) Rafter
Centre RT
(630) Rafter
Short LT
(631) Rafter
Centre LT
(675) Middle
Rafter
(690) Soft
End
(677) Right End
Fascia
Flush and
Tight
Back View
F13.2
Back View
(676) Left End
Fascia
(675) Middle
Rafter
(624) Rafter
Corner Left
(631) Rafter
Centre LT
(676) Left End
Fascia
(690) Soft
End
(630) Rafter
Short LT
(690) Soft
End
Left Corner
Roof Assembly
Right Corner
Roof Assembly
#8 x 1” Pan
Screws
