Yardistry YM12952 - Step 16: Attach Roof Edges - Corner Roof Assemblies; Left Corner Roof Edge Attachment; Right Corner Roof Edge Attachment

46 support@yardistrystructures.com
Assembly x2
Roof Ridge Right -Y010XX-135
Roof Ridge Left -Y010XX-134 #8 x 1 Roofing Screw x8
#8 x 1 Roofing Screw x8
Assembly x2
Roof Ridge Right -Y010XX-135
Roof Ridge Left -Y010XX-134 #8 x 1 Roofing Screw x8
#8 x 1 Roofing Screw x8
Assembly x2
Roof Ridge Right -Y010XX-135
Roof Ridge Left -Y010XX-134 #8 x 1 Roofing Screw x8
#8 x 1 Roofing Screw x8

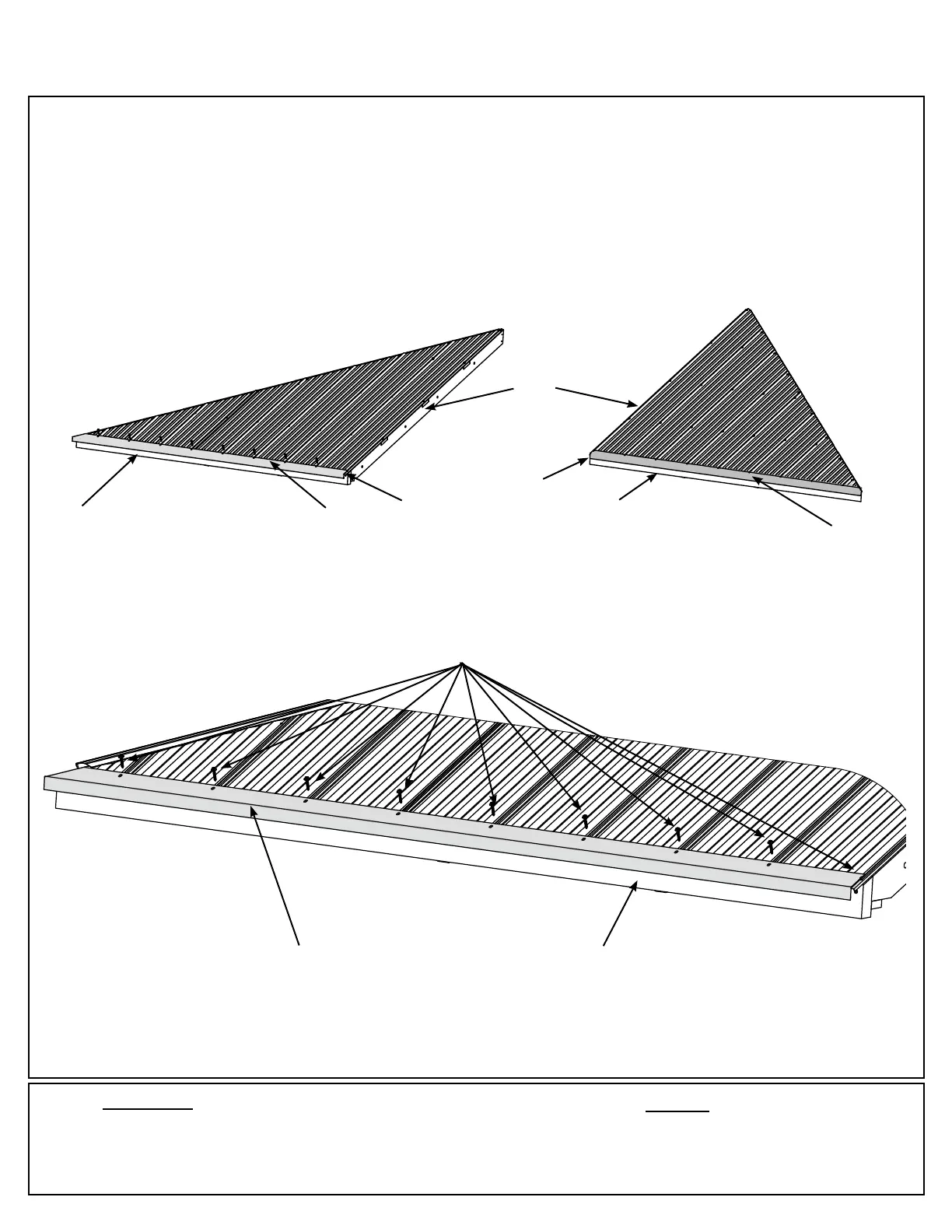

Step 16: Attach Roof Edges - Corner Roof Assemblies
Hardware
F16.1
36 x #8 x 1” Roong Screw
A: On the bottom of each Left Corner Roof Assembly place one Roof Edge Left 72.2 so the holes in the Roof
Edge Left line up with the holes in the panels then attach Roof Edges with nine #8 x 1” Roong Screws per Left
Corner Roof Assembly. (F16.1 and F16.3)
B: On the bottom of each Right Corner Roof Assembly place one Roof Edge Right 72.2 so the holes in the Roof
Edge Right line up with the holes in the panels then attach Roof Edges with nine #8 x 1” Roong Screws per
Right Corner Roof Assembly. (F16.2 and F16.3)
F16.2
Components:
2 x Roof Edge Left 72.2
2 x Roof Edge Right 72.2
Flush
#8x 1” Roong
Screws
F16.3
Flush
Roof Edge 72.2
(Left/Right)
Roof Edge
Left 72.2
Roof Edge
Right 72.2
(677) End
Fascia Right
(675) Middle
Rafter
(676) End
Fascia Left
End Fascia (Left/Right)
Left Corner
Roof Assembly
Right Corner
Roof Assembly
