Yardistry YM12952 - Part 2: Ridge Cap Screw Reattachment

68 support@yardistrystructures.com
Roof Edge Centre - Y010XXX-127
x4
Roof Edge Centre - Y010XXX-127
x4
Roof Edge Centre - Y010XXX-127
x4
Step 30: Attach Ridge Caps to Roof Panels
Part 2

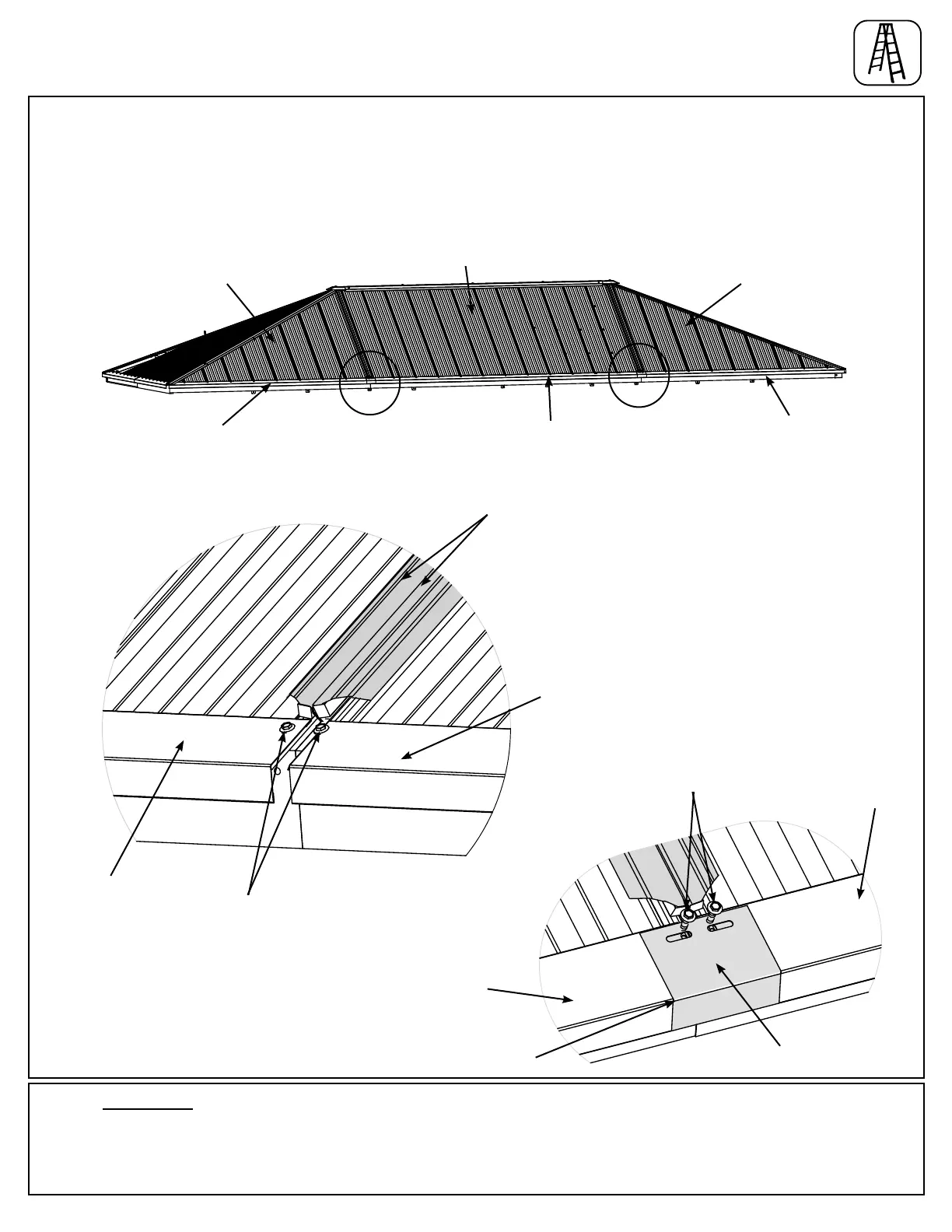

C: Remove the #8 x 1” Roong Screws from each Ridge Edge Left, Ridge Edge Middle and Ridge Edge Right
where each Corner Roof Assemby and each Large Roof Assembly connect. Two screws per location. (F30.6
and F30.7)
D: Place one Roof Edge Centre over each connecting seam, tight to Ridge Edges and attach with previously
removed screws. (F30.6 and F30.8)
Components:
4 x Roof Edge Centre
Ridge Clip
73.5
F30.6
F30.7
F30.8
Ridge Edge
Left
Large Roof Assembly
Roof Edge
Centre
Remove these screws.
Ridge Edge
Middle
Ridge Edge
Right
Ridge Edge
Left
Ridge Edge
Middle
Reattach screws here.
Tight
Ridge Edge
Left
Ridge Edge
Middle
Corner Roof
Assembly
Corner Roof
Assembly
