Yardline BRAXTON - Page 48

46

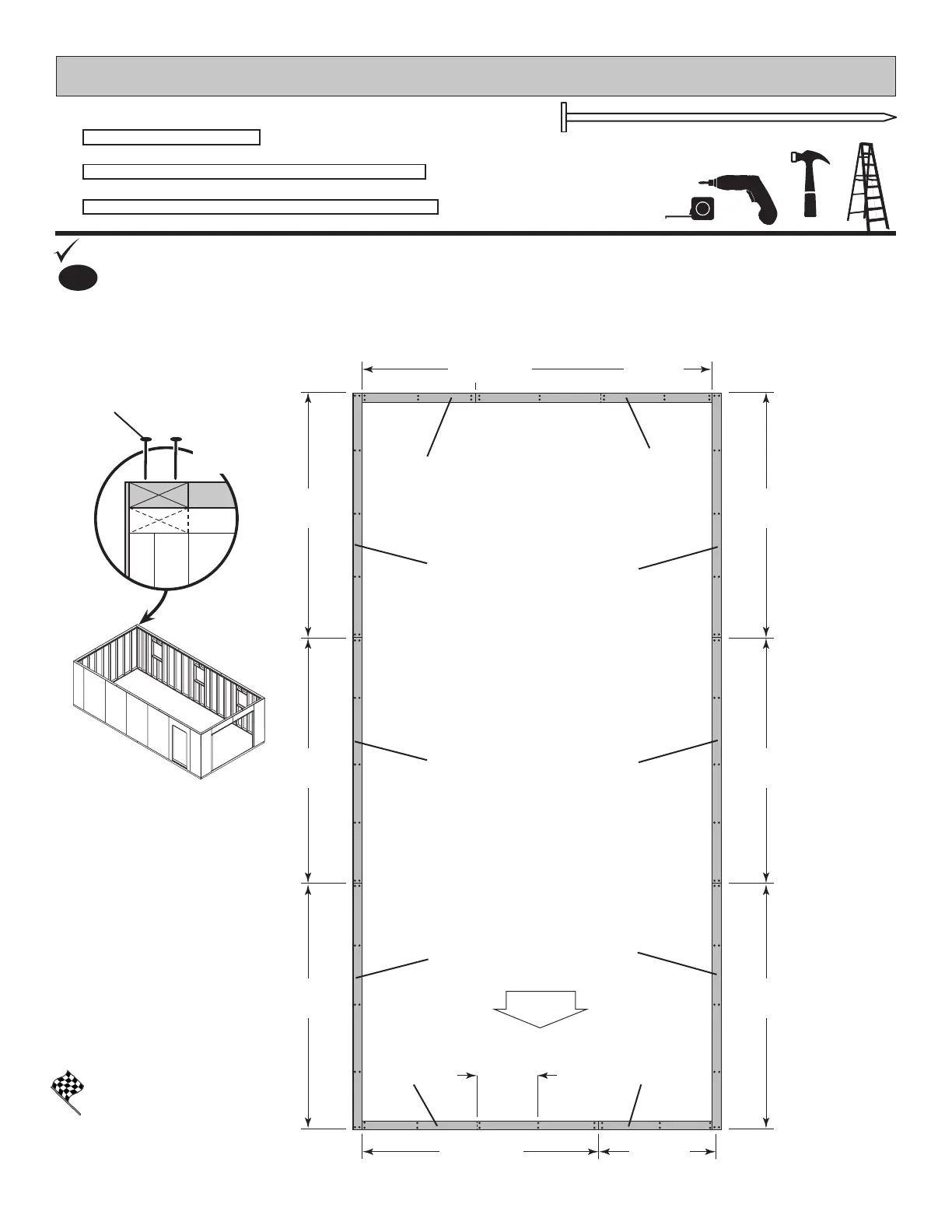

WALL DOUBLERS
3" (7,6 cm)

1
BEGIN
Orient parts on top of wall frames.
You have nished securing
the wall doublers.
FINISH

Secure from top using (2) 3" nails spaced every 24" 

2 x 4 x 92-5/8" (5,1 x 10,2 x 235,3 cm)
UL

2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
TP
PARTS REQUIRED:

2 x 4 x 44-1/2" (5,1 x 10,2 x 113 cm)
STL
DOUBLE
DOOR
STL
STL
UL
UL
TP
TP
TP
TP
TP
TP
96"
(243,8 cm)
96"
(243,8 cm)
96"
(243,8 cm)
96"
(243,8 cm)
96"
(243,8 cm)
96"
(243,8 cm)
92-5/8"
(235 cm)
92-5/8"
(235 cm)
Nail 24" (61cm)
TYP.
44-1/2"
(113 cm)
44-1/2"
(113 cm)

Nails
1
