Yardline BRAXTON User Manual

Two Nails
Panel 3/8"
(1 cm)
Rafter


53
12" (30,5 cm)
6"
(15,2 cm)

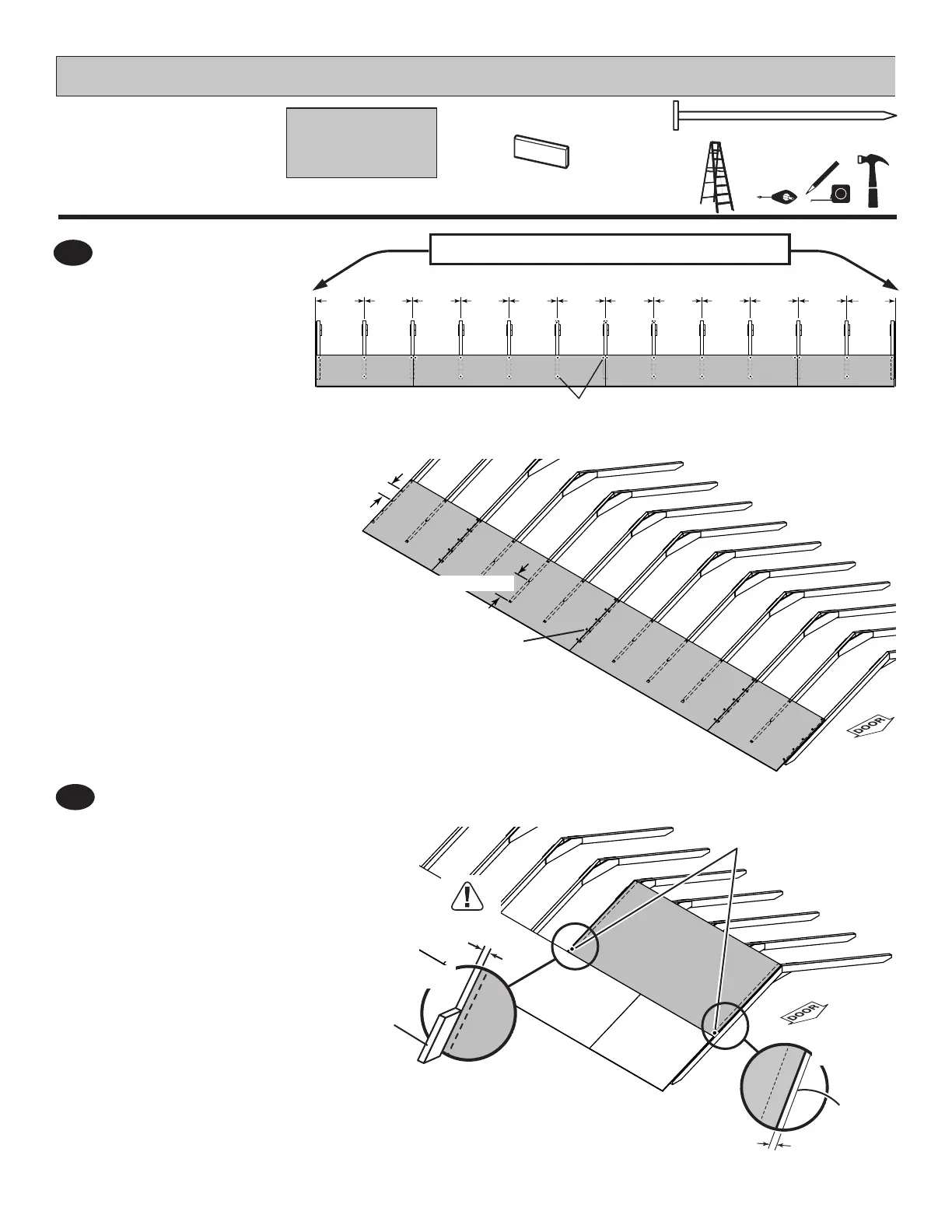

Secure the roof panels using
2" nails 6" apart on edges
and 12" apart inside panel.
6
ROOF PANELS
PARTS REQUIRED:
2" (5,1 cm)


7/16 x 48 x 96" OSB
(1,1 x 121,9 x 243,8 cm OSB)
3/4"
GAUGE BLOCK
GAA
Keep spacing between the
center of each rafter and
secure using (2) 2" nails into
each rafter .
24"
(60,9 cm)
24-3/4"
(57,6 cm)
24-3/4"
(57,6 cm)
24"
(60,9 cm)
24"
(60,9 cm)
24"
(60,9 cm)
24"
(60,9 cm)
24"
(60,9 cm)
24"
(60,9 cm)
24"
(60,9 cm)
24"
(60,9 cm)
24"
(60,9 cm)
NOTE: Measurements from outside of panels

3/4"
(1,9 cm)

Block

Place 1st upper panel ush to
installed panels. Panel should be 3/8" from
the outside edge of the rst rafter .
Use the 3/4" gauge block GAA to center
panel over the rafter .
Secure panel using (2) 2" (5,1 cm) nails in
the corners as shown.
7




