CONDITIONS WHICH REQUIRE CHAIN AND GUIDE BAR MAINTENANCE:
• Saw cuts to one side or at an angle.
• Saw has to be forced through the cut.
• Inadequate supply of oil to the bar and chain.
Check the condition of the guide bar each time the chain is sharpened. A worn guide bar will
EBNBHFUIFDIBJOBOENBLFDVUUJOHEJGªDVMU

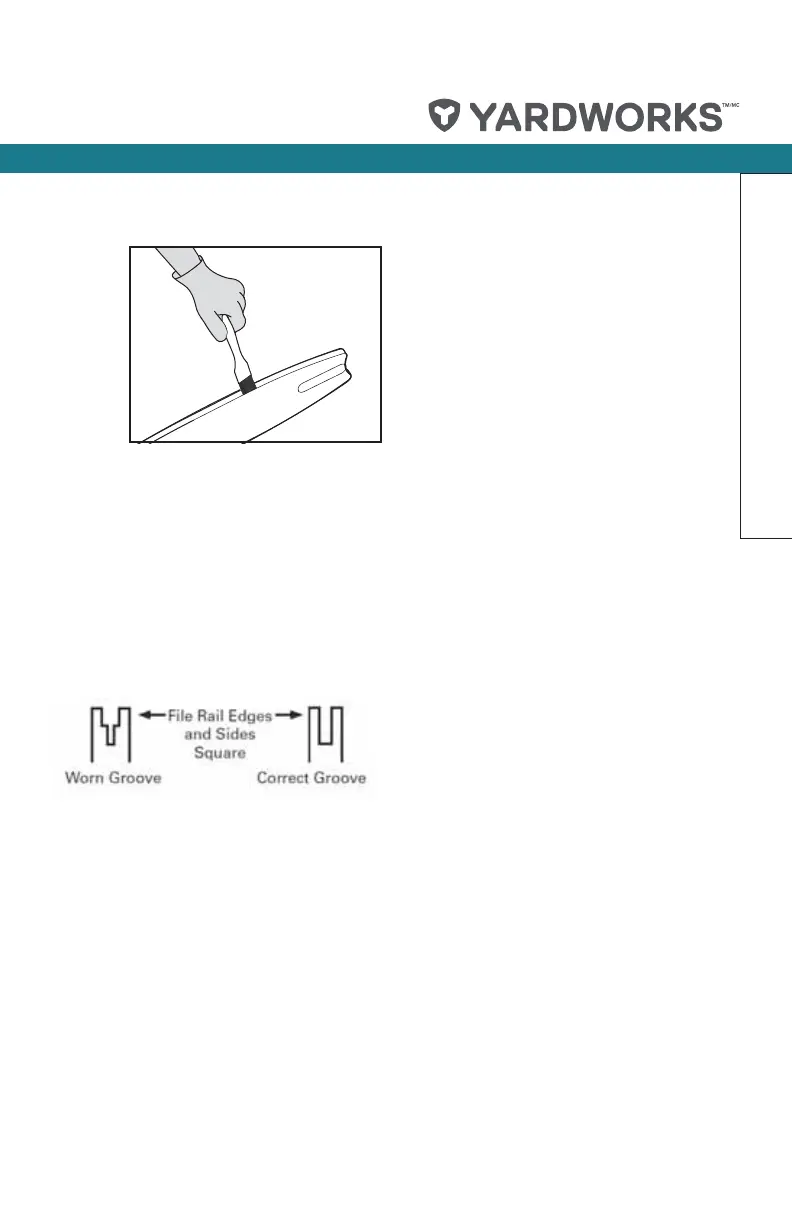

After each use, clean all sawdust from the Guide Bar and sprocket hole.
8IFOSBJMUPQJTVOFWFOVTFB«BUªMFUPSFTUPSFTRVBSFFEHFTBOETJEFT
Replace the guide bar when the groove is worn, the guide bar is bent or cracked, or when
excess heating or burring of the rails occurs. If replacement is necessary, use only the guide
CBSTQFDJªFEGPSZPVSTBXJOUIFSFQBJSQBSUTMJTUPSPOUIFEFDBMMPDBUFEPOUIFDIBJOTBX
Replacing/Changing Chain and Guide Bar
Replace chain when cutters are too worn to sharpen or when chain stops.
Only use replacement chain noted in this manual.
Inspect guide bar before replacing chain.
A worn or damaged guide bar is unsafe and will damage chain. It will also make cutting harder.
Fit the chain and guide bar as described in “Tensioning Chain”. The circular groove of the
guide bar will wear particularly on the lower edge with time. When replacing the chain turn the
chain bar 180° to allow even wear, thus extending chain bar life.
Check drive sprocket. If it is worn out or damaged due to strain, have it exchanged by an
authorized service dealer.
If the chain bar is worn out or damaged, take the chain tensioning catch off the bar by
MPPTFOJOHUIFTDSFXDPVOUFSDMPDLXJTF5IFOªUUIFUFOTJPOJOHDBUDIJOUPUIFOFXCBSCZ
