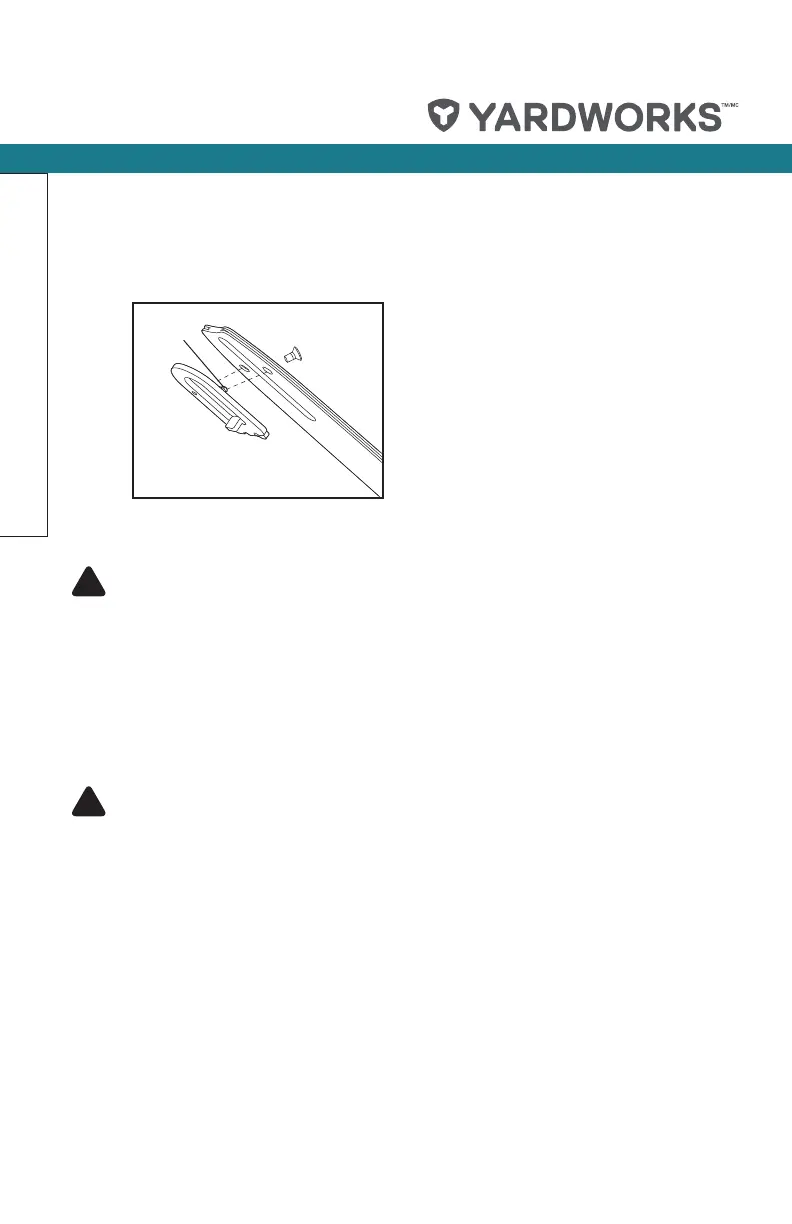

UJHIUFOJOHUIFTDSFXDMPDLXJTF5IFQSPUSVEJOHDBUDIBNVTUCFªUUFEJOUPUIFCBSIPMF4FF
Fig. V)
SHARPENING SAW CHAIN
!
WARNING:
Unplug the chainsaw from power source before servicing. Severe injury or death could
occur from electric shock or body contact with moving chain.
Cutting edges on chain are sharp. Use protective gloves when handling chain.
Keep chain sharp. Your saw will cut faster and more safely. A dull chain will cause undue
sprocket, guide bar, chain, and motor wear. If you must force chain into wood and cutting
creates only sawdust with few large chips, chain is dull.
LUBRICATING SPROCKET
!
WARNING
Wear heavy-duty gloves when performing any maintenance or service to this tool.
Always remove the battery pack before performing any service or maintenance on this
tool.
NOTE:
It is not necessary to remove the chain or bar when lubricating the guide bar sprocket.
1. Clean the bar and sprocket
6TJOHBHSFBTFHVOJOTFSUUIFUJQPGUIFHVOJOUPUIFMVCSJDBUJPOIPMFBOEJOKFDUHSFBTFVOUJM
it appears at the outside edge of the sprocket tip. (See Fig. W)
3. To rotate the sprocket pull the chain by hand until the ungreased side of the sprocket is in
line with the grease hole. Repeat the lubrication procedure.
