18. Replace the washer and the screw.
washer and screw
13
MAINTENANCE
Impellor replacement
13. Place the pulley back onto the impellor
shaft.
16. Replace the pulley support plate and the
3 retaining screws.
17. Replace and tighten the impellor shaft
washer and nut.
19. Place the lower spring into position and
slide the side cover up using slight
pressure to hold the spring in place.
20. Replace and tighten the remaining screws
and the nut and washer.
21. Re-install the impellor shaft nut and
washer on the right hand side, and
tighten.
14. Be sure to route the belt correctly, as
shown.
15. Replace the 2 spacer washers on the
impellor shaft.

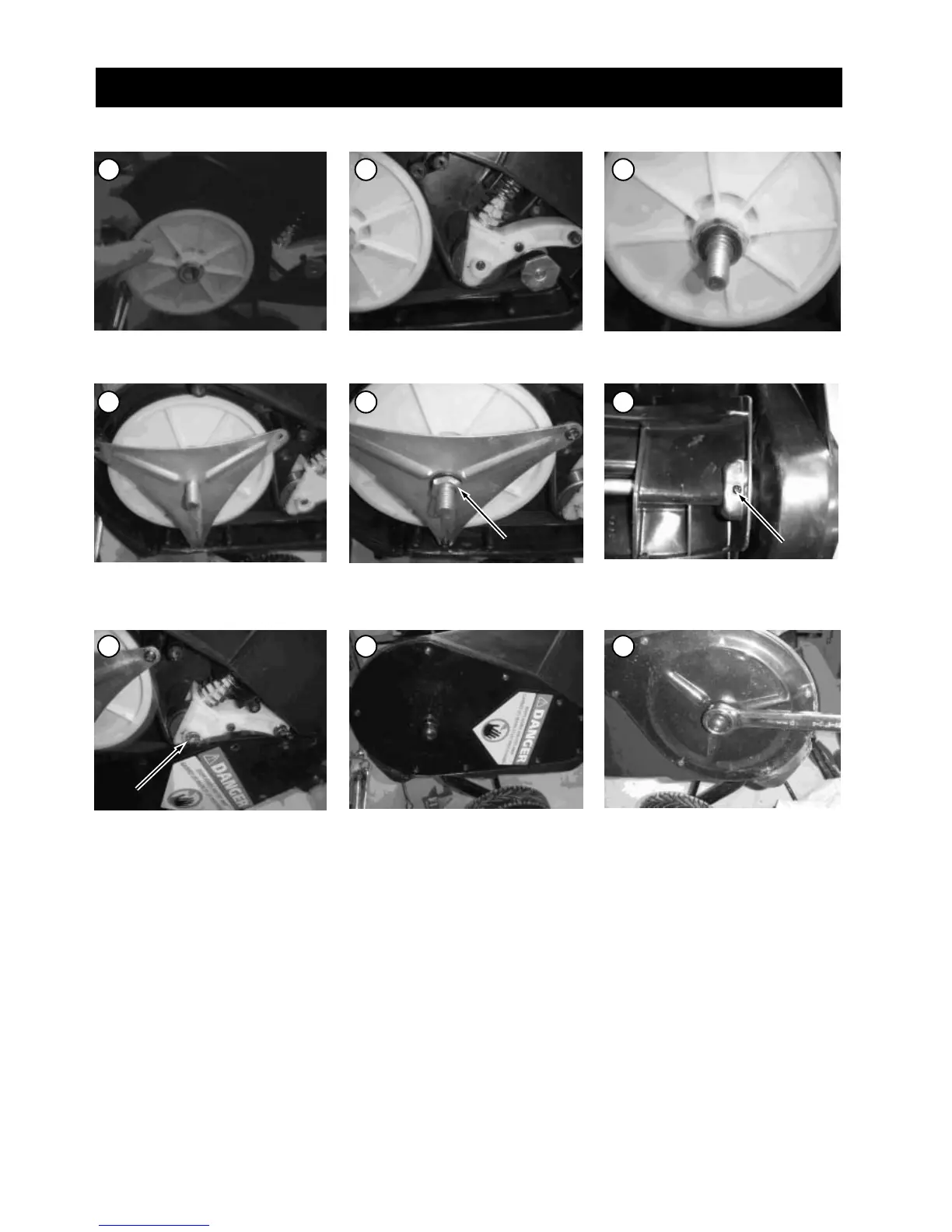

13 14 15
16 17 18
19 20 21
impellor shaft washer and nut
spring
