model no. 060-1983-0 | contact us: 1.866.523.5218
16

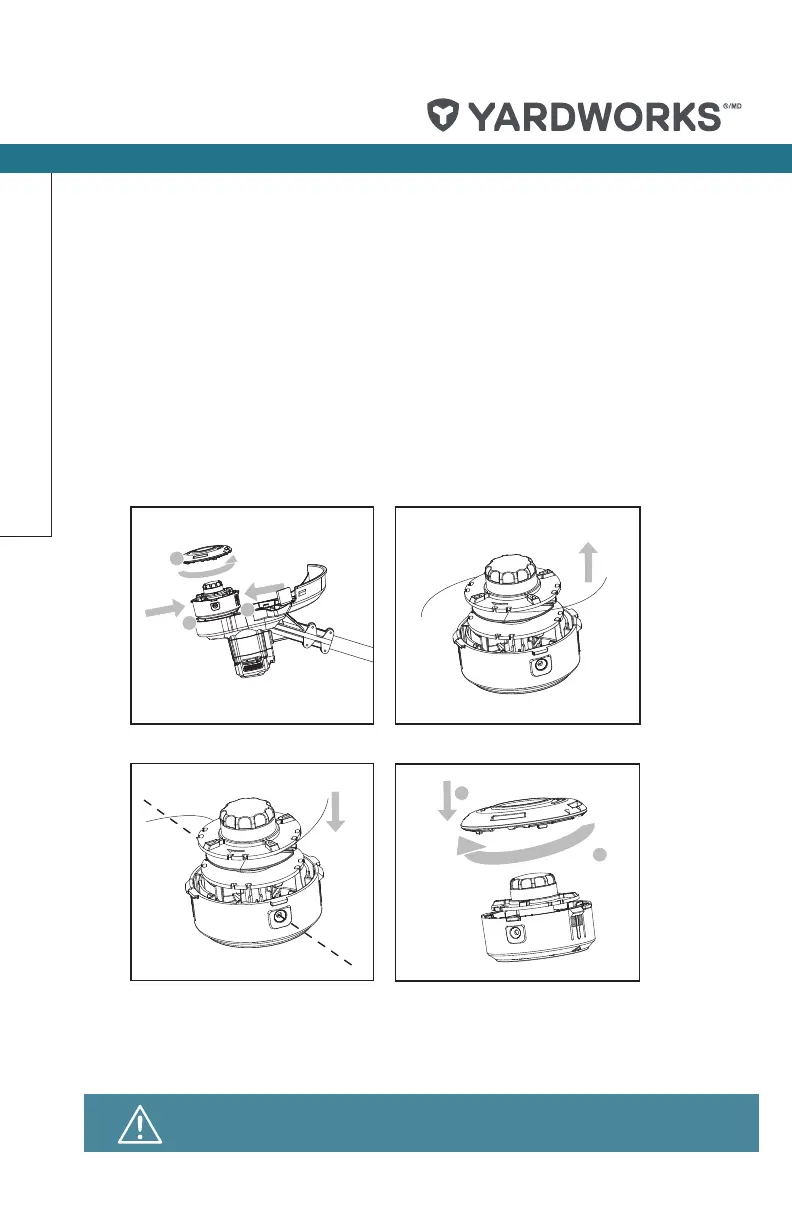

4. TO REPLACE THE SPOOL AND LINE
1) For your convenience, it is recommended you buy a replacement spool with line.
2) Press and hold in the two cap release latches. Loosen the cap by rotating it counter-
clockwise. Pull cap away from the spool holder. (see Fig. I1.)
3) Remove old spool. (see Fig. I2.)
4) Place new spool into cutting head. Release one line from cleat and feed line through
eyelet. (see Fig. I3.)
5) Replace the cap on the spool holder and turn the cap clockwise to tighten. (see Fig. I4.)
NOTE: If required, line can be fed out manually. Gently pull out the 2 lines out until the lines
reach the line cutter. If the line extends past the line cutter, too much line has been fed out. If
too much line is fed out, remove the spool cap and click spool counter-clockwise until the line
is at the desired length.
A2
A1
B
E
E
G1
F
G3
G2
H
G4
I2
I1
I4
I3
J1
J2
C2
C1
1
2
1
2
1
1
2
Locking/
Release knob
Guide recess
13
14
30
0
2
1
A2
A1
B
E
E
G1
F
G3
G2
H
G4
I2
I1
I4
I3
J1
J2
C2
C1
1
2
1
2
1
1
2
Locking/
Release knob
Guide recess
13
14
30
0
2
1
A2
A1
B
E
E
G1
F
G3
G2
H
G4
I2
I1
I4
I3
J1
J2
C2
C1
1
2
1
2
1
1
2
Locking/
Release knob
Guide recess
13
14
30
0
2
1
NOTE: Remove battery prior to replacing the spool and line.
Operation
