Guard
(Fig.
Fig. D
D)
2
1
To avoid injury, always remove the battery pack before installing the guard, changing a cutting line, or making any adjustments.
If the guard is damaged, do not use the grass trimmer until it is replaced.
NOTE: Install the protective guard before operating the grass trimmer. It cannot be removed or disassembled.

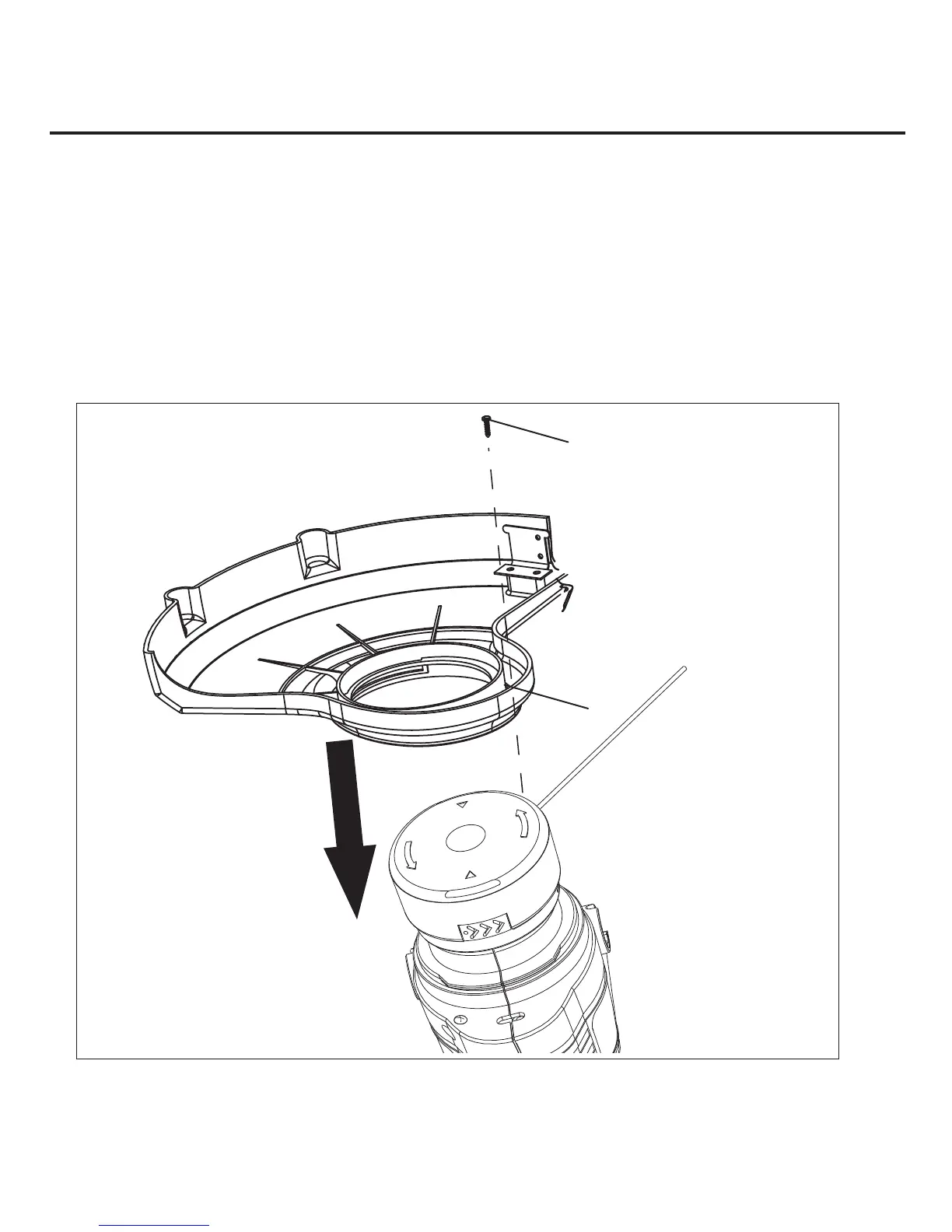

1. Remove the battery pack.
2. Invert the grass trimmer to access the trimmer head.
3. Using a Phillips head screwdriver, remove the pre-installed screw (1) from the trimmer head.
4. Place the guard (2) on to the trimmer head and turn the guard 45° following the track on the head.
5. Align the screw hole on the guard with the screw hole on the trimmer head.
6. Insert the screw into the trimmer head, fastening the guard in place.
(1) DOWN
ASSEMBLY INSTRUCTIONS
