Yardworks Grass trimmer/edger - Auxiliary Handle; Assemble Two Halves of Boom

12
To avoid injury, adjust the auxiliary handle for optimum control and balance. Do not overreach when operating the
grass trimmer. Keep proper balance at all times for better control of the tool in unexpected
situations.
1. Turn the handle lock knob (1) counter-clockwise several turns to loosen the auxiliary handle (2).
2. Adjust the handle position to provide the best level of balance and control for the operator.
3. Securely lock the handle in position by turning the knob clockwise.
4. Before operating the grass trimmer, make sure the
auxiliary handle is tightly locked into position.
WARNING
Fig. E2
1
2

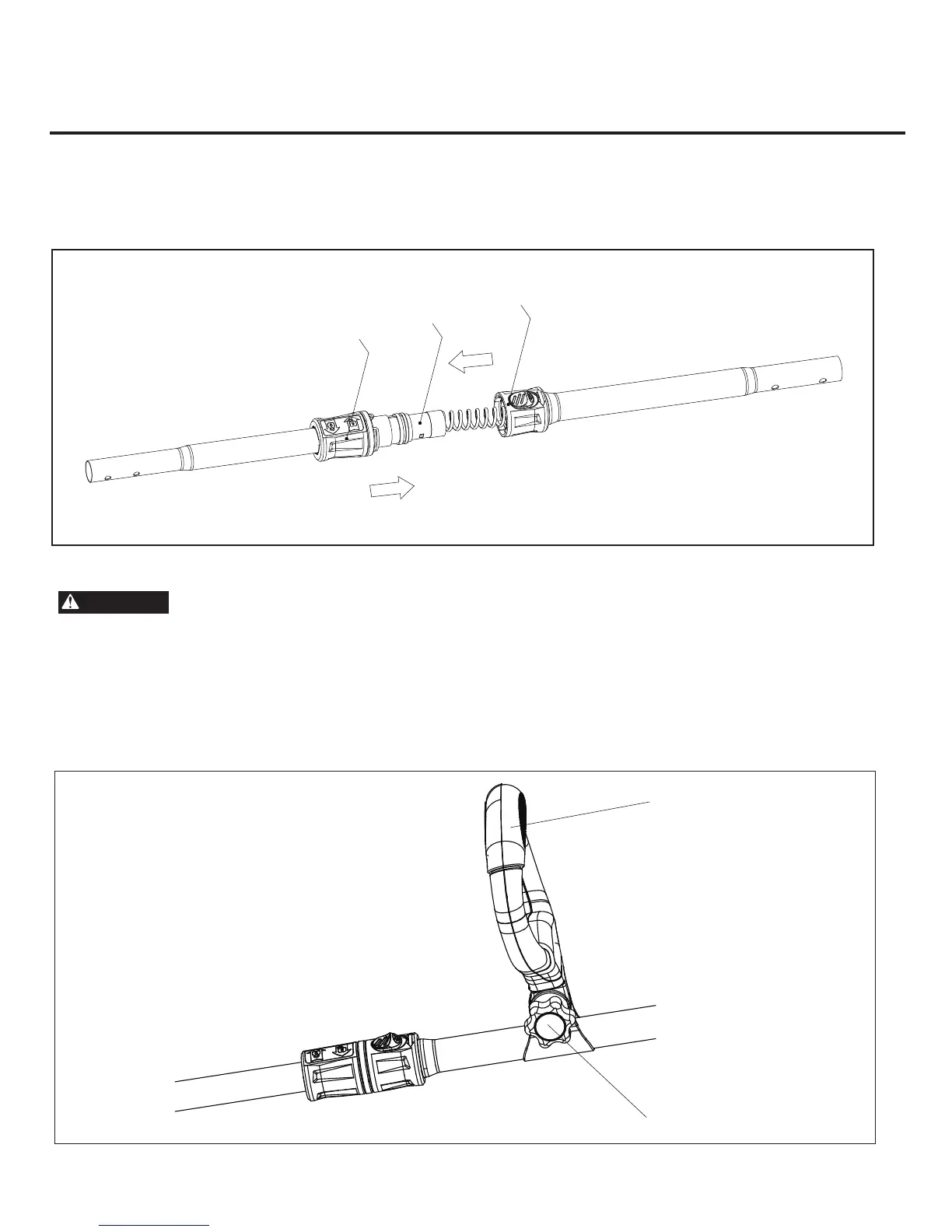

ASSEMBLY INSTRUCTIONS
Auxiliary handle (Fig. E2)
Fig. E1
1
3
2
1.Insert the lower shaft(3) into upper shaft(2).
2.Then turn the upper shaft(2) until lock button clicks into place.
3.Turn the lower shaft(3) collar until locked into place.
Assemble the two halves of the boom(Fig E1)
