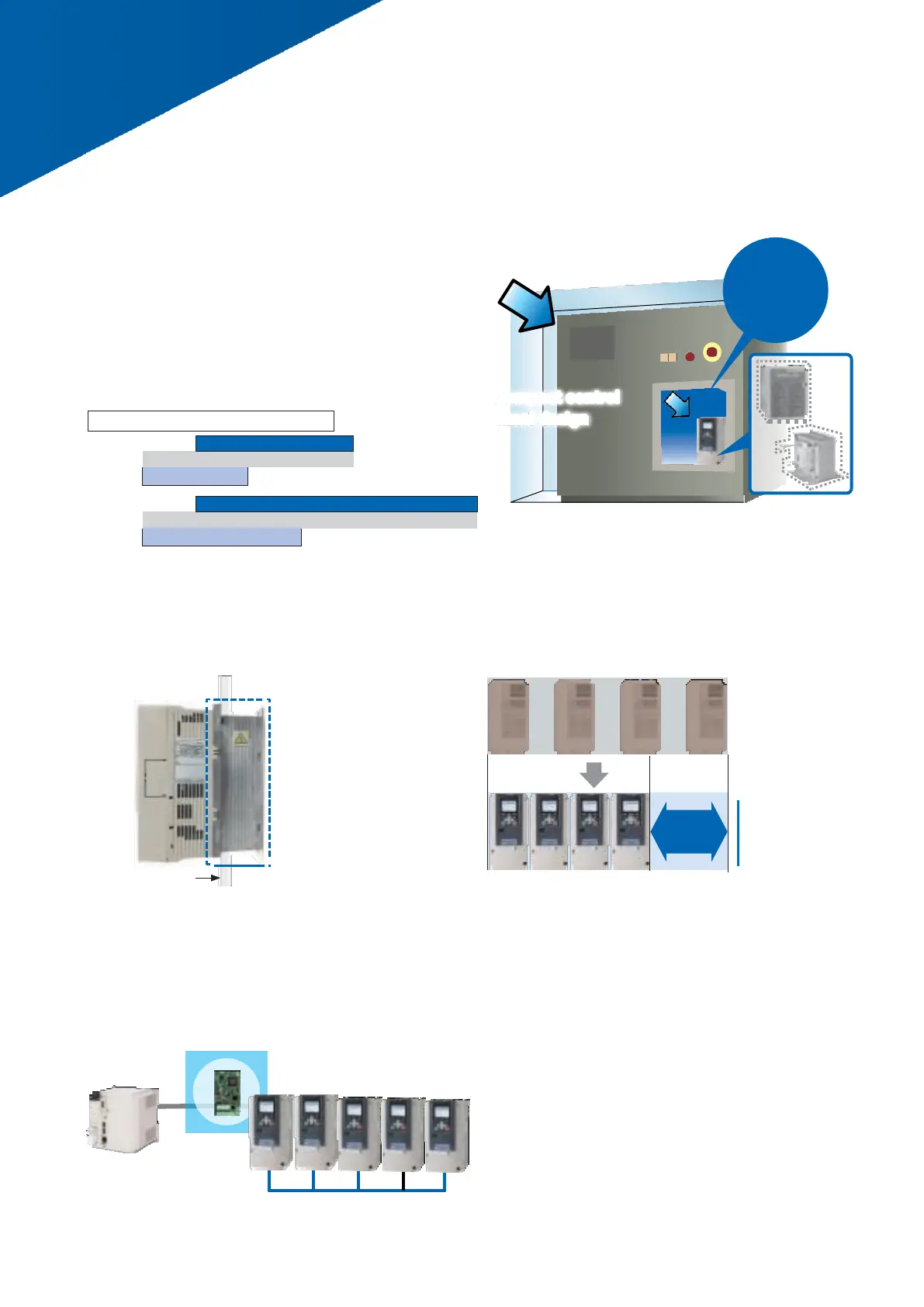

Built
-
in Braking Transistor and DC Reactor
Minimal Installation Space
Braking Transistor / DC Reactor Built
-
in
Harmonics resulting from built
-
in DC reactors are
taken into consideration. The braking transistor
is also built in to eliminate the need for a stand
-
alone braking unit. This reduces a drive
ʼ
s footprint
by approximately 45% in comparison with the
conventional drives, which enables the design for
more compact control panels.
200 V
class
400 V
class
External Heatsink
The drive heatsink can be installed outside of the
Note
:
Comparison with our conventional models.
In this case, a
400
V
110
kW model is used as an example.
Reductions in footprints vary depending on the capacity.
Side
-
by
-
Side Installation
Multiple drives can be installed in close proximity
panel, and the control panel can be minimized.
(
side
-
by
-
side installation
)
.
Note
:
Derating must be considered.
(
ex. 200 V class 0.4 kW
)
te
:
An attachment may be
needed depending on the
drive capacity.
Refer to pages 38 to 39 for
more information.
Reduced Number of Parts
The network protocol for industrial use has been
converted to RS
-
485 to enable control of up to
five drives from a single communication option.
Compatible Models
:
CH70A2003 to 2075
(
200 V class 0.4 to 18.5 kW
)
CH70A4002 to 4039
(
400 V class 0.4 to 18.5 kW
)
*
:
At least 30 mm of space is needed if installed near a wall.
Enhanced Communication Option Card
A variety of field networks, including
MECHATROLINK
-
II
, MECHATROLINK
-
III
,
PROFIBUS
-
DP, DeviceNet, CC
-
Link, CANopen,
LONWORKS, including Industrial Ethernet, such
as EtherNet/IP, can be supported with the use of
one communication option card.
Note
:
MECHATROLINK is a trademark of MECHATROLINK Members Association.
PROFIBUS is a trademark of PROFIBUS Nutzerorganisation e.V.
DeviceNet is a trademark of ODVA.
Ethernet is a trademark of Fuji Xerox Co., Ltd.
RS
-
485
Reduced
installation
space*
Reduces a
driveʼs footprint
by approximately
45
%
Compact control
panel design
Connected by RS
-
485.
Supported by all capacities.
Braking Transistor Built
-
in
Braking Transistor Built
-
in
