5 Component Names and Functions
YASKAWA TOEPC71061723A YASKAWA AC Drive CR700 Quick Start Guide 13

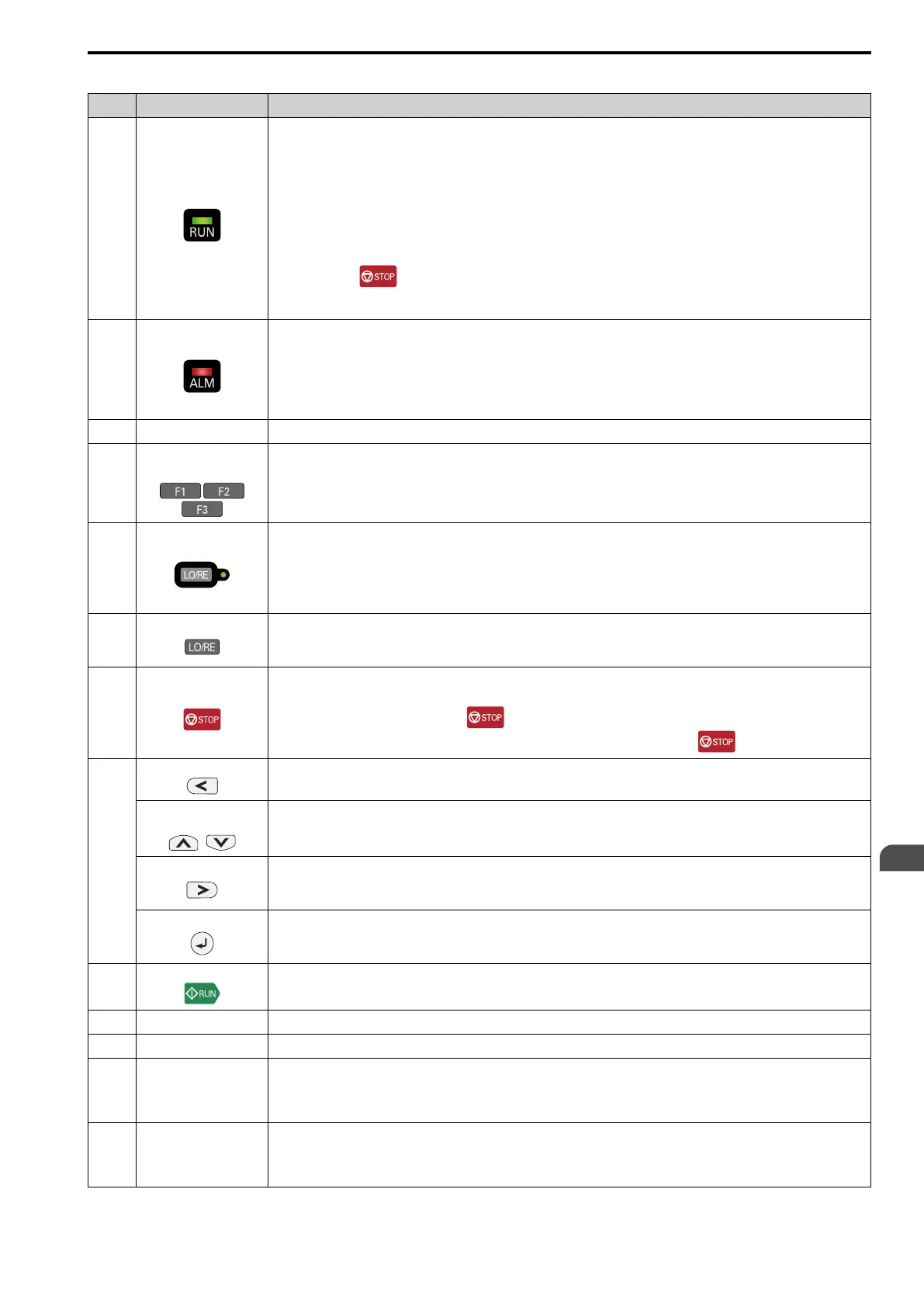

Table 5.1 Component Names and Functions
No. Name Function
A
RUN LED
Illuminates to show that the drive is operating the motor.
The LED turns OFF when the drive stops.
Flashes to show that:
• The drive is decelerating to stop.
• The drive received a Run command but the frequency reference is 0 Hz.
Flashes quickly to show that:
• The drive received a Run command from the MFDI terminals when the drive is not in Drive Mode.
• The drive received a Fast Stop command.
• The safety function shuts off the drive output.
• The user pushed on the keypad while the drive is operating in REMOTE Mode.
• The drive is energized with an active Run command and b1-17 = 0 [Run Command at Power Up = Disregard Existing RUN
Command].
B
ALM LED
Illuminates when the drive detects a fault.
Flashes when the drive detects:
• Alarm
• An oPE parameter setting error
• A fault or alarm during Auto-Tuning
The light switches off when the drive is in normal operation. There is no fault or alarm.
C microSD Card Insertion Slot
The insertion point for a microSD card.
D
Function Keys
(F1, F2, F3)
The menu shown on the keypad sets the functions for function keys.
The name of each function is in the lower half of the display window.
E
LO/RE LED
Illuminated: The keypad controls the Run command (LOCAL Mode).
OFF: The control circuit terminal or serial transmission device controls the Run command (REMOTE Mode).
Note:
• LOCAL: Operated using the keypad. Use the keypad to enter Run/Stop commands and the frequency reference command.
• REMOTE: Operated from the control circuit terminal or serial transmission. Use the frequency reference source entered in b1-01
and the Run command source selected in b1-02.
F
LO/RE Selection Key
This key is not used.
Note:
Cannot switch from Local Mode to Remote Mode.
G
STOP Key
Stops drive operation.
Note:
The STOP key has highest priority Push to stop the motor even when a Run command (REMOTE Mode) is active at MFDI
terminals. Set o2-02 = 0 [STOP Key Function Selection = Disabled] to disable the priority in .
H
Left Arrow Key Moves the cursor to the left.
Up Arrow Key/Down
Arrow Key
/
• Scrolls up or down to display the next item or the previous item.
• Selects parameter numbers, and increments or decrements setting values.
Right Arrow Key (RESET)
• Moves the cursor to the right.
• Continues to the next screen.
• Clears drive faults.
ENTER Key
• Enters parameter values and settings.
• Selects menu items to move the user between keypad displays.
• Selects each mode, parameter, and set value.
I
RUN Key Starts the drive in LOCAL mode.
Starts the motor tuning procedure in Auto-Tuning Mode.
J USB Terminal
Uses a USB cable (USB standard 2.0, type A - mini-B) to connect the keypad to a PC.
K RJ-45 Connector
Connects to the drive using an RJ-45 8-pin straight through UTP CAT5e extension cable or keypad connector.
L Clock Battery Cover
Remove it when installing/replacing the clock battery.
Note:
• Refer to “Replace the Keypad’s Battery” for details on the type of battery required and the installation procedure.
• The clock battery is not supplied as accessories.
M
Nameplate
Displays keypad model, lot number, and FLASH number.
Note:
Keypads with FLASH number of 1002 or later can be used. Keypads with FLASH number of 1001 or earlier may not display
messages properly.
