8.9 Limiting Torque

8-71

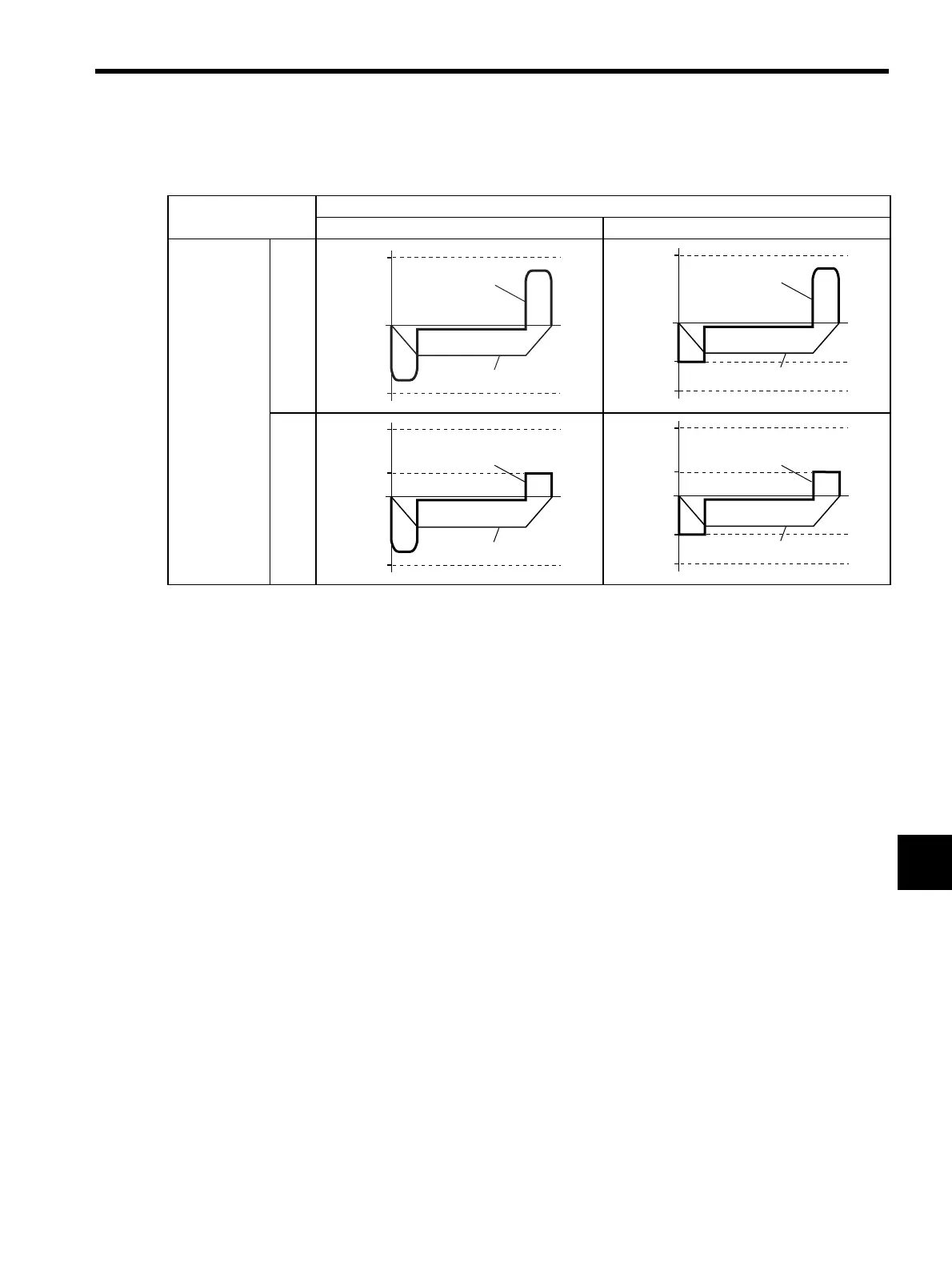

(3) Changes in Output Torque during External Torque Limiting

Example: External torque limit (Pn402, Pn403) set to 800%

Note: In this example, the servomotor rotation direction is Pn000 = n.0 (standard setting, CCW =

forward).

/P-CL (Forward External Torque Limit Input)

High level Low level

/N-CL

(Reverse

External

Torque Limit

Input)

High

level

Low

level

Pn403

Pn402

Torque

Speed

Pn403

Pn404

Pn402

Torque

Speed

Pn403

Pn405

Pn402

Torque

Speed

Pn403

Pn405

Pn404

Pn402

Torque

Speed
