7
Notes on wiring
S Separate the control signal wires ( from terminals TA1 and TA2 ) of the
PG−X2 from the main circuit wires and other power cables.
S Use a shielded wire to connect to the PG. Connect the wire as shown in
Fig. 5 to prevent interference by noise. The wire must be 100m or shorter.
Shielded Sheath Armor
To inverter shielded
sheath terminal TA3
Insulate these parts
with insulating tape.
Never connect.

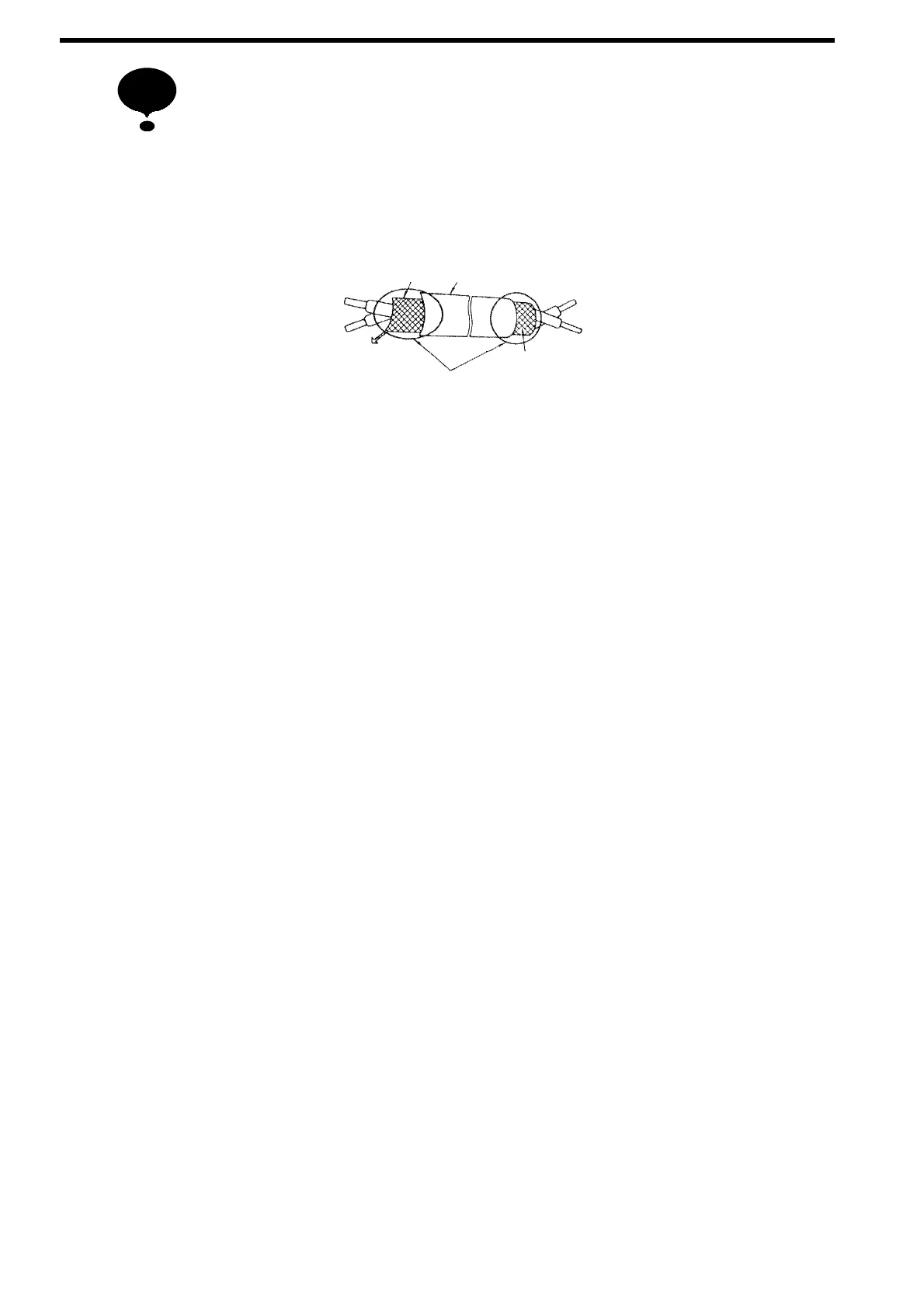

Fig.
5 Shielded wire termination
NOTE
