WHEELS
REAR WHEEL REMOVAL
Please follow the instructions below to remove the rear wheel:
FRONT WHEEL

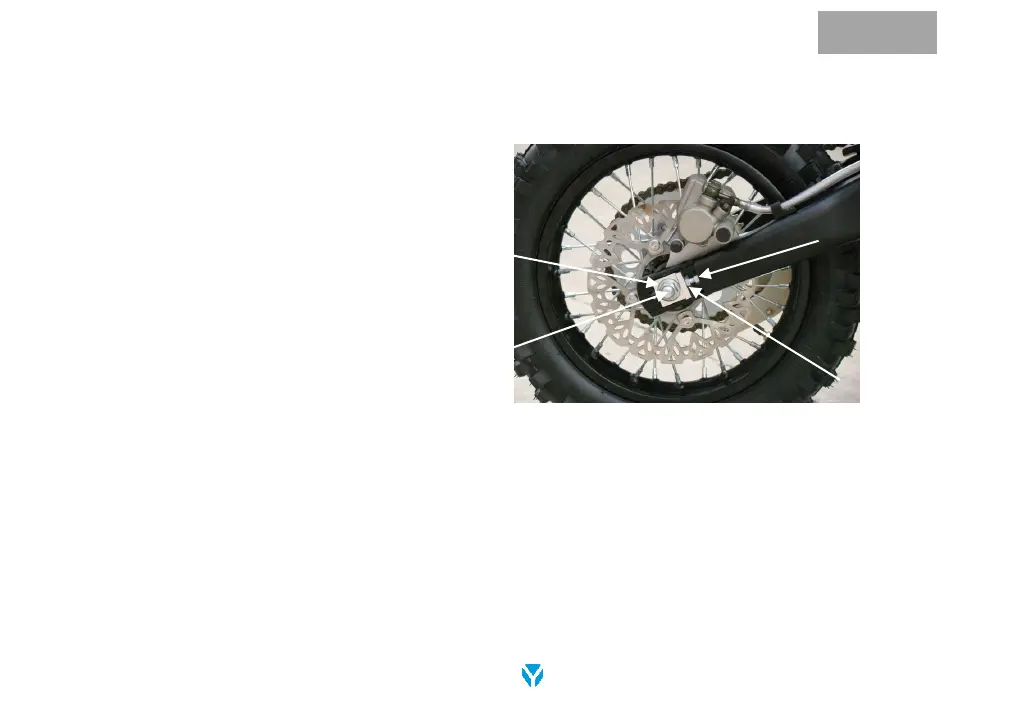

(A) Rear wheel axle
(B) Rear axle nut
(C) Lock nut
(D) Chain-adjuster bolt
Rear Wheel Removal Procedure
1. Place the motorcycle on a centre stand for stability.
2. Unscrew the rear axle nut (B) and remove the rear wheel axle (A).
3. Slide wheel forward and disengage the chain.
4. Pull the rear wheel.
Rear Wheel Installation Guidelines
1. Follow the same procedure as above in reverse order.
2. Spin the rear wheel to ensure proper installation.
3. Press down the rear brake smoothly to ensure proper adjustment. Adjust as needed.
4. Ensure proper drive chain adjustment. Adjust as needed, while backing off the lock nut (C) and
tightening the chain-adjuster bolt (D).
