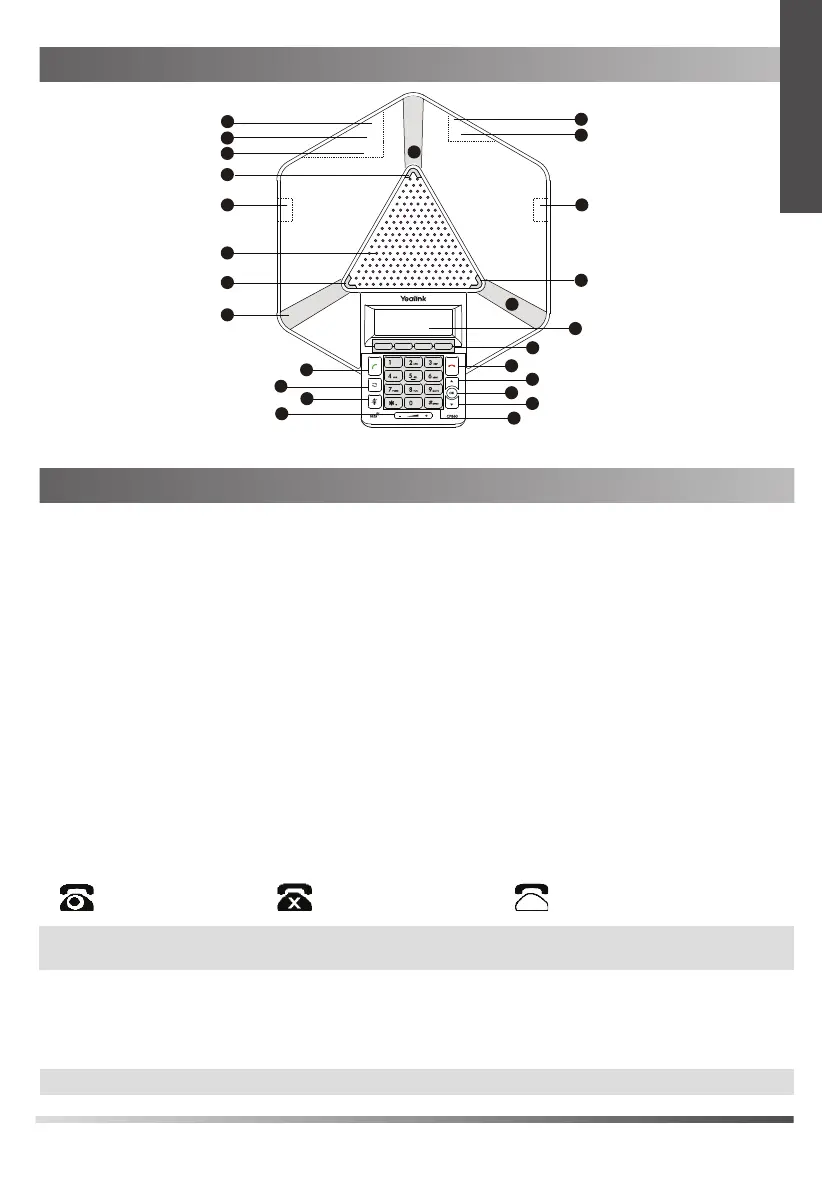

Yealink CP860 - Hardware Component Instructions

3
Hardware Component Instructions
16
17
2
4
5
6
7
8
3
9
12
10
11
1515
13
14
12
1
13
13
12
18
19
20
USB Port
PC/Mobile Port
Security Slot
MIC Port
Speaker
LED Indicator
Microphone
O-hook Key
Redial Key
Mute Key
Volume Key
Keypad
Down Navigation Key
OK Key
Up Navigation Key
On-hook Key
Soft Keys
LCD Screen
DC5V Port
Internet Port
Conguring Your Phone
Conguring via web user interface
Accessing the web user interface:
1. Press the OK key when the phone is idle to obtain the IP address of the phone.
2. Open the web browser on your computer, enter the IP address into the address bar (e.g., "http://192.168.0.10" or "192.168.0.10") and
press Enter.
3. Enter the user name (default: admin) and password (default: admin) in the login page and click Conrm.
Account Settings: Click on Account-> Register
Parameters of the account:
Register Status: It shows the register status of the current account.
Line Active: You can select Enabled/Disabled to enable/disable the account.
Label: It is shown on the LCD screen to identify the account.
Display Name: It is shown as Caller ID when placing a call.
Register Name: It is an authenticated ID for authentication provided by ITSP (required).
User Name: It is provided by ITSP for registration (required).
Password: It is provided by ITSP for registration (required).
Server Host: It is provided by ITSP for registration (required).
Register status icons on the LCD screen:
Registered Register Failed Registering
Note: Check with your system administrator if any error appears during the registration process or if a specic conguration is
required for your registration.
Conguring via phone user interface
Account Settings:
Press the Menu soft key when the phone is idle, select Settings-> Advanced Settings (default password: admin)-> Account to congure the
account.
Note: For more information on account parameters, refer to Conguring via web user interface.
