Yealink SIP-T23G Provisioning Guide

Getting Started
13

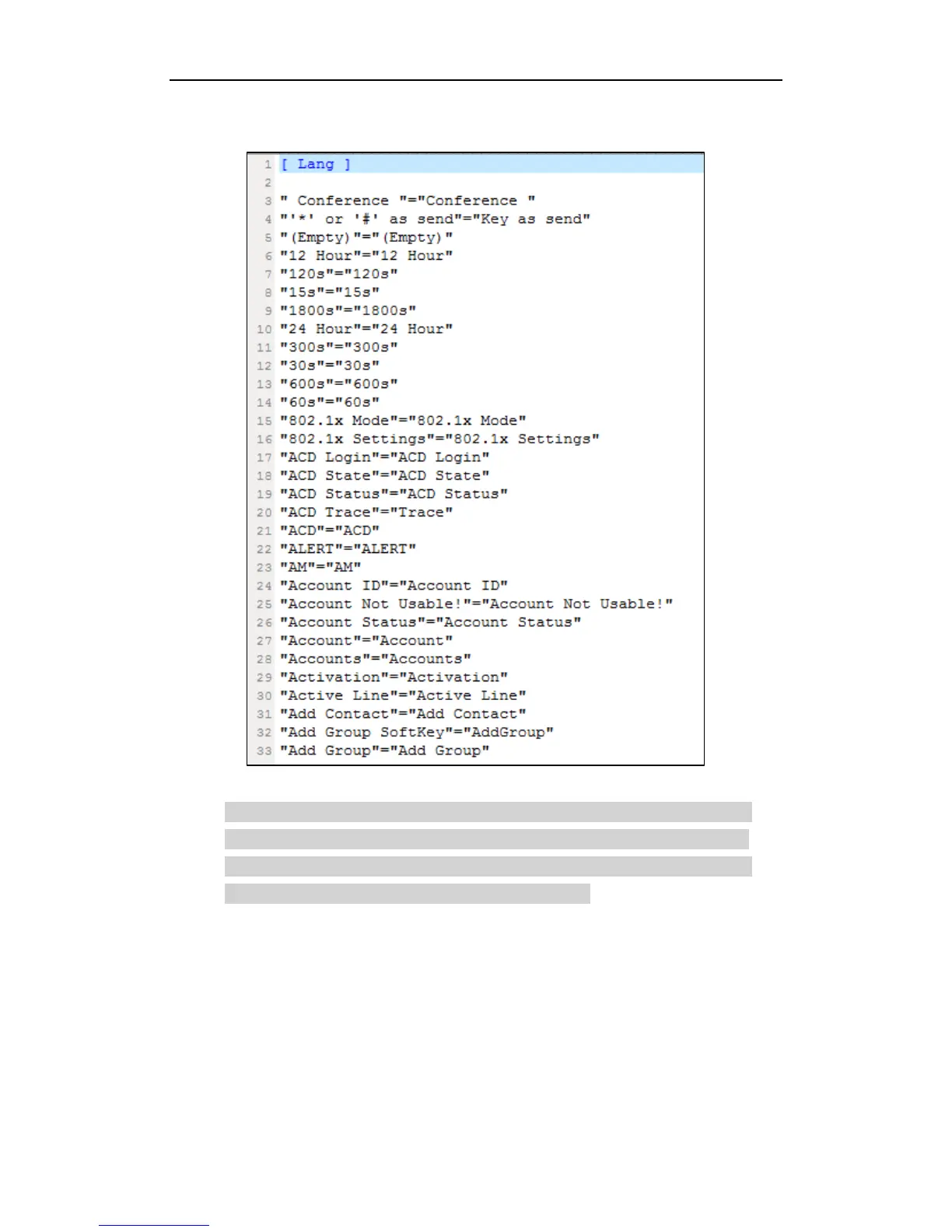

The following figure shows a portion of a lang formatted English language file:
####################################################
## Configure the custom LCD language file ##
####################################################
#Specify the access URL of the custom LCD language file.
gui_lang.url =
If you want to modify the existing language translation for the IP phone user interface,
edit the language translation and then configure the parameter “gui_lang.url =” in the
configuration file, for example:
gui_lang.url = tftp://192.168.1.100/000.GUI.English.lang
During the auto provisioning process, the IP phone connects to the provisioning server
“192.168.1.100”, and downloads the language file “000.GUI.English.lang”. The
language translation will be changed accordingly.

Yealink SIP-T23G Specifications

General

Backlight	Yes
Voice codecs	G.711a, G.722.2, G.726, G.729ab, iLBC
Volume control	Digital
Handset type	Wired handset
Product type	IP Phone
Product color	Black, Silver
Display resolution	132 x 64 pixels
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	3
Networking standards	IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af
Ethernet LAN (RJ-45) ports	2
AC adapter input voltage	100 - 240 V
AC adapter output current	0.6 A
AC adapter output voltage	5 V
Power consumption (typical)	1.56 W
Number of handles included	- pc(s)
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	188 mm
Width	209 mm
Height	150 mm
