User Guide for the SIP-T23P/G IP Phone
134

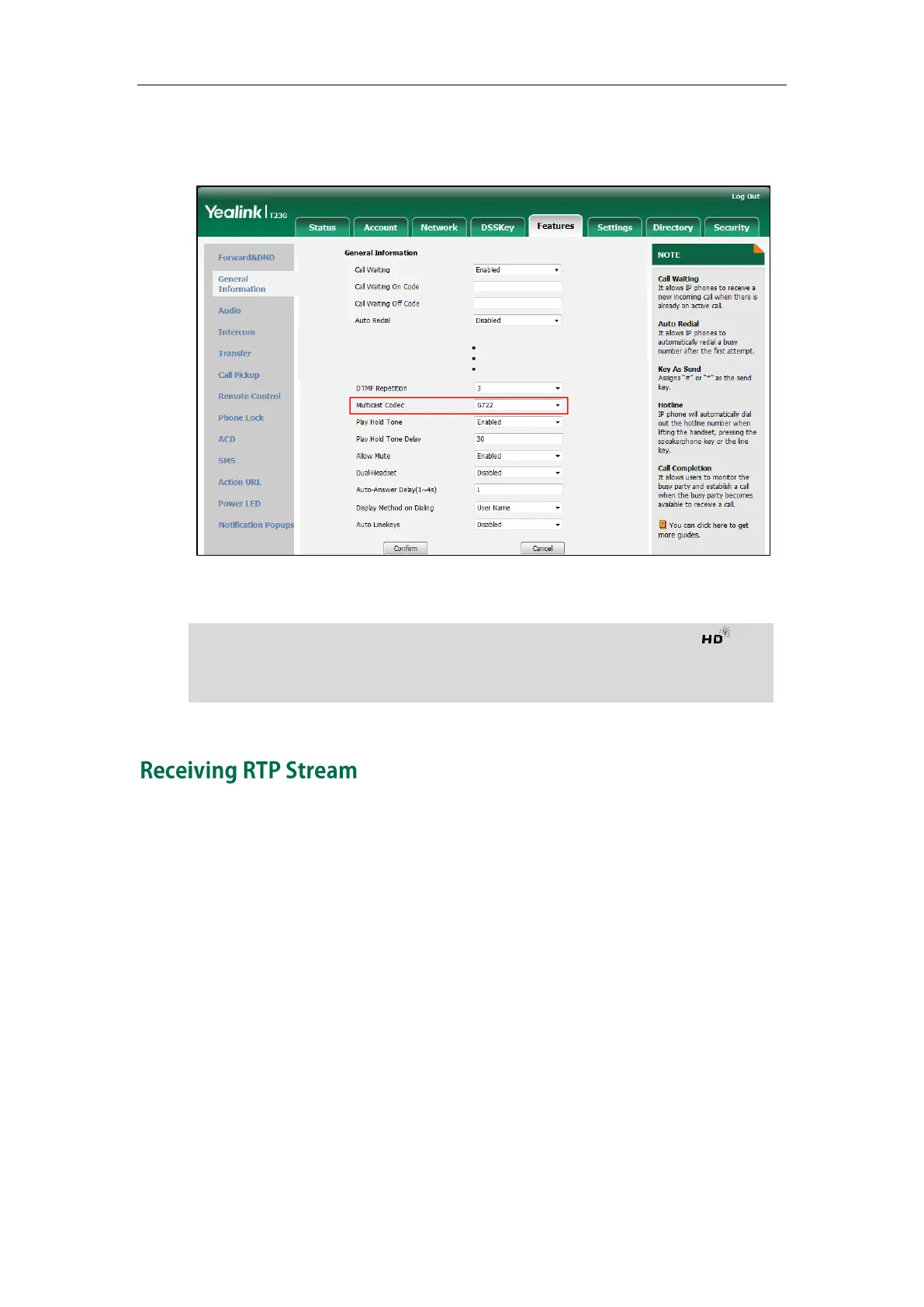

2. Select the desired codec from the pull-down list of Multicast Codec.
The default codec is G722.
3. Click Confirm to accept the change.
Note
You can configure the phone to receive a Real Time Transport Protocol (RTP) stream from
the pre-configured multicast address(es) without involving SIP signaling. You can
specify up to 10 multicast addresses that the phone listens to on the network.
How the phone handles incoming multicast paging calls depends on Paging Barge and
Paging Priority Active parameters configured via web user interface.
Paging Barge
The paging barge parameter defines the priority of the voice call in progress. If the
priority of an incoming multicast paging call is lower than that of the active call, it will be
ignored automatically. If Disabled is selected from the pull-down list of Paging Barge,
the voice call in progress will take precedence over all incoming multicast paging calls.
Valid values in the Paging Barge field:
 1 to 10: Define the priority of the active call, 1 with the highest priority, 10 with the
lowest.
 Disabled: The voice call in progress will take precedence over all incoming paging
If G722 codec is used for multicast paging, the LCD screen will display the icon to
indicate that it is providing high definition voice.
Default codec for multicast paging is configurable via web user interface only.

Yealink SIP-T23P Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Wall mountable	Yes
Display resolution	132 x 64 pixels
Ethernet LAN (RJ-45) ports	2
Security algorithms	HTTPS
Ethernet LAN data rates	10, 100 Mbit/s
Voice codecs	CNG, G.711a, G.722, G.726, G.729ab, VAD
Phonebook capacity	1000 entries
