Hardware Interface Instructions

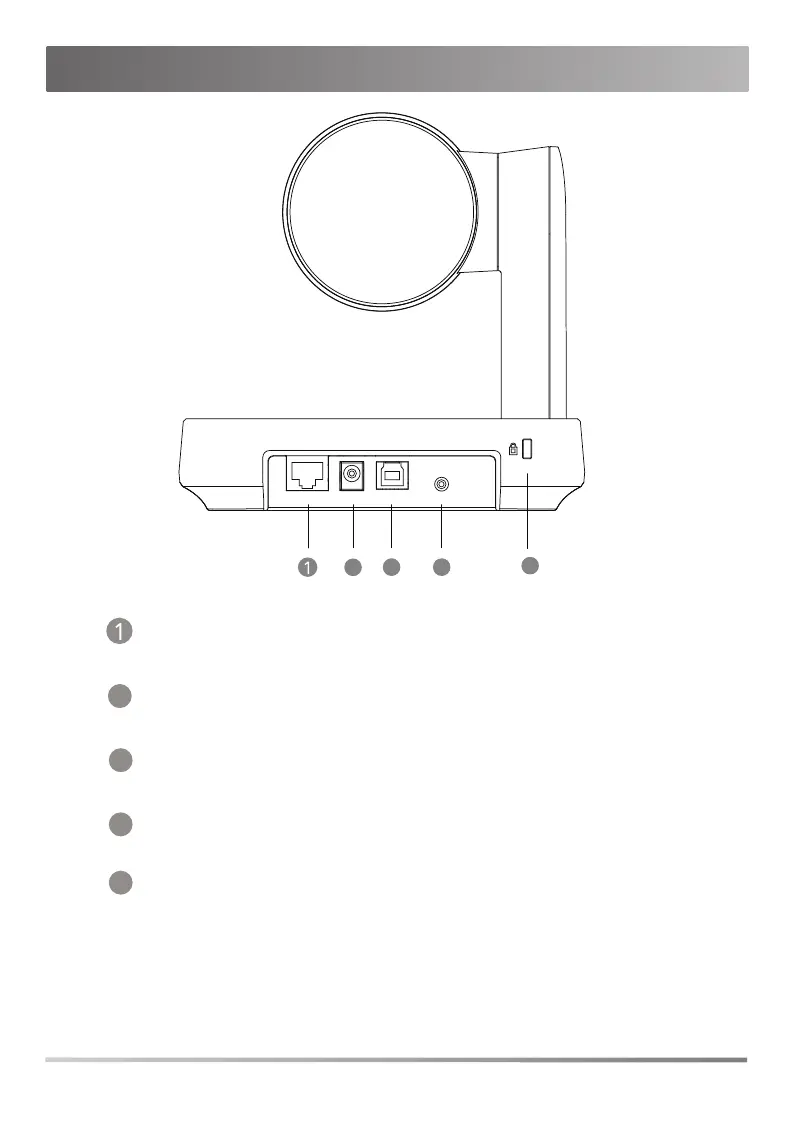

VCHDC48V Video out Line out

 

2
3
4
5
DC48V: connect to the power adapter.
Security slot: connect a universal security cable to the UVC84 so that you
can lock the UVC84 down.
Line Out: connect to an audio output device using an audio cable (3.5mm).
Video Out: connect to a PC as video output.
In MVC system, connect to audio device (for example
:
VCM34).
In video conference system, connect to the endpoint (for example:
MeetingEye 800).
