Yealink UVC84 - UVC84 Connection and LED Indicators; Connecting the UVC84 to a PC; Connecting to Video Conference System; LED Indicator Status Meanings

5
VCH3 VCH2 VCH1
Display3
Display2 Display1
Internet
5V
DC 48V
Line in
Line out Video in
HDMI
PC
PoE
1$
VCH51


7$)
UVC84 UVC84 UVC84 UVC84
CTP20
7$)%$7 7JEFPPVU -JOFPVU
LED Indicator Instructions
LED indicators on the UVC84:
LED Status Description
Off The UVC84 is powered off.
Solid green The UVC84 is active.
Solid red The UVC84 is in sleep mode.
Flashing yellow The UVC84 is upgrading rmware.
Flashing red The UVC84 is in recovery mode.

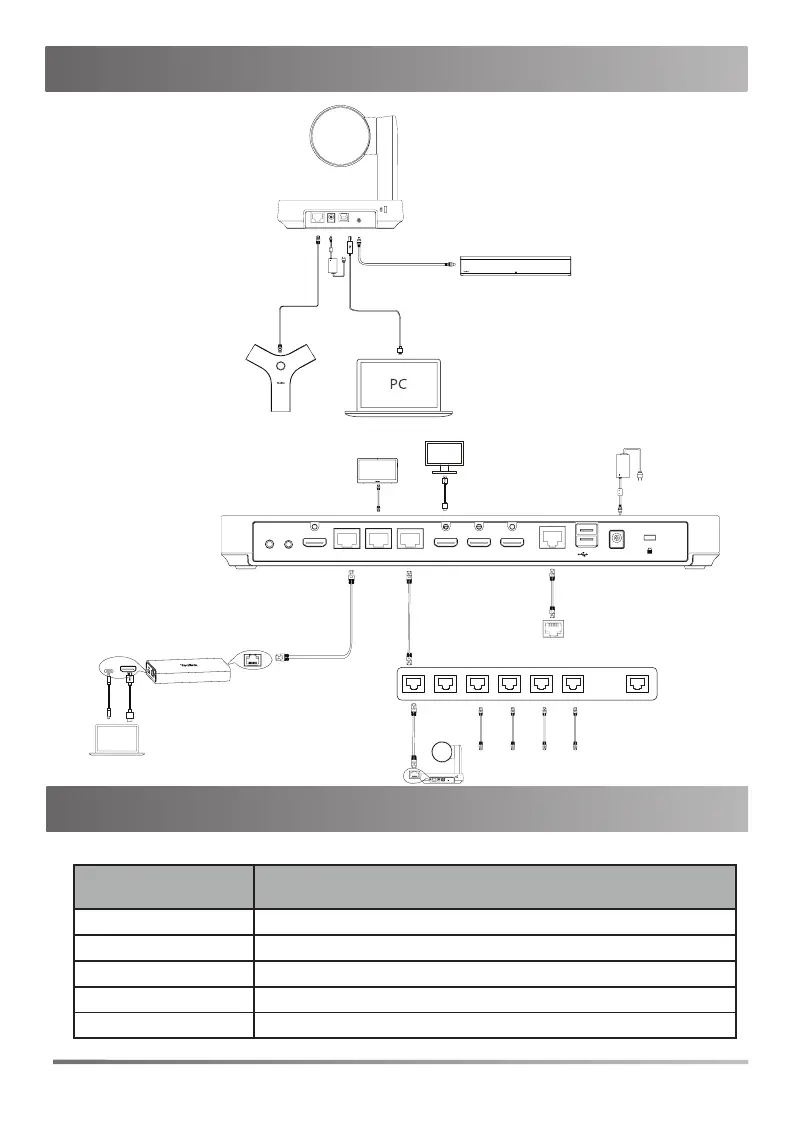

• Connect to the video conference system
:
MeetingEye 800
UVC84 Connection
7$) %$7 7JEFPPVU -JOFPVU
USB
cable
Cat5e
Microphone
Sounbar
• Connect to PC:
0.6m USB
Type-C Cable
0.6m
HDMI Cable
or
Ethernet Cable
Ethernet Cable
Internet
IEEE 802.3af compliant
PoE Switch
Display×3
