Yealink VP530 User Manual

User Guide for VP530 IP Video Phone
12

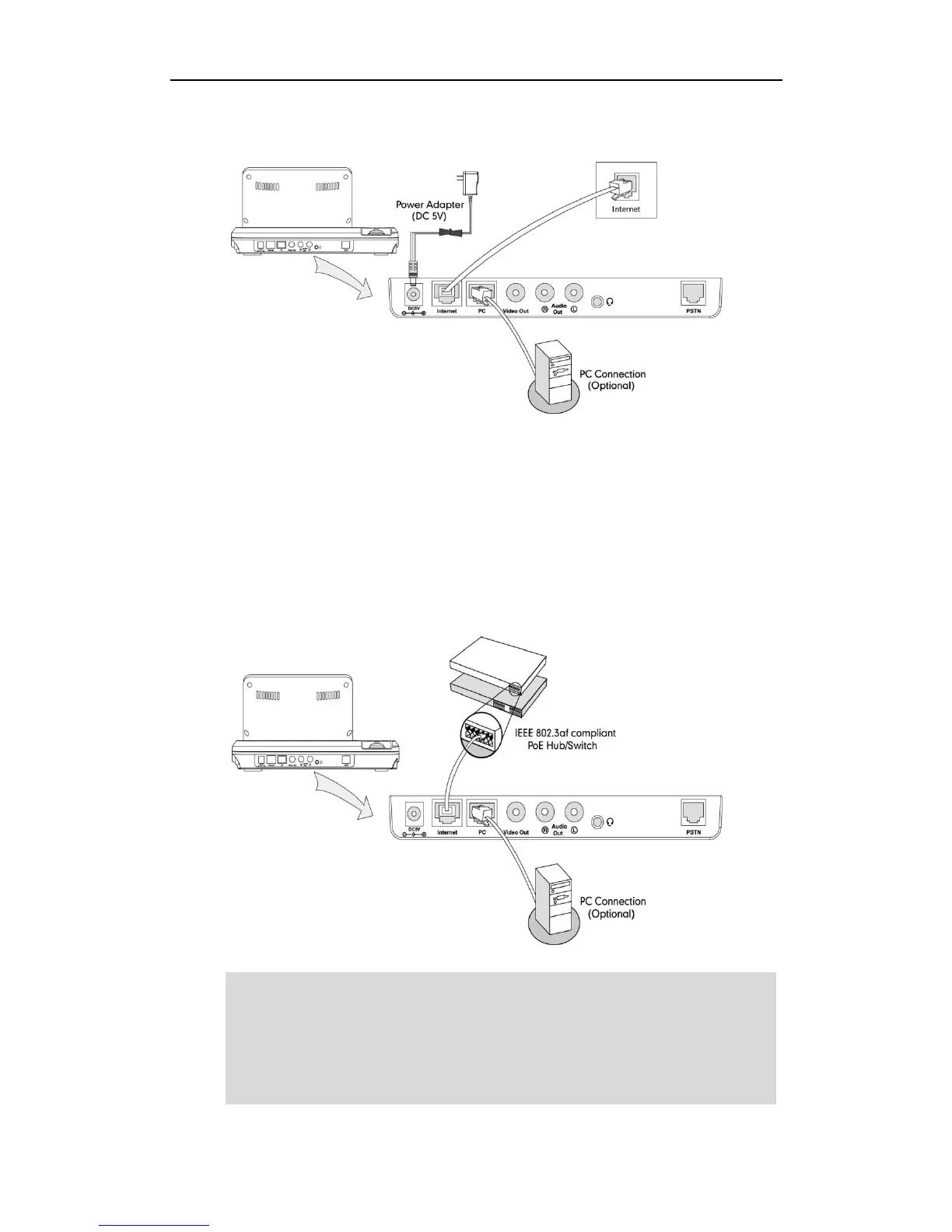

2. Connect the supplied Ethernet cable between the Internet port on the phone and
the Internet port in your network or the switch/hub device port.
Power over Ethernet
Using a regular Ethernet cable, the VP530 IP video phone can be powered from a PoE
(IEEE 802.3af) compliant switch or hub.
To connect the PoE:
1. Connect the Ethernet cable between the Internet port on the phone and an
available port on the in-line power switch/hub.
Note
If in-line power is provided, you don’t need to connect the AC adapter. Make sure the
Ethernet cable and switch/hub is PoE compliant.
The phone can also share the network with other network device such as a PC (personal
computer). It is an optional connection.
Important! Do not unplug or remove the power to the phone while it is updating firmware
and configurations.

Yealink VP530 Specifications

General

Keypad number of keys	27
Headset connectivity	2.5 mm
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Speakerphone	Yes
Voice codecs	G.711, G.722, G.723.1
Display resolution	800 x 480 pixels
Lines quantity	- lines
Phonebook capacity	- entries
Number of VoIP accounts	4
Video codecs	H.264, H.263
Video capturing speed	30 fps
Video capture resolution (max)	720 x 480 pixels
Bluetooth	No
Security algorithms	HTTPS, SSL/TLS
Front camera resolution (numeric)	2 MP
Input frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	5 V
Power consumption (typical)	10 W
Operating relative humidity (H-H)	10 - 95 %
Compatible memory cards	SD
Compliance industry standards	IEEE 802.3af
Handset type	Wired handset
Product type	IP Phone
Product color	Black, Silver
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	89 mm
Width	286 mm
Height	45 mm
Weight	1200 g
