Installation_Guide | 1 - Installation Guide | 14

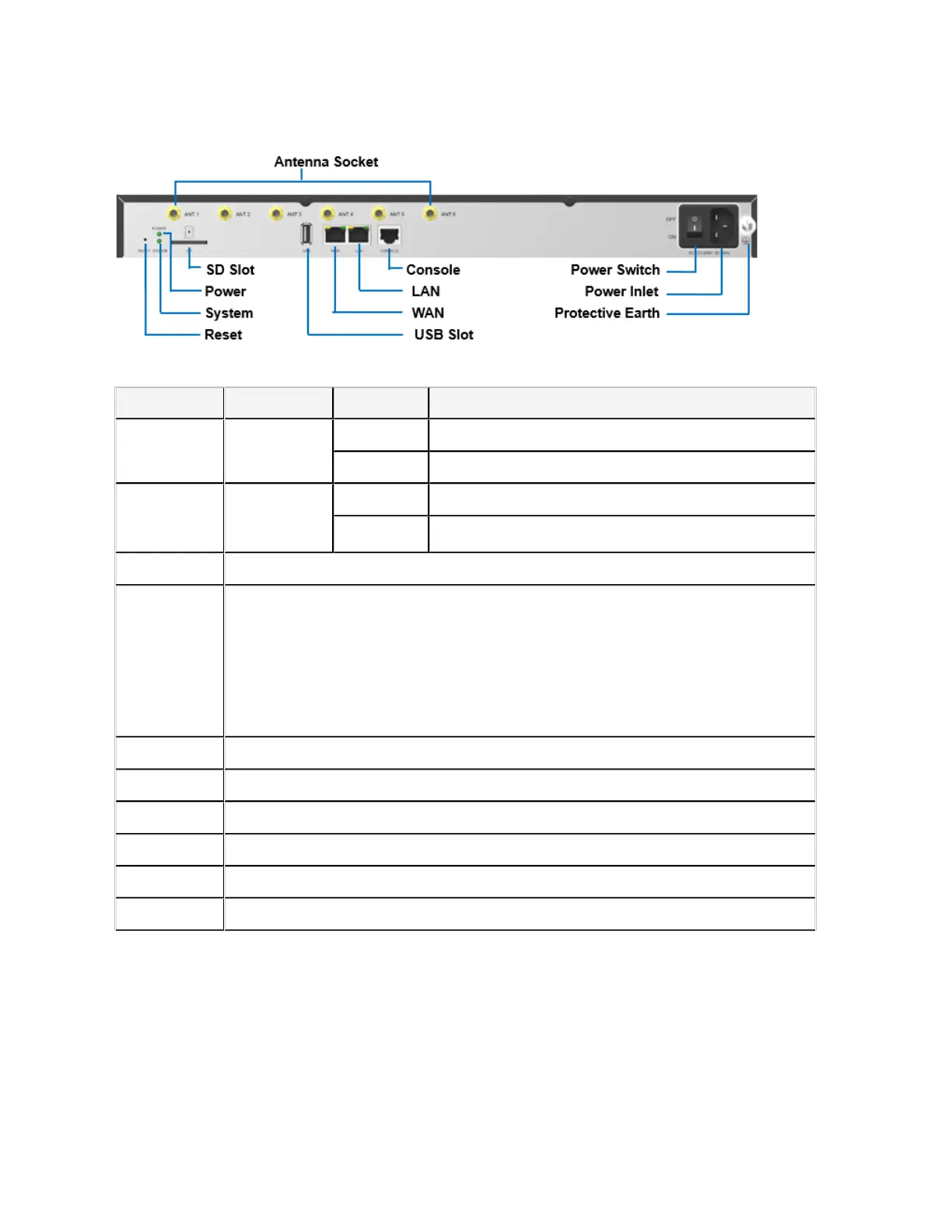

Rear Panel
Table 10: Descriptions of S300 Rear Panel
LED Indication Status Description
On The power is switched on.POWER Power status
Off The power is switched off.
Blinking The system is running properly.SYSTEM System
status
Static/Off The system goes wrong.
Port Description
WAN/LAN
Yeastar S300 provides two 10/100/1000Mbps adaptive RJ45 Ethernet ports, and
supports 3 Ethernet modes. The default mode is “Single”.
• Single: LAN port will be used for uplink connection. WAN port is disabled.
• Bridge: LAN port will be used for uplink connection. WAN port will be used as
bridge for PC connection.
• Dual: Both LAN and WAN ports can be used for uplink connection.
SD Insert SD card to store auto recording files.
Reset button Press and hold for 10 seconds to restore the factory defaults.
USB Insert USB device to store auto recording files.
Console Connect RS232 line to debug the system.
Power Switch Press this button to switch on/off the device.
Power Inlet Connect the supplied power supply to the port.
