Yeastar Technology S100 Installation Guide

Installation_Guide | 1 - Installation Guide | 33
8.

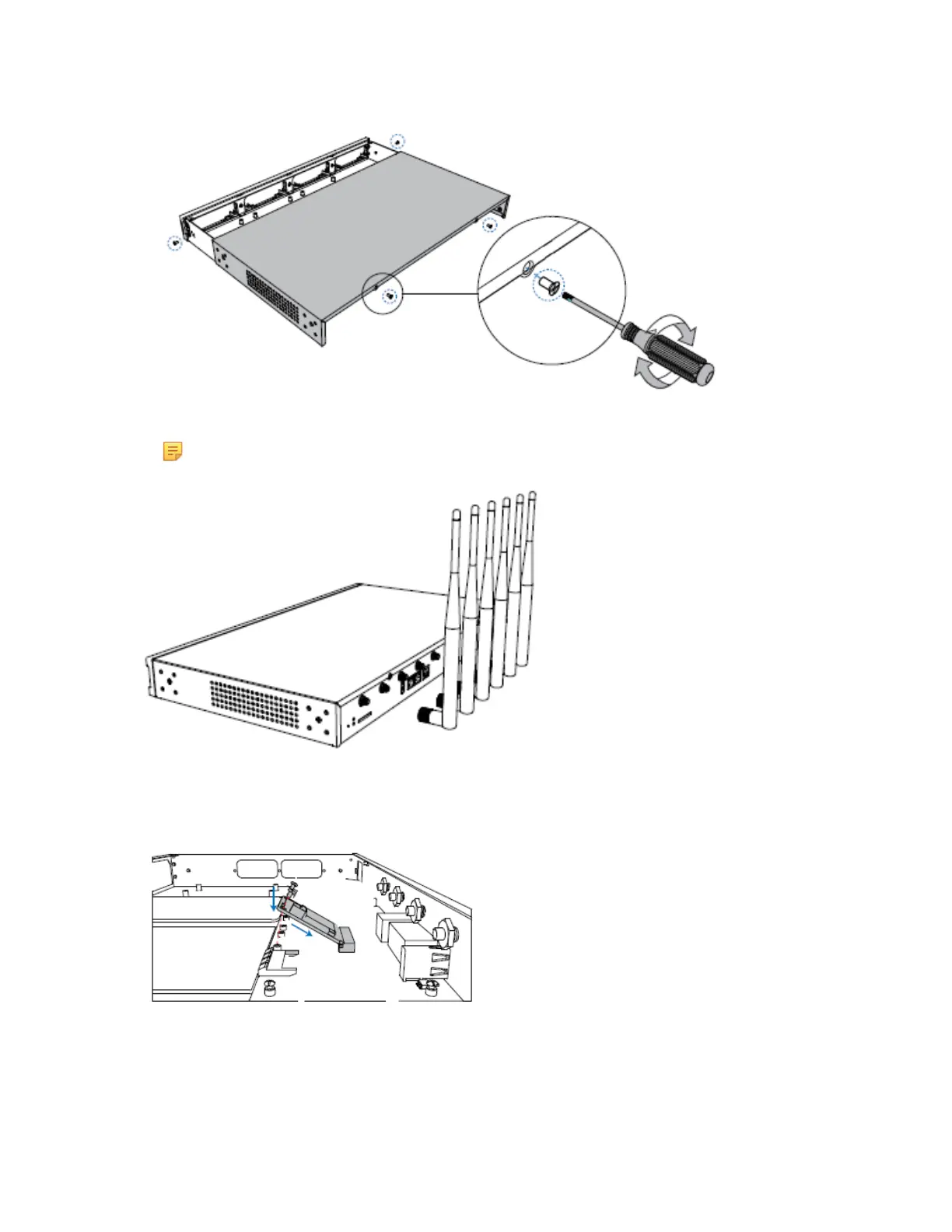

Rotate the antenna into the Antenna Socket.
Note: Skip this step if no GSM/3G/4G module installed.
Install DSP Module
1. Open the device upper cover and insert the DSP module (D30) into the D-Slot from a tilt angle and then press
it down.
2.
Lock the screws to fix the D30 module board.

Yeastar Technology S100 Specifications

General

Brand	Yeastar Technology
Model	S100
Category	PBX
Language	English
