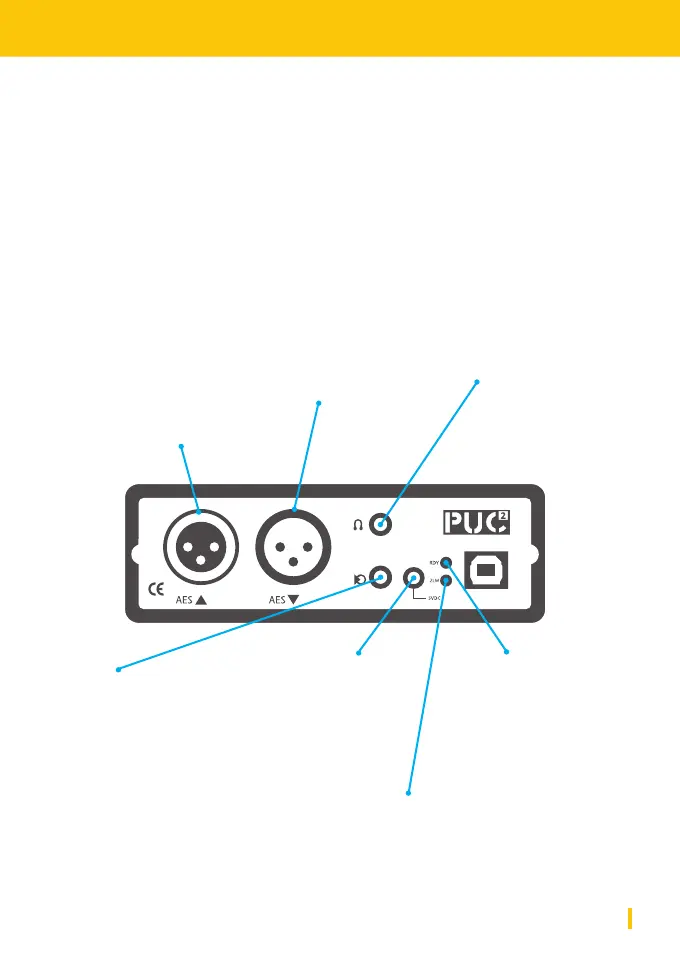

PUC2 Front Panel
AES Input
As soon as a valid AES-3
signal is detected, it is
prioritized over other
input signals and is
switched on. An AES-3
signal is also detected
while no modulation is
present. The audio signal
is converted to a USB
audio stream and is made
available at the USB socket.
AES Output
The AES output is
always active. It
provides the audio
output signal from
the USB stream. The
sample rate is always
determined by the
respective application
of the host computer.
ZLM LED
A red LED indicates Zero
Latency Monitoring.
See page 11.
ZLM Jack
A switch can be
connected to this jack
with a 3.5mm phone
plug to activate ZLM
(Zero Latency
Monitoring).
See page 11.
AUX Output
An analog monitor signal
is available via the 3.5mm
jack socket. You can us it
for headphones. It has a
xed level.
*Please note that PUC2
Lite does not have an AUX
output.
RDY LED
Green indicates
that a USB
connection has
been established
successfully. Red
lights up in power
saving mode or in
case of error.
