Block Diagram PUC2 Mic LEA

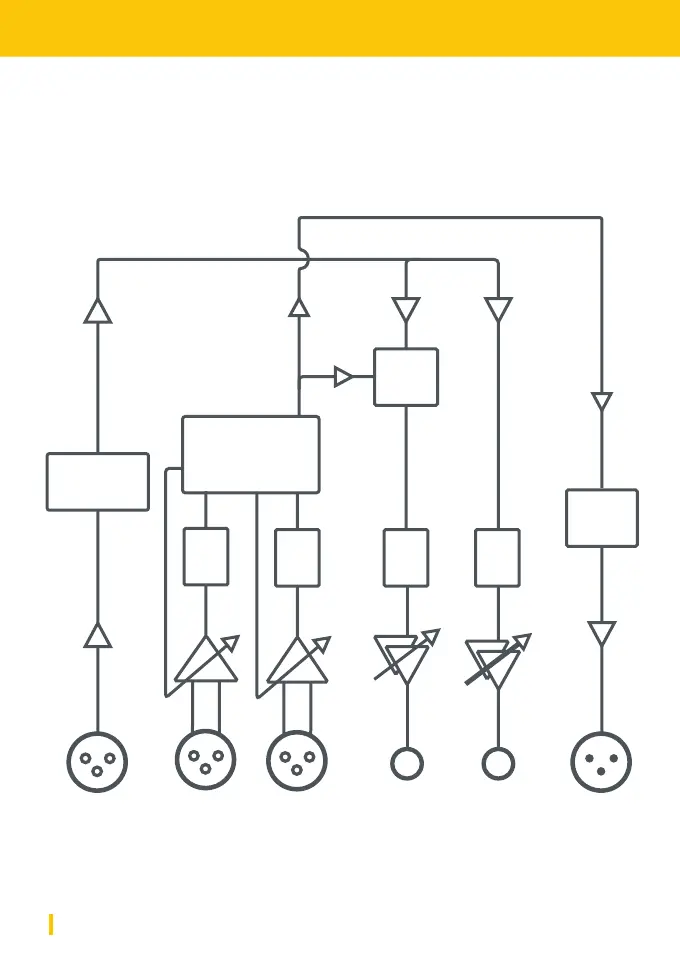

This block diagram of PUC2 Mic LEA gives a detailed overview of PUC2 Mic
LEA‘s internals in standalone (non USB) mode.
*Please note that Digital In and Digital Out switched places.
LEA Engine
Level Enhanced
Automation
A/D
Conv
monitor
mix
1 2
Speaker Out
H/P Out
Mic Inputs
Analog Outputs
DAC DAC
A/D
Conv
AES3
Input
Decoder
AES3
Digital In
AES3
Output
Decoder
AES3/SPDIF
Digital Out
LEA Engine
Level Energy
Arbitration
